Pond

Here it is. My northern-most hugelkulture bed was refactored into a pond. Here’s the before pic:

Here’s what it looks like after.

Here’s a video of my pond more recently with my aquaponics bed:

I didn’t want to import rocks and was curious what I could use around my area, so I experimented with burlap & with different parts of varying types of palms: cabbage, golden, royal, saw (frond, stem, sheath).   I settled on saw palmetto for the first couple years.

I also decided not to use a pump for the first year, the pond was populated with water hyacinth for nutrient removal, hornwort for oxygen, and guppies for mosquito control. I’ve enhanced the pond over time with a solar pump that moves water around during the day (supplementing oxygen) and tops off a rain barrel which drains into a garden bed over night (supplementing nutrient removal).

I wish I could post in-progress pics, but my phone died before I had a chance to back them up. The following are pictures starting from just after I dug the hole and put the liner in:

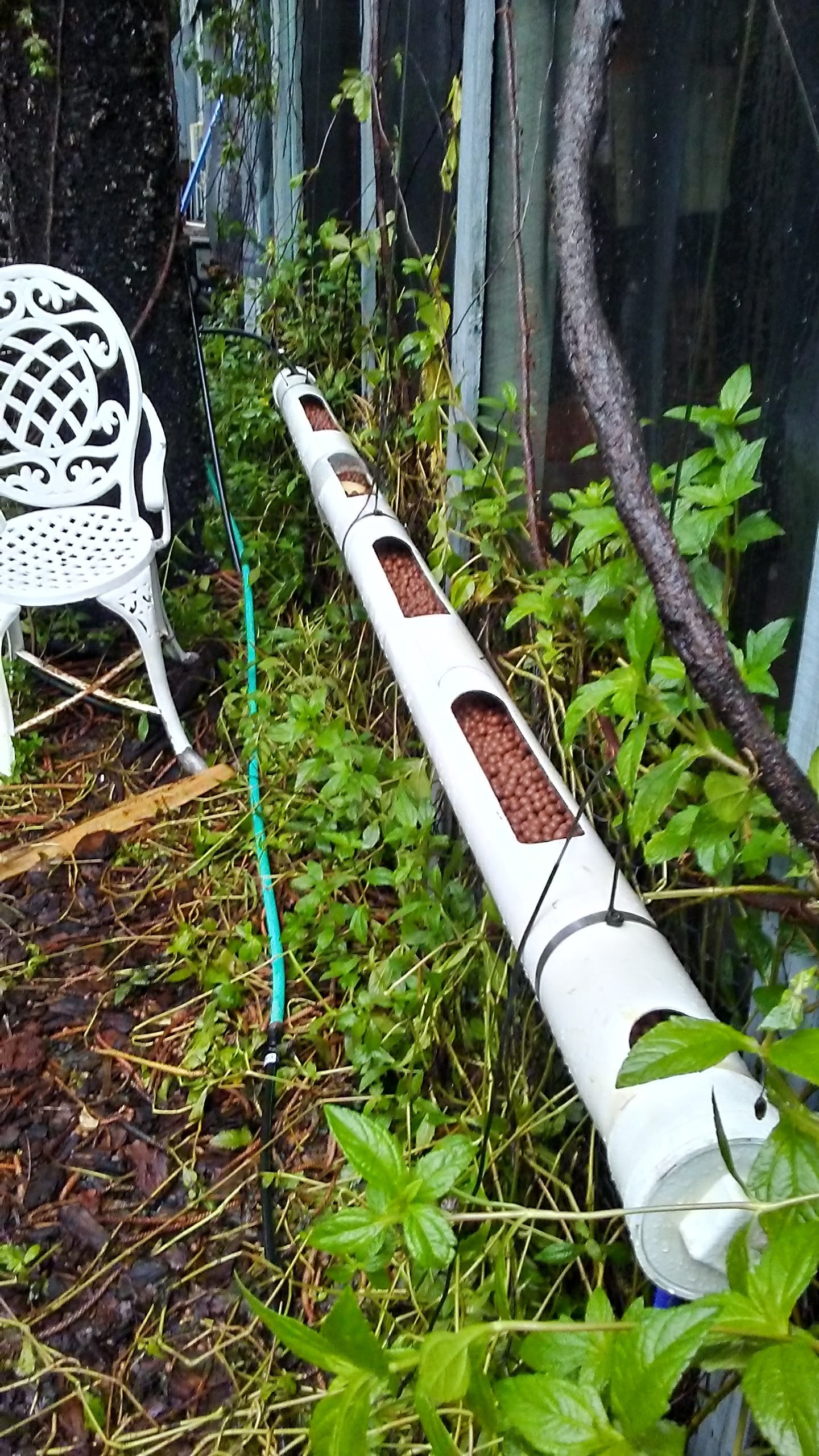

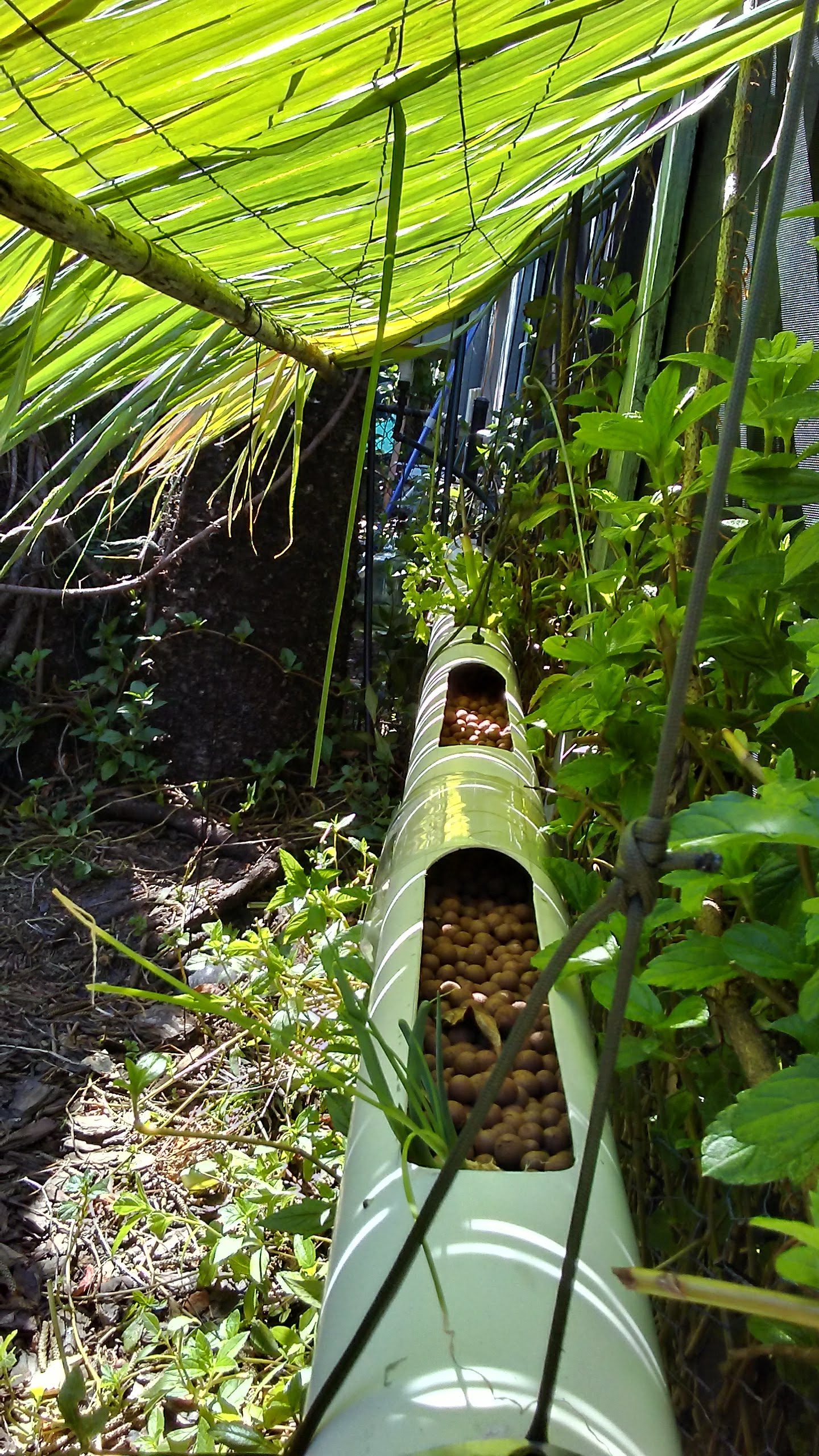

Playing with aquaponics: This little raft worked well for sweet potato and rooting onions but my the romaine grew for a while then got root rot. I now have an ebb and flow bed I’m trying. You can find that here:
Water powered timer for grow bed

Within a half year, water hyacinth had completely covered the pond. I net out overgrowth and mulch/layer on them on the beds surrounding the pond.

After a couple years the thatch disintegrated and I started using banana stem. It’s a easier to tuck under the liner because it’s flexible (after you roll it) and it’s more locally more renewable for me too; since banana is growing next to my pond :)

Swiveling Solar Panel

I sized my solar panel to my pond pump. The pump is a brushless motor pump which uses 54 watts max and can pump a head of 33 feet. My solar panel is 100 watts and runs the pump well (even a little on cloudy days) and better yet when the panel is facing the sun.

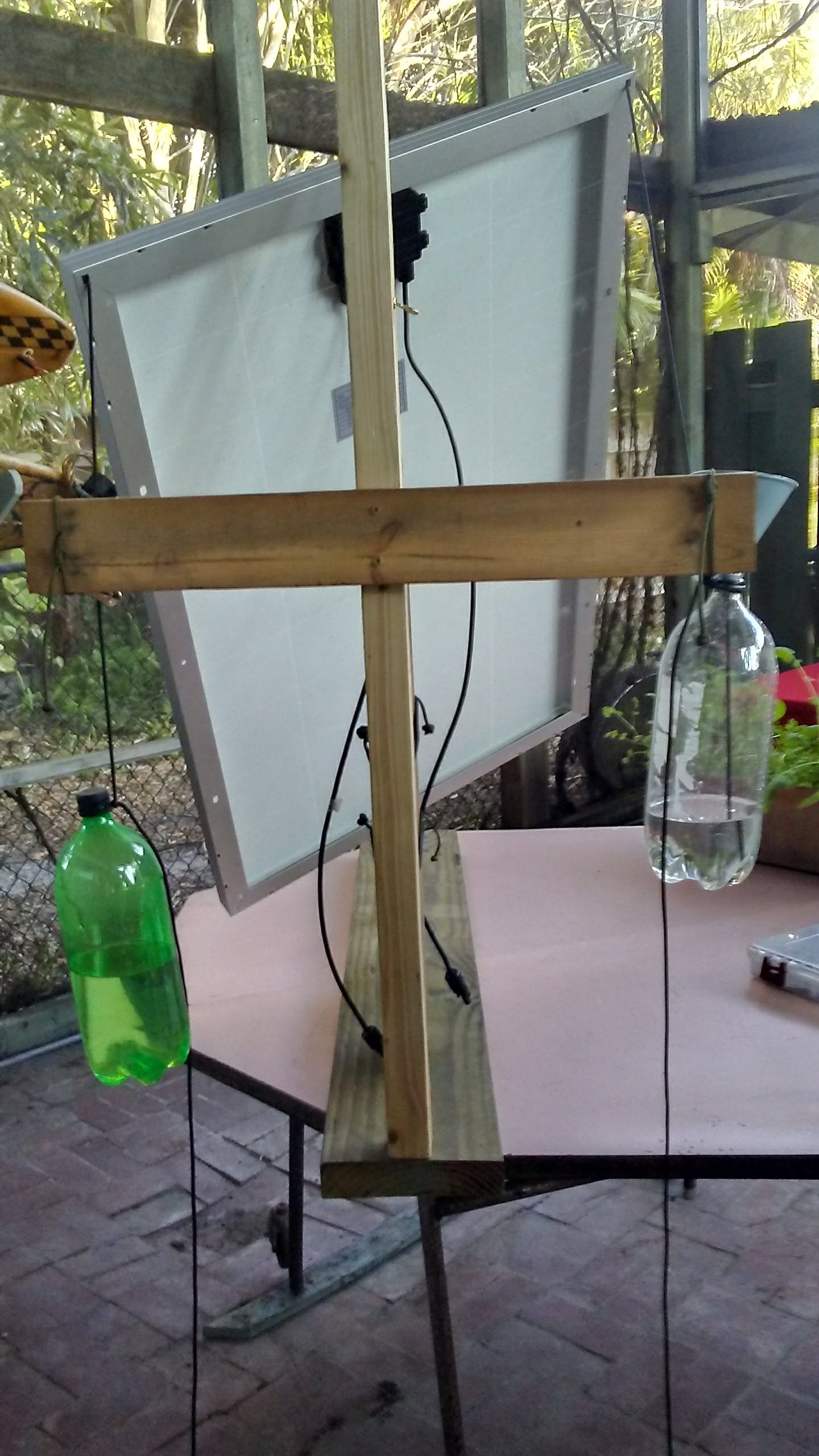

Initially I wanted to track the sun and I was hoping to make a water/drip powered solar tracker, but I ran into issues at certain angles with my design. Here’s some pictures of that:

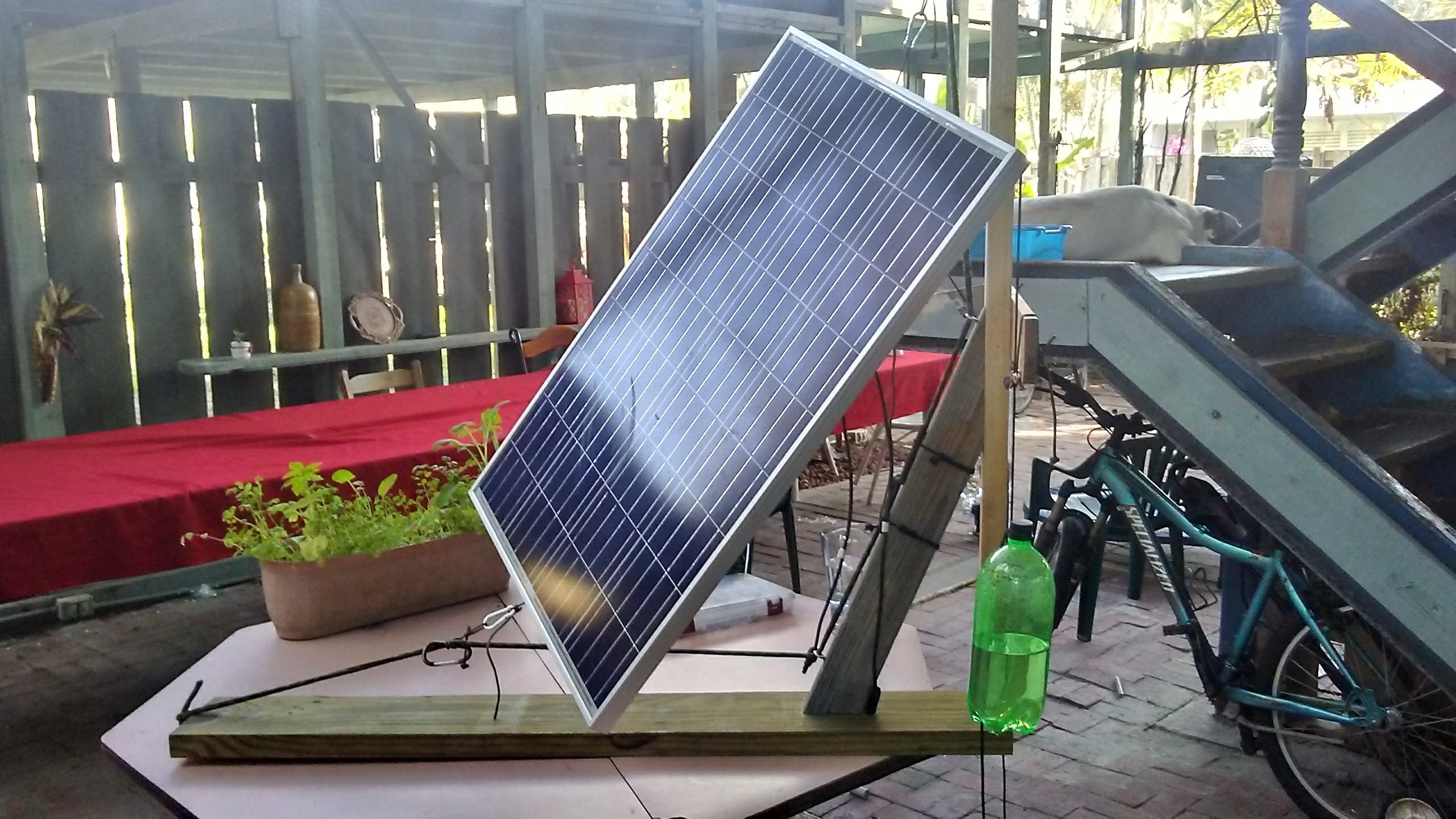

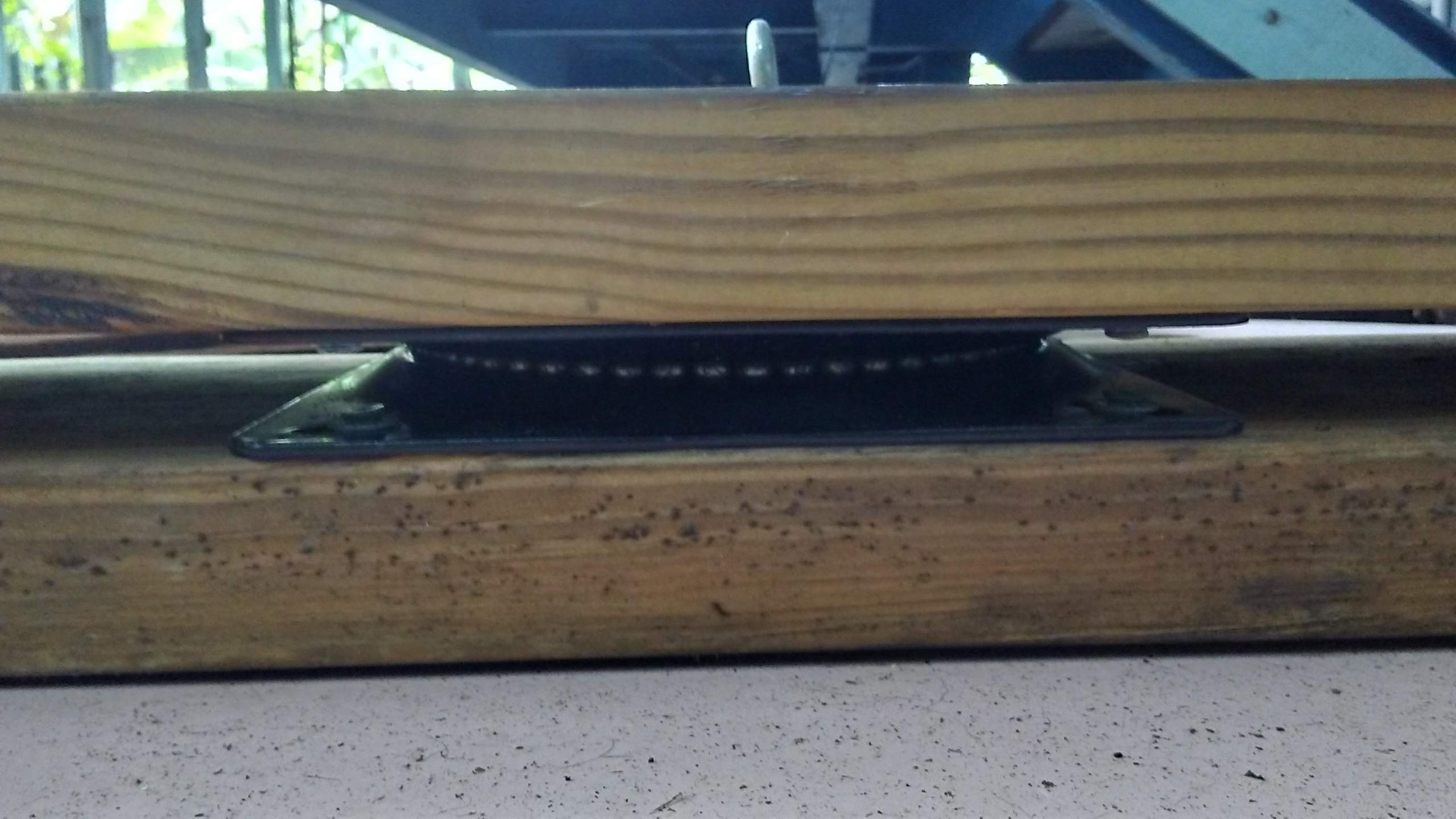

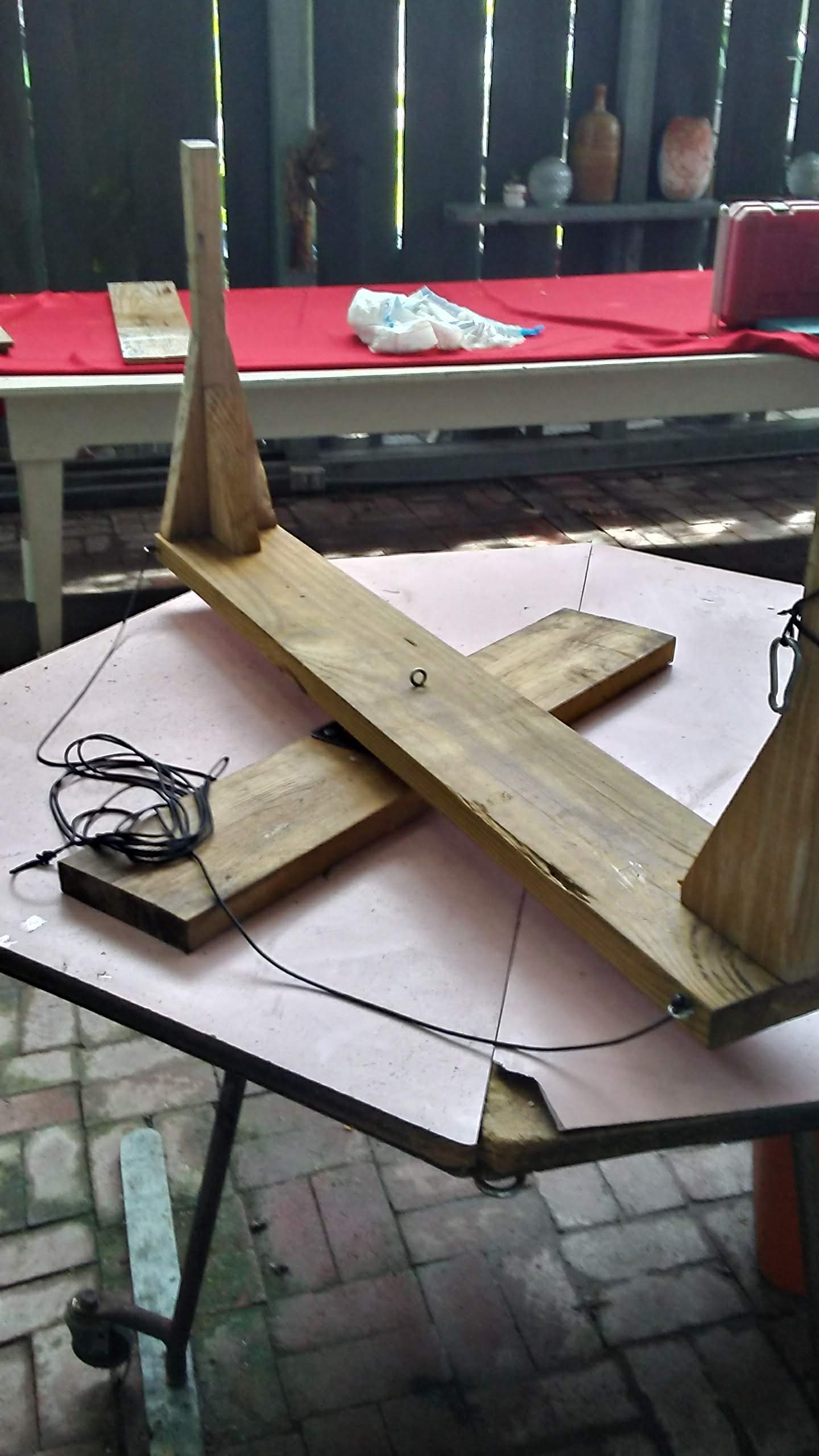

I abandoned the above project for something I can just turn by hand. Here it is:

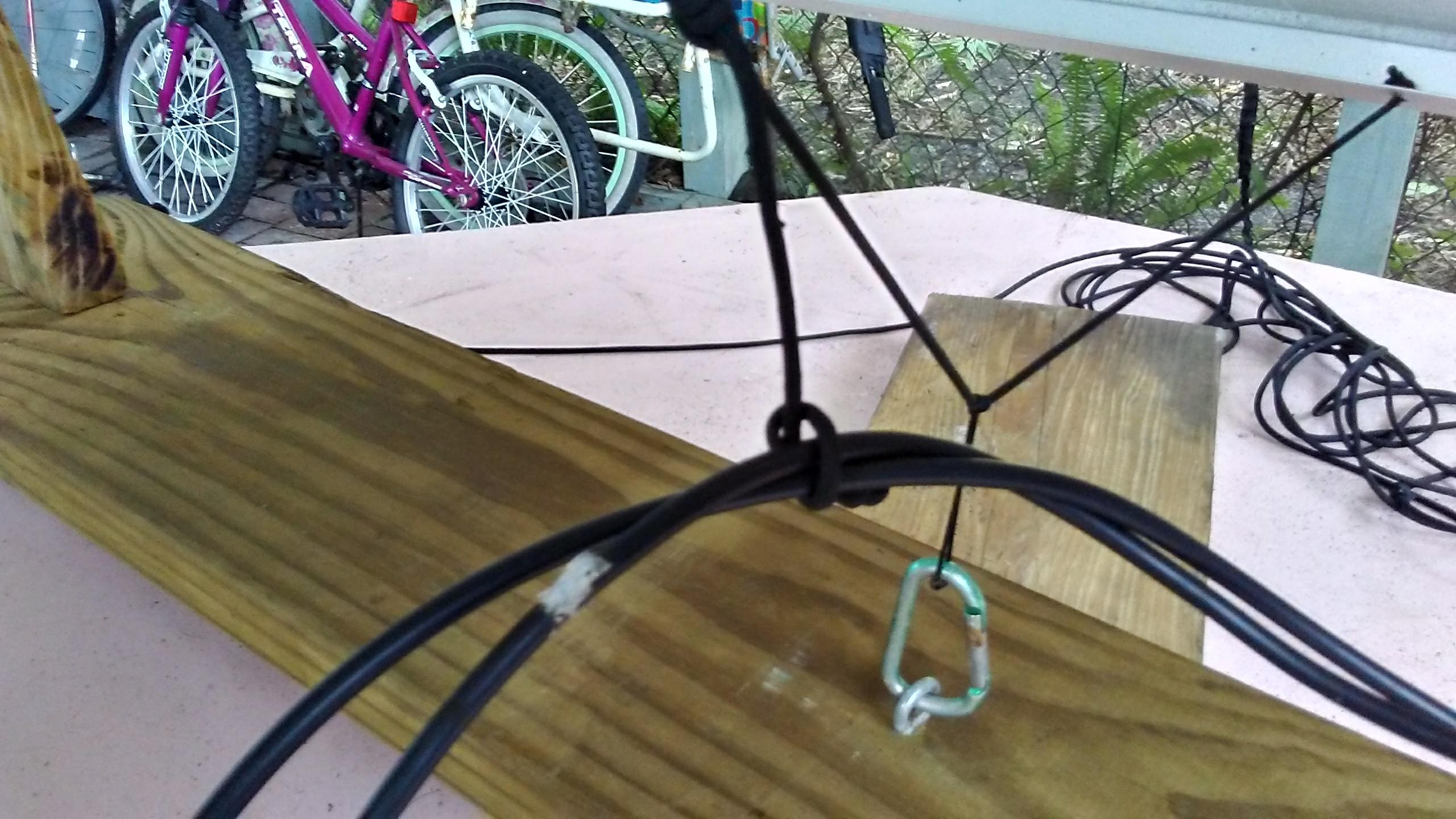

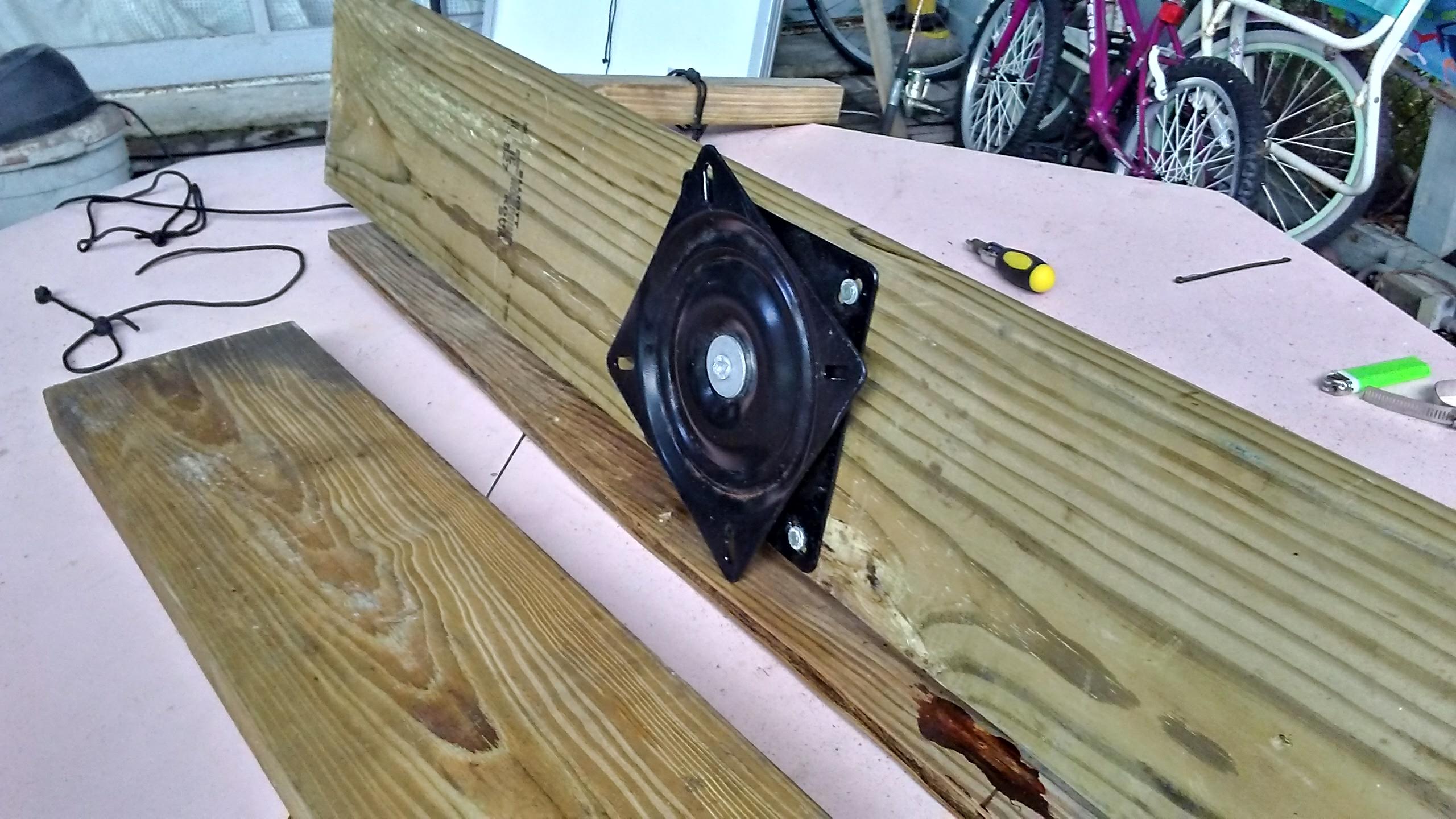

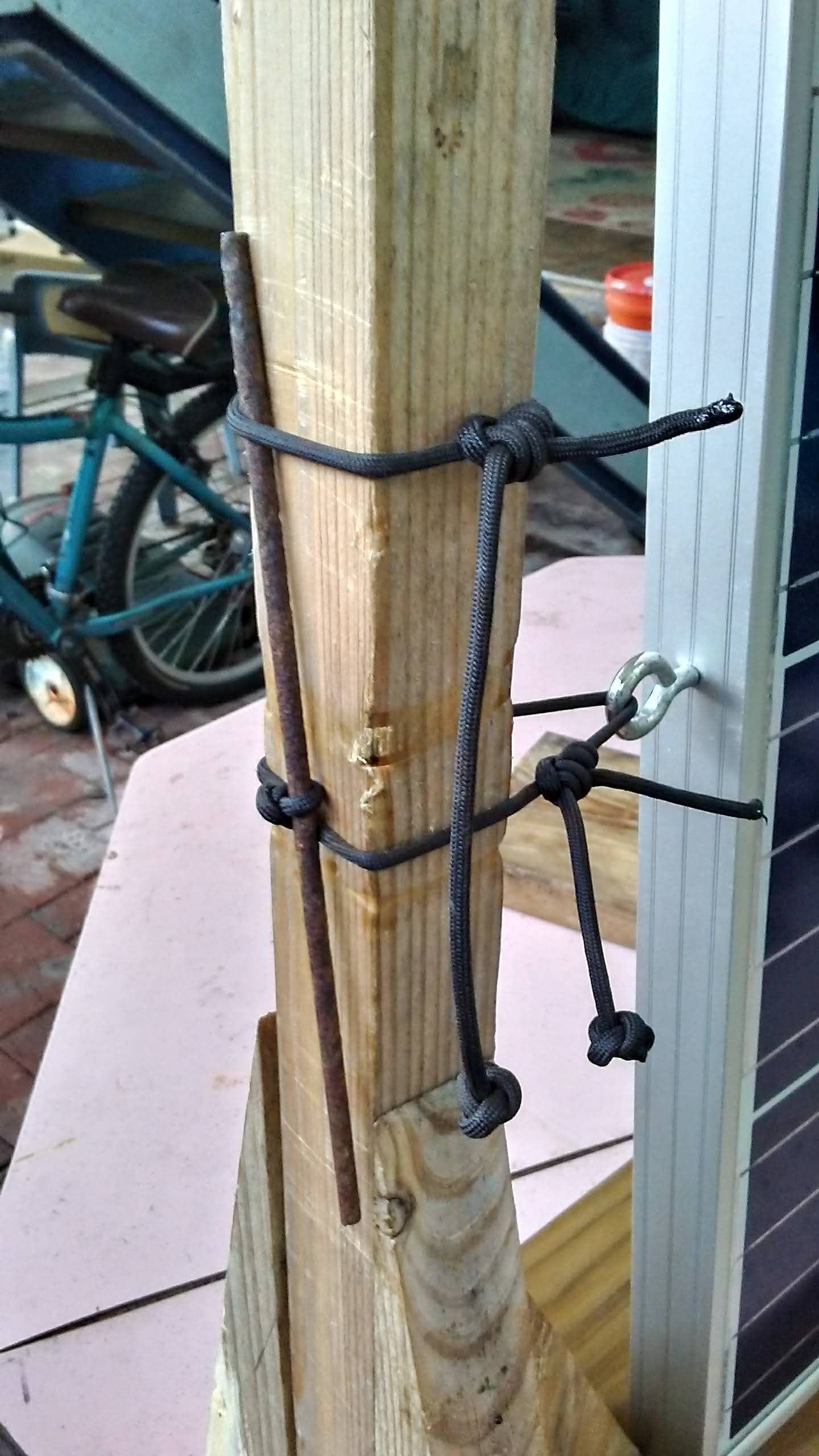

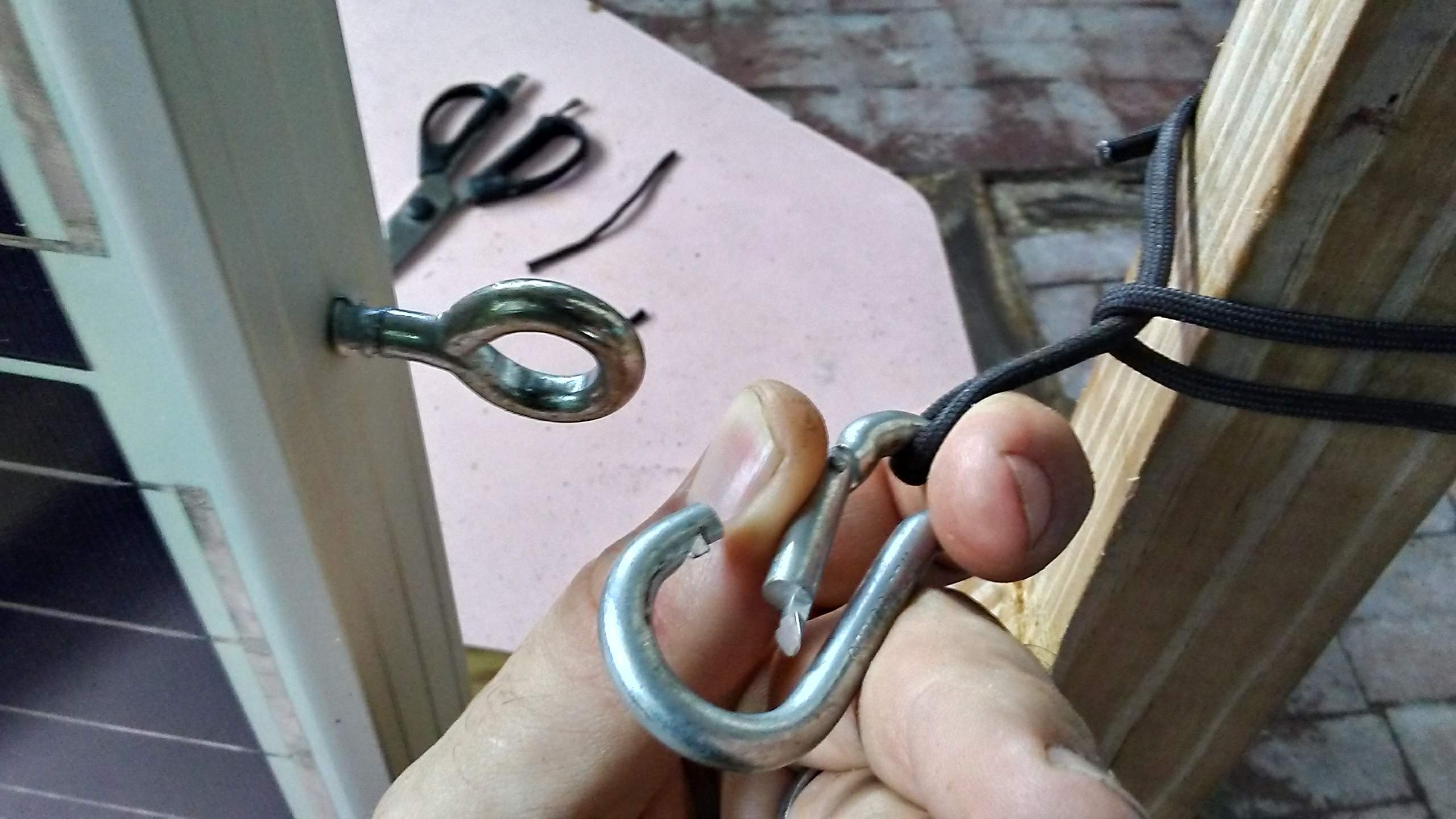

If I can use rope and knots in a project, I probably will. This panel is suspended and adjusted by paracord and friction hitches. Here’s some pics of the build:

Water Powered Timer

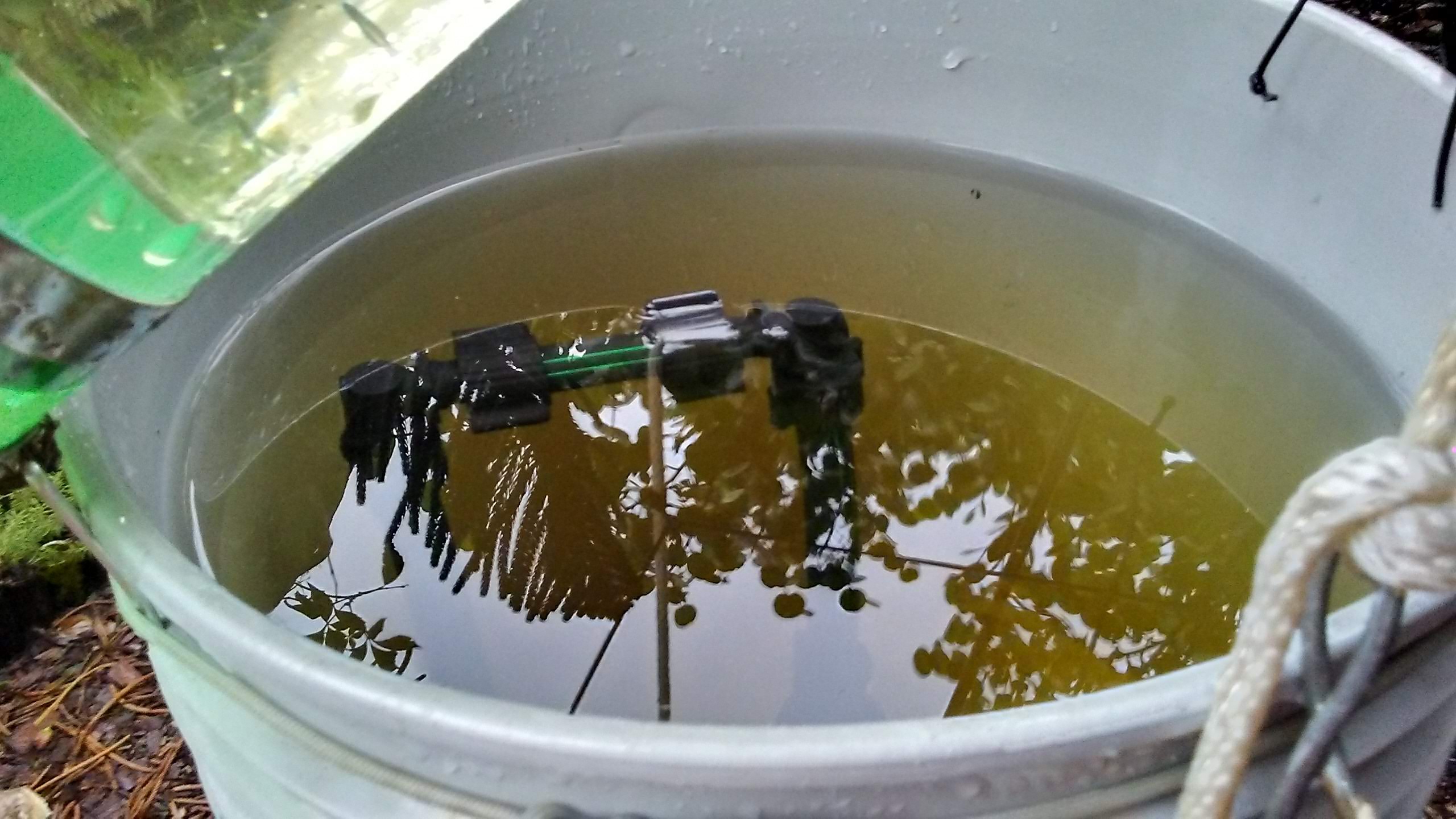

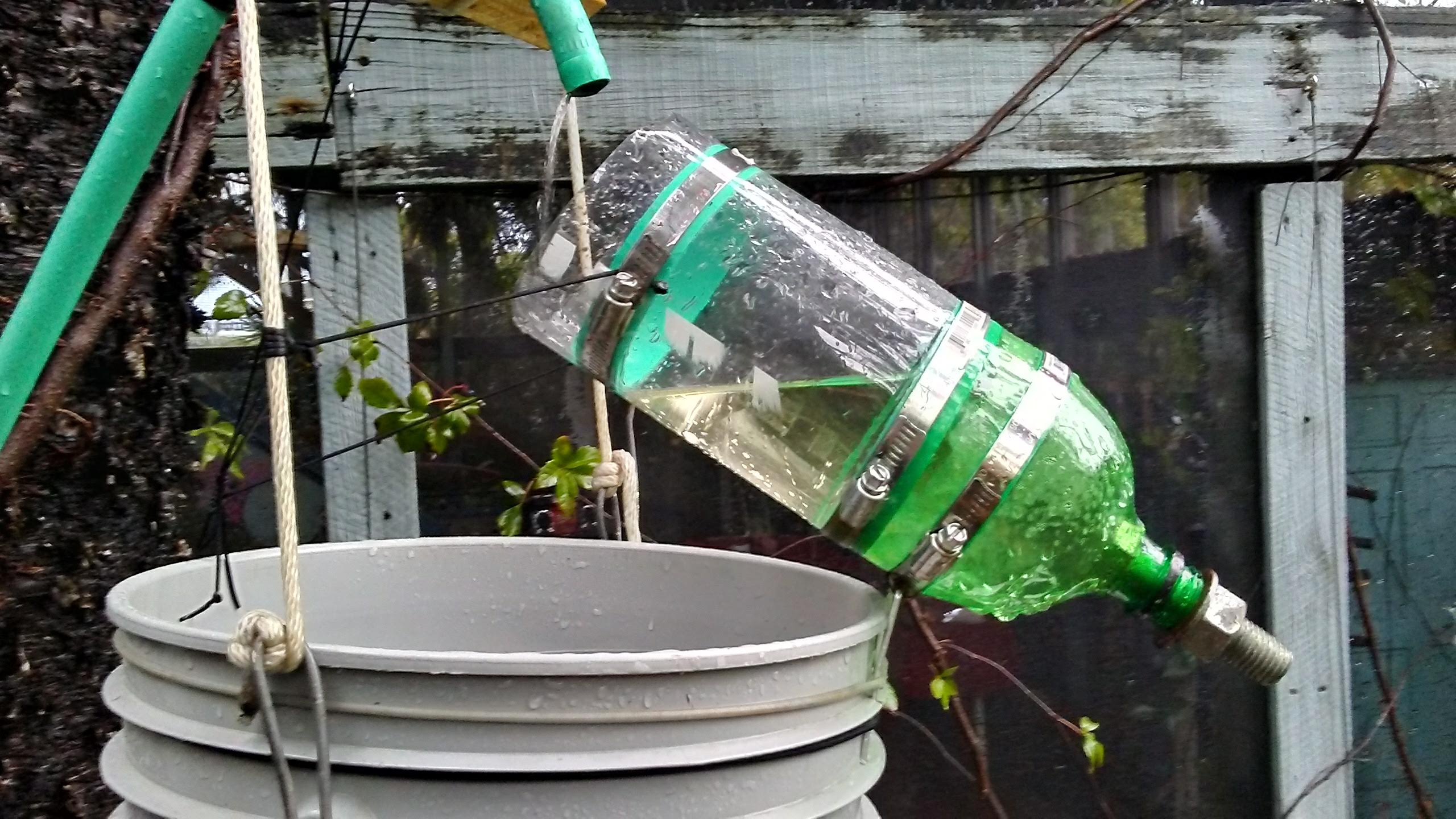

So, I’m playing around with a gravity fed Aquaponics bed. Most ebb and flow systems I’ve seen use either a bell siphon, or an electric/mechanical timer. This idea is a little different, it uses a Shishi-odoshi (“scaredeer”) or sōzu to start a siphon which drains a 5 gallon bucket of water into a grow bed. The timer is governed by the flow of water into the scaredeer (the 2 liter bottle).

Some background:

I have a fish pond, a rain barrel and a gravity fed water timer. The rain barrel is 10 foot off the ground and a solar powered pump replenishes the barrel with pond water while the sun is out (like a water tower). The barrel, in turn, drains into my water timer overnight and on super cloudy days.

The aim of the timer is to be able to slow down the water flow as much as needed and not worry about stalling the siphon or fully draining rain barrel.

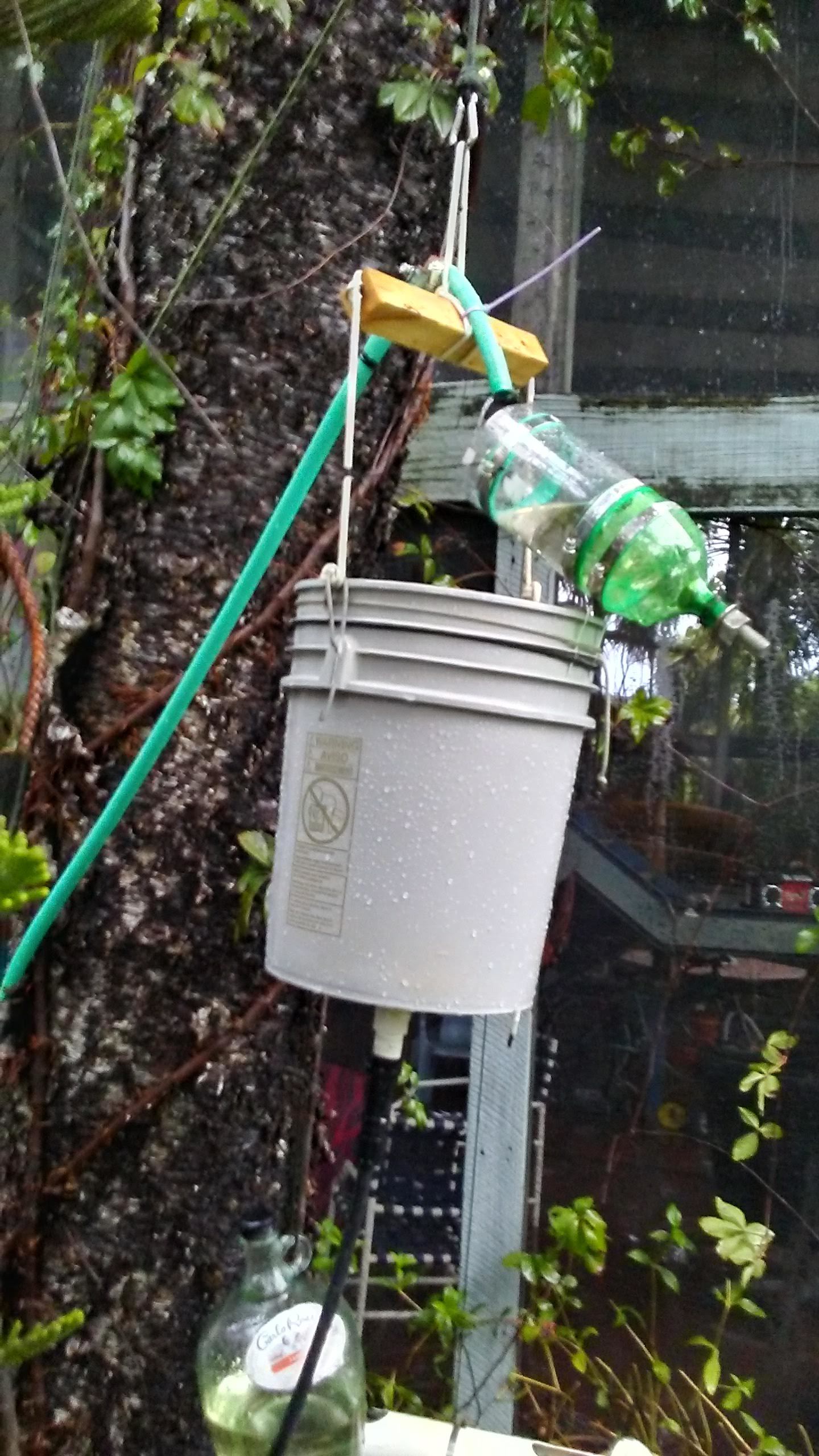

Here’s what I got so far:

Here’s a video of it in action:

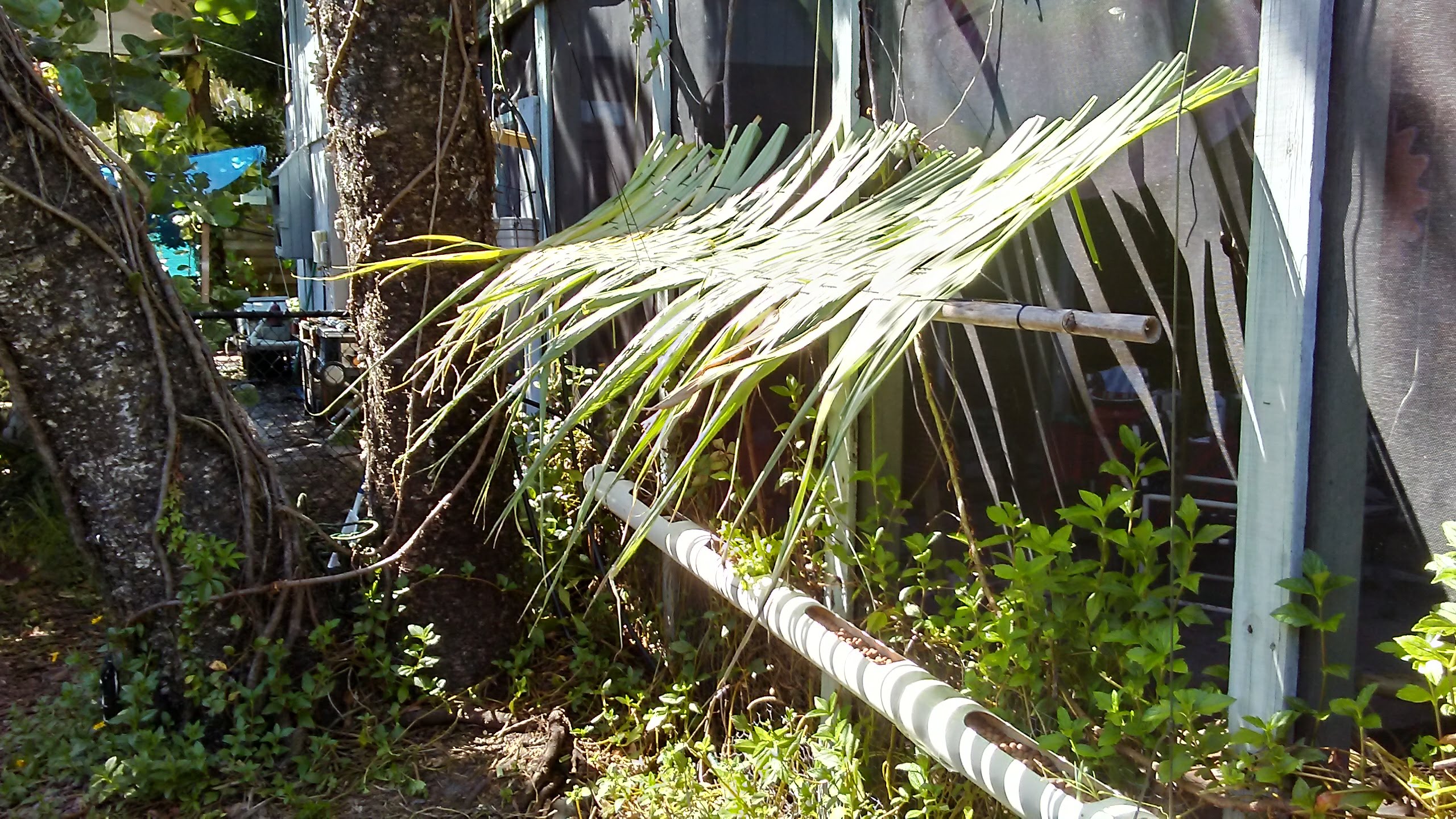

Here’s the sunshade I made for it out of sugarcane leaves.  I’m thinking of re-making it out of banana later on.  We’ll see.

Roof Top Rain Barrel

So this is just a rain barrel placed on a reinforced carport roof top. It’s about 10 foot off the ground. Pond water gets pumped into the bottom of this barrel, fills it up and overflows/returns out the top of the barrel’s standard 2″ port. The pump’s flow rate is faster then the overflow rate so a ping pong ball float valve is used seal the air vent and force water through the return line. With out an air vent (closed system), the barrel would collapse in on itself from suction as the water travels down the return line. Once again, I’ve used rattail cord & friction hitches to keep things in place and I can just slide up the knots if I need to access the check valve.

Here’s it in action:

Sugar Cane Press

I finally got around to building a Sugar Cane press. Sugar cane is just one of those things that’s been on my mind since my childhood. Nothing like the primal fun of chewing and spitting cane. I even made my own sugar-mint juice as a kid; must made a whole ounce of it :)

So now I’m old(er) and I planted some cane in 2014 and watched it grow for a few years all the while thinking that one day I’d sweeten my coffee with it.

I was looking for a press that I could use by hand just to meet the needs of my family.

My research showed in large that the best equipment comes from India. That the hand operated types usually have multiple gears, vertical cranks, optional motors, and they cost a lot to ship!

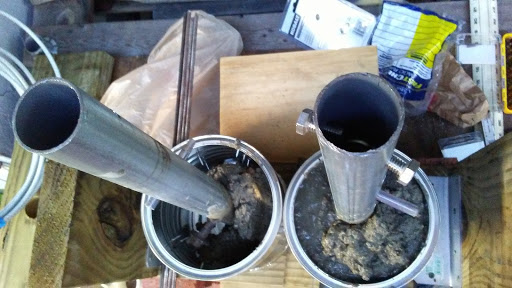

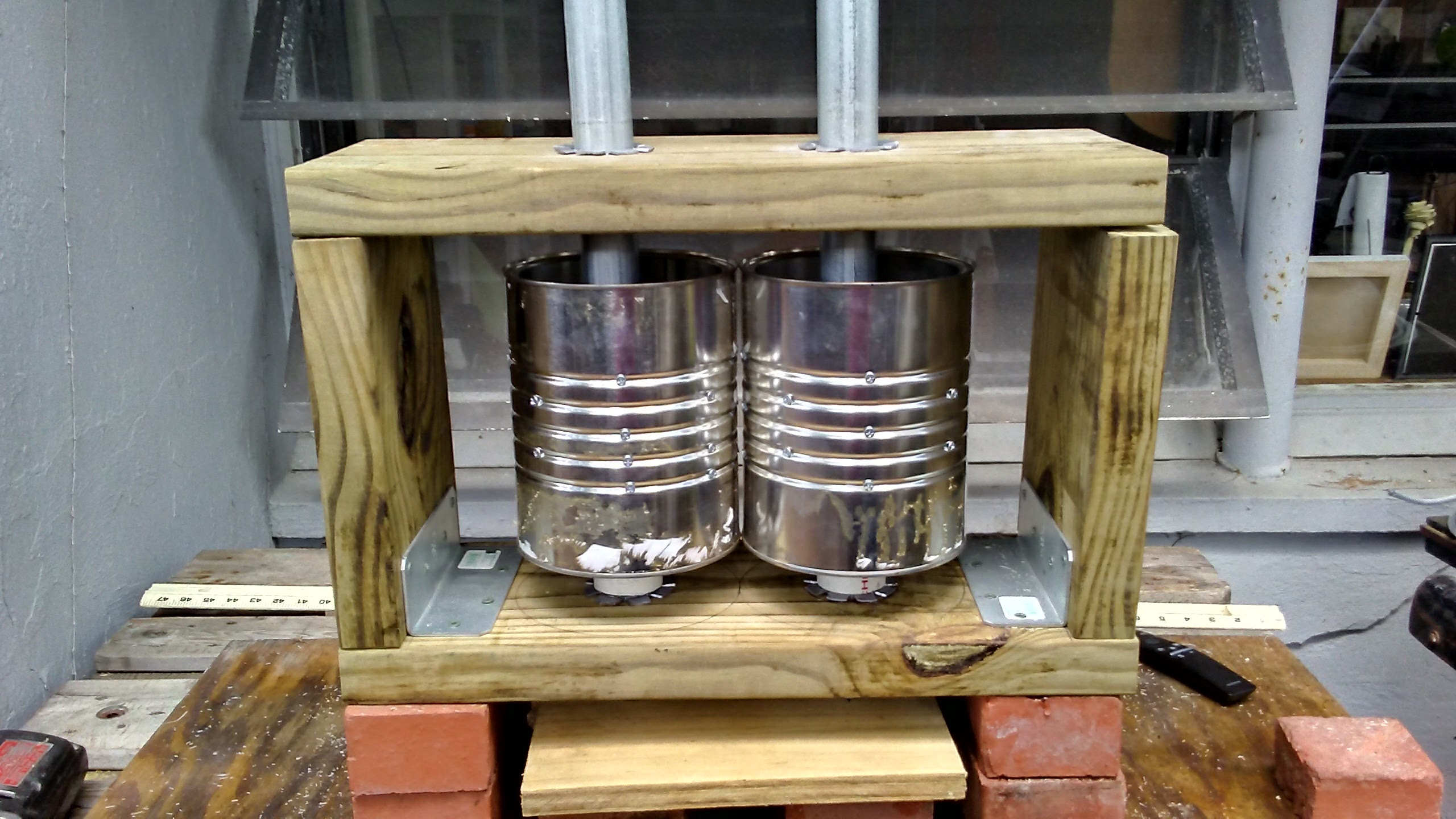

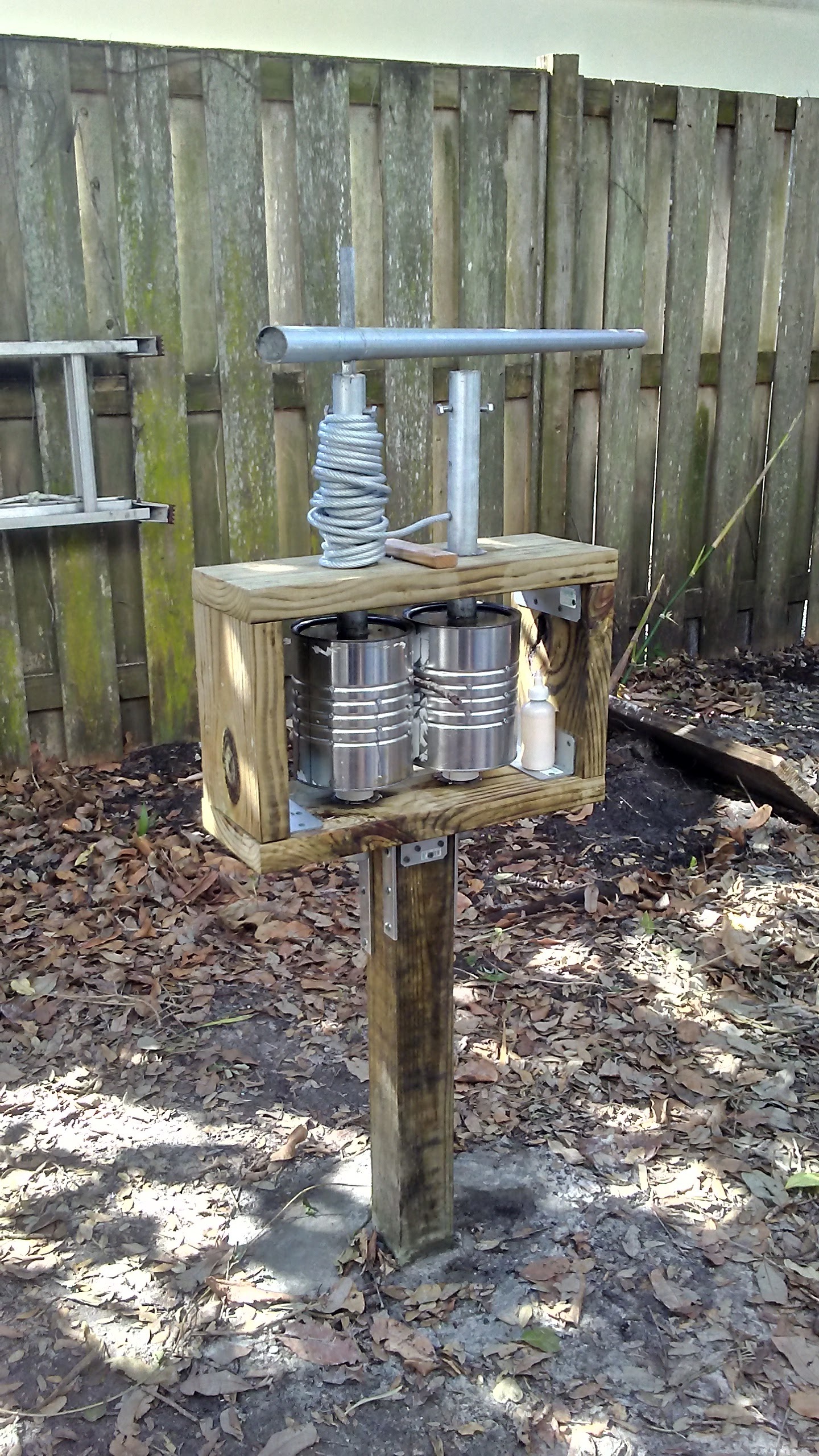

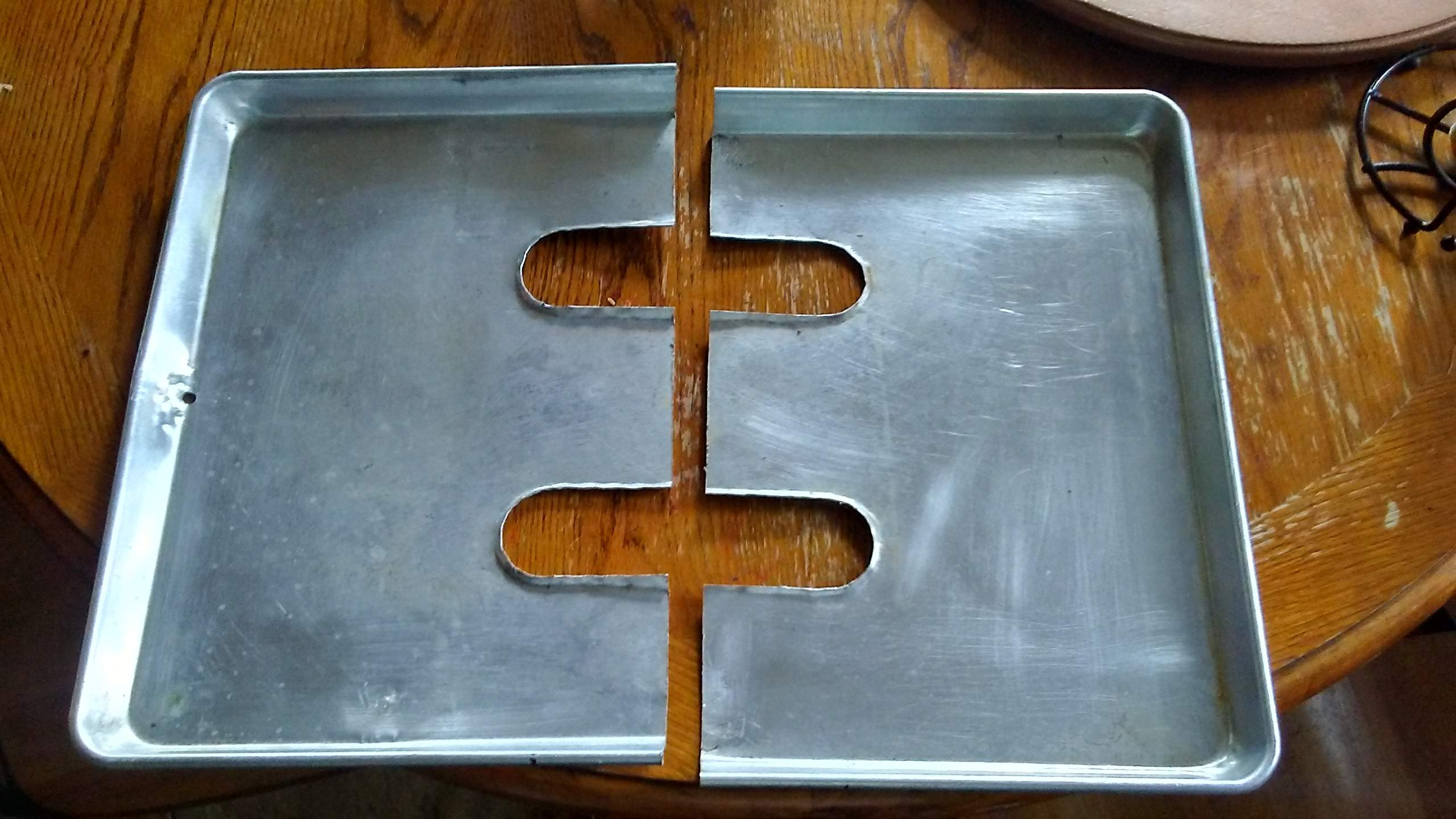

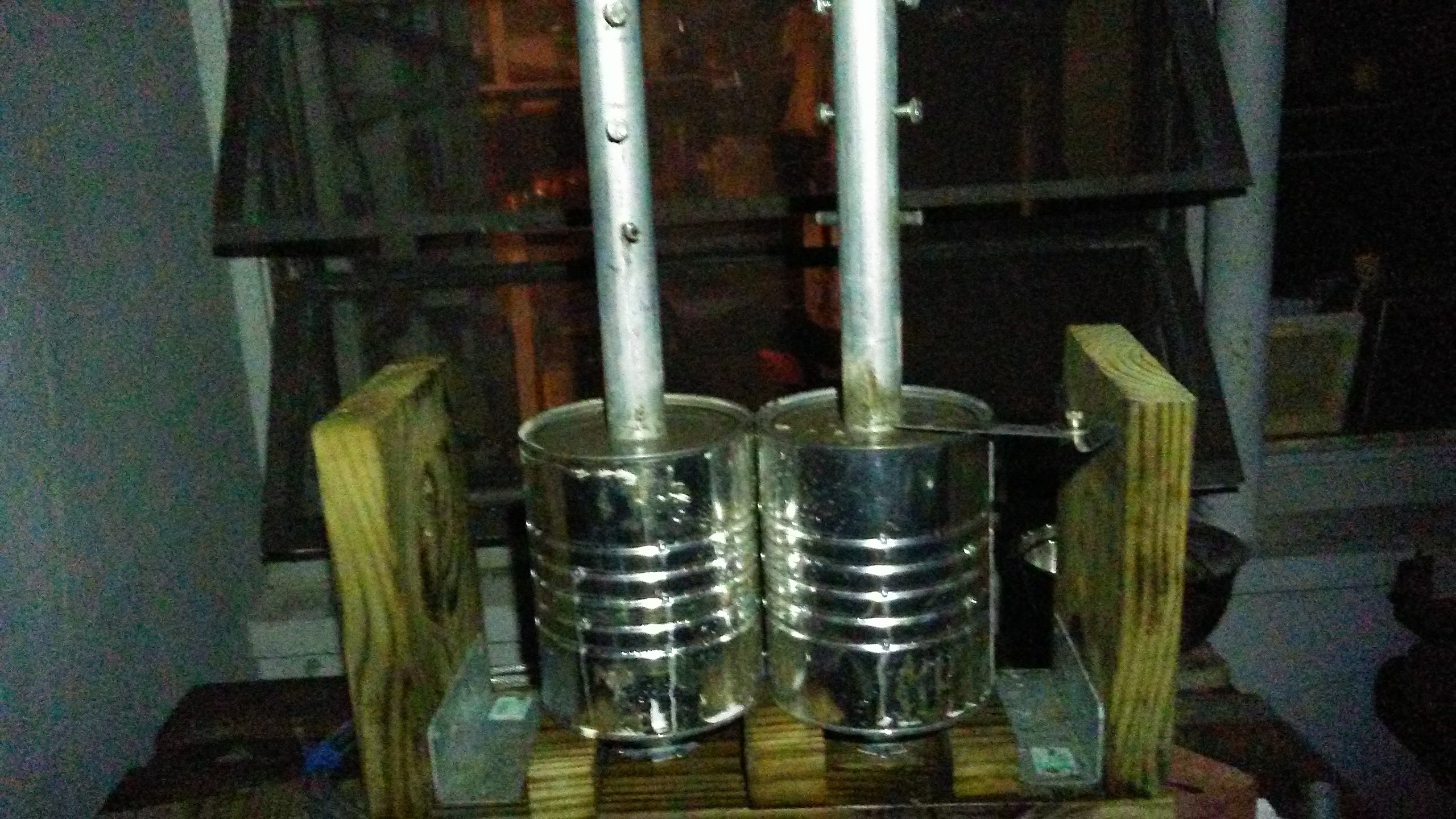

So decided to make my own from some coffee cans filled with concrete and steel cable to turn the cylinders.  Here it is:

final

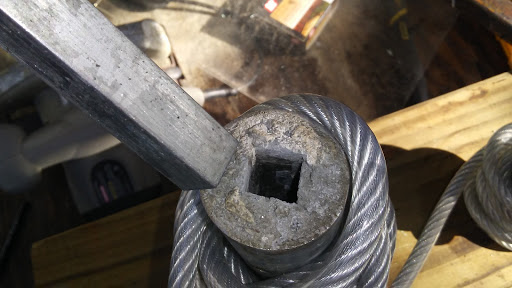

The weakest part the press was the 1/2″ square shafts.  They will shear off if the cane is big enough.  I grow Badila which regularlly gets over 2″ in diameter so I need to split it in half in order to run it through. The best way to split cane in half I found is by mounting a machete vertical and pulling the cane through the blade.

My cane grows 10-12ft and a tall stock will generate near 2 liters.  A smaller-medium sized stock about 4 cups.

Here’s a video:

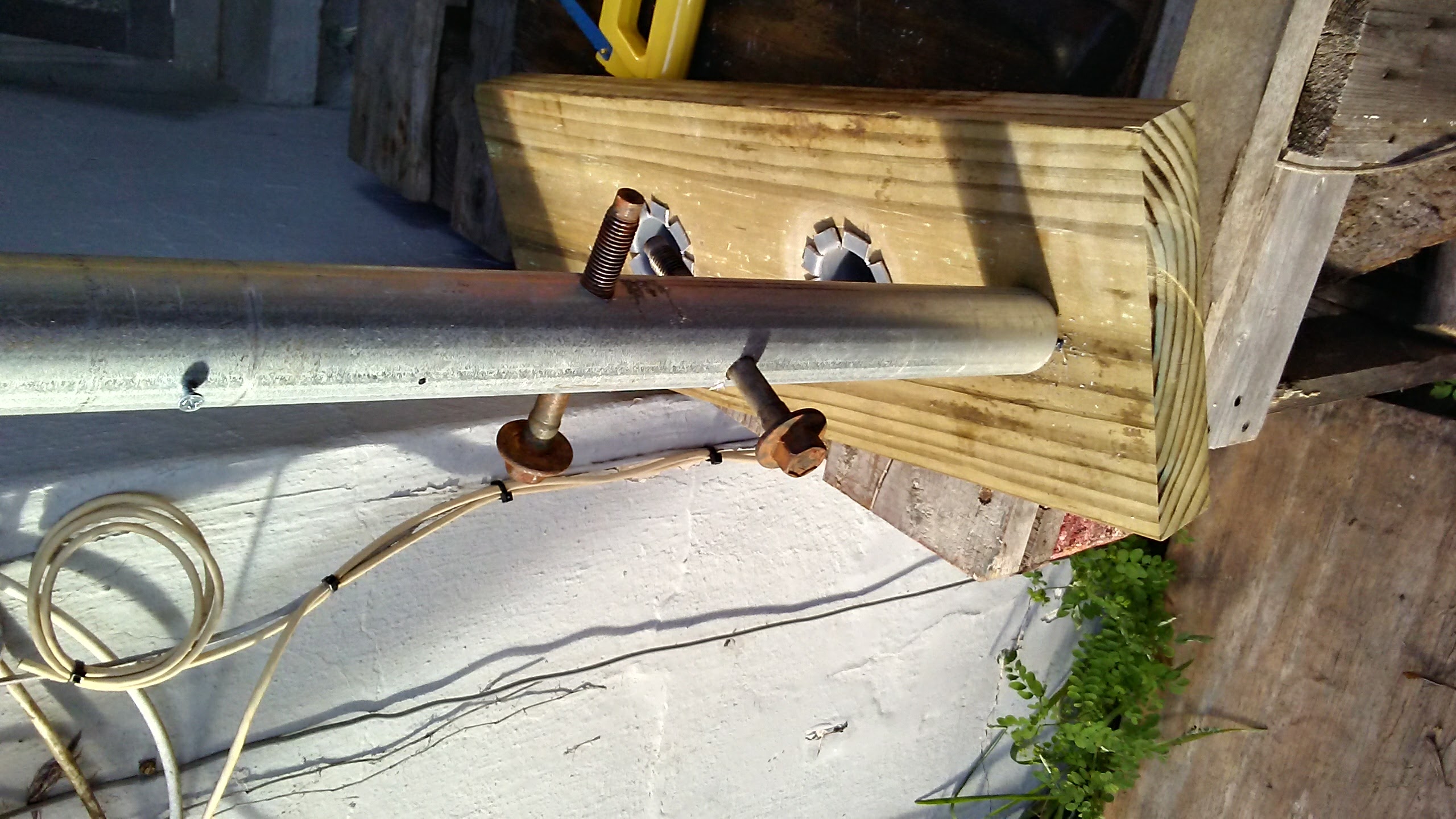

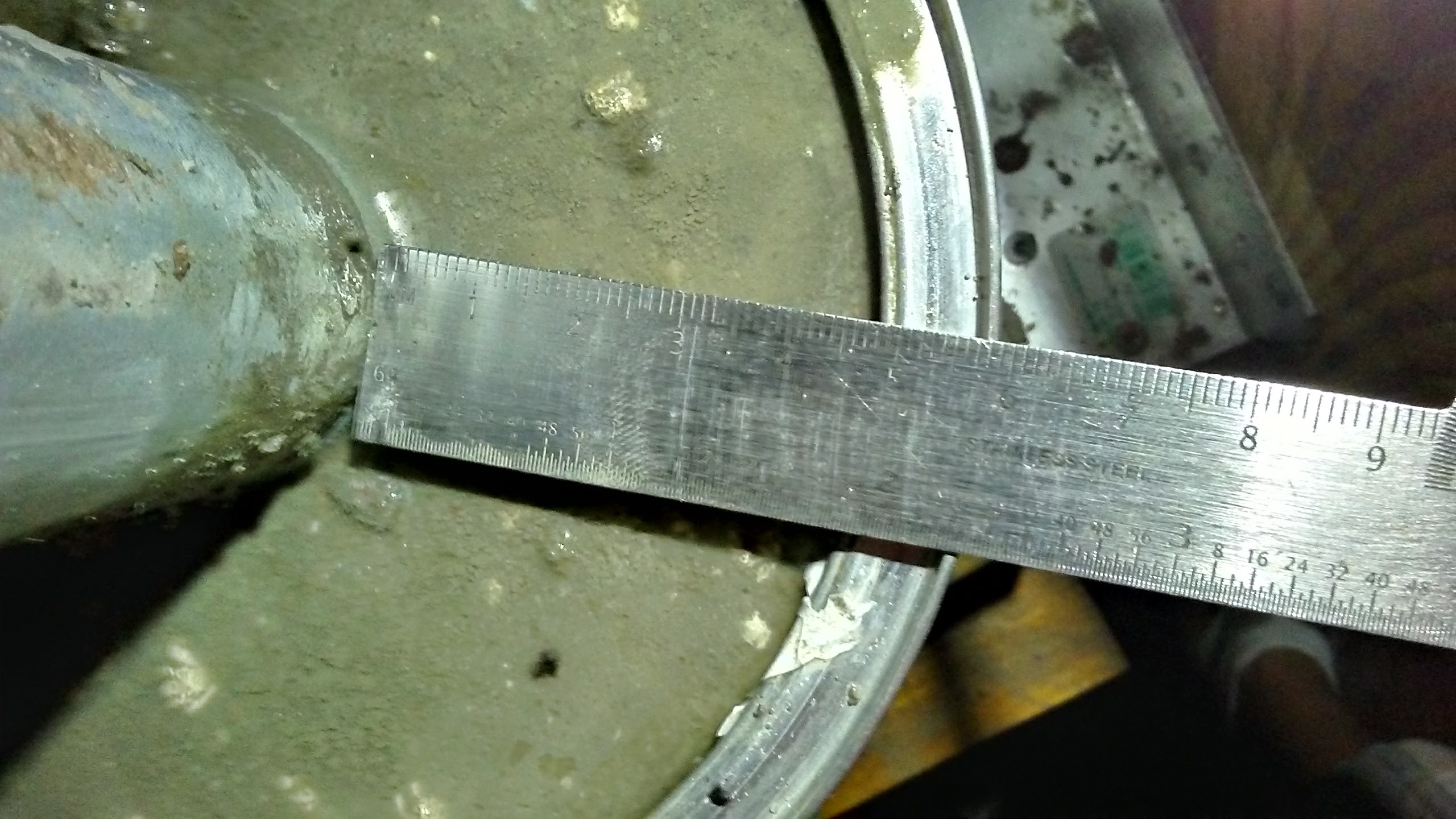

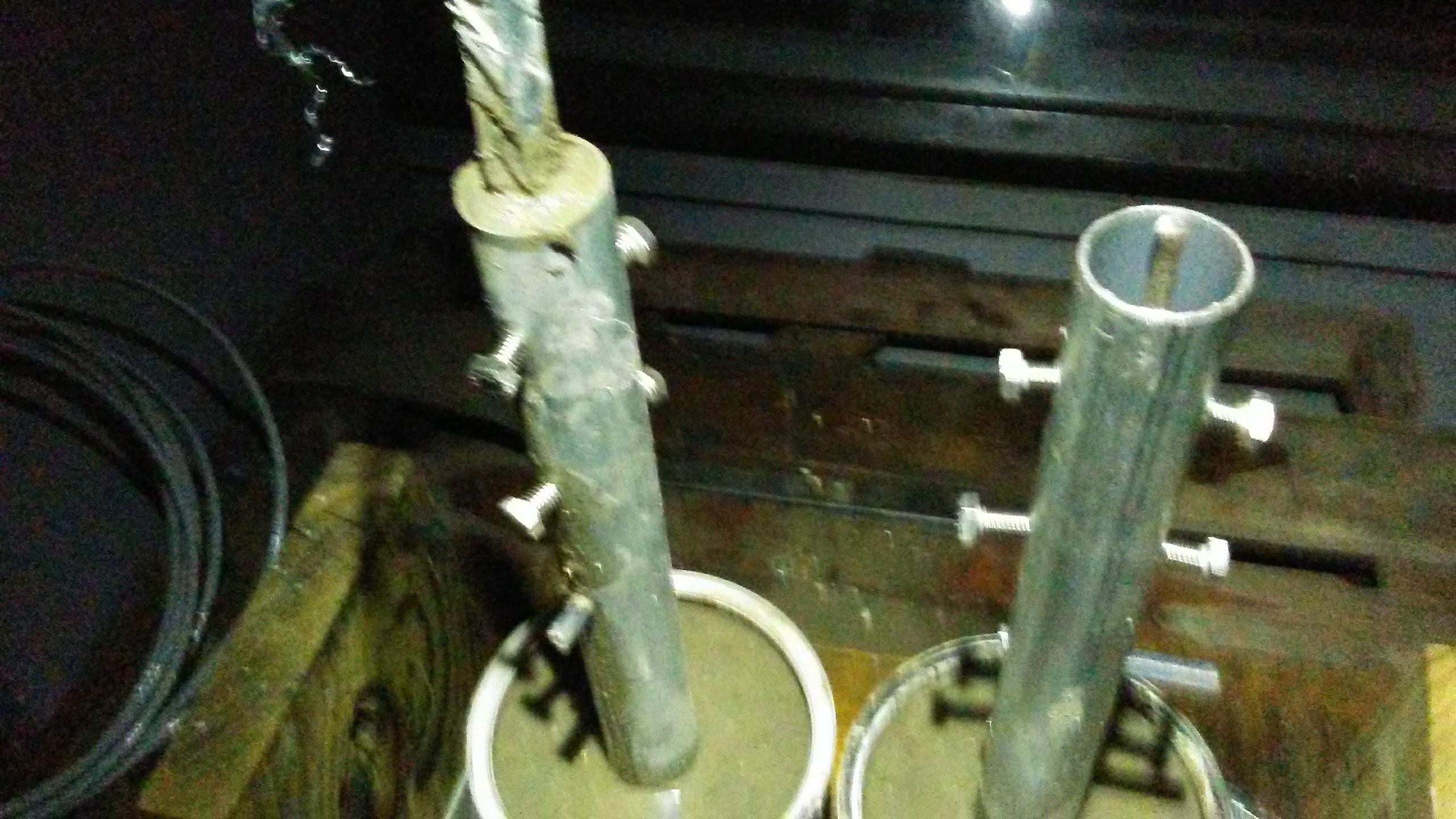

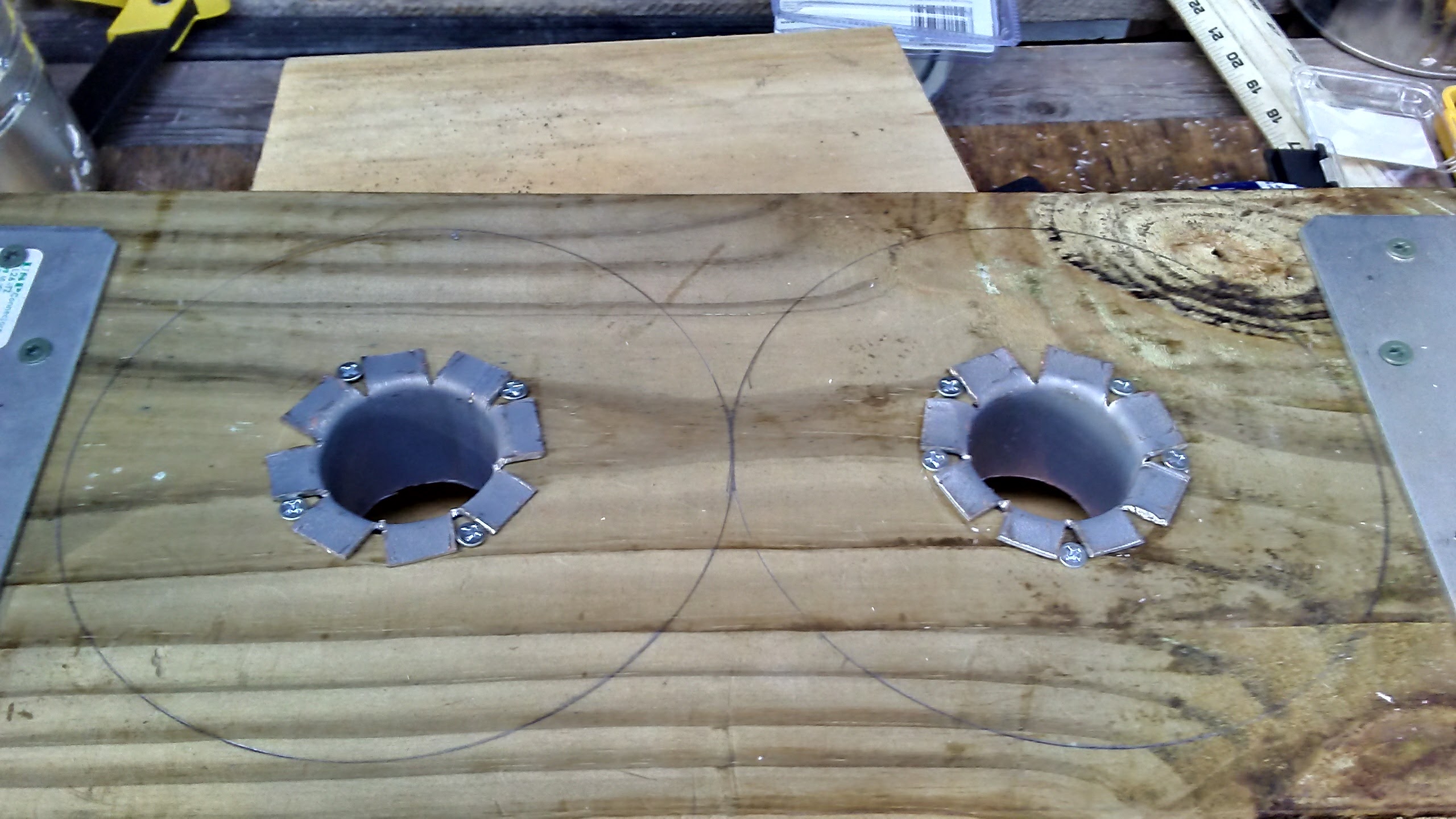

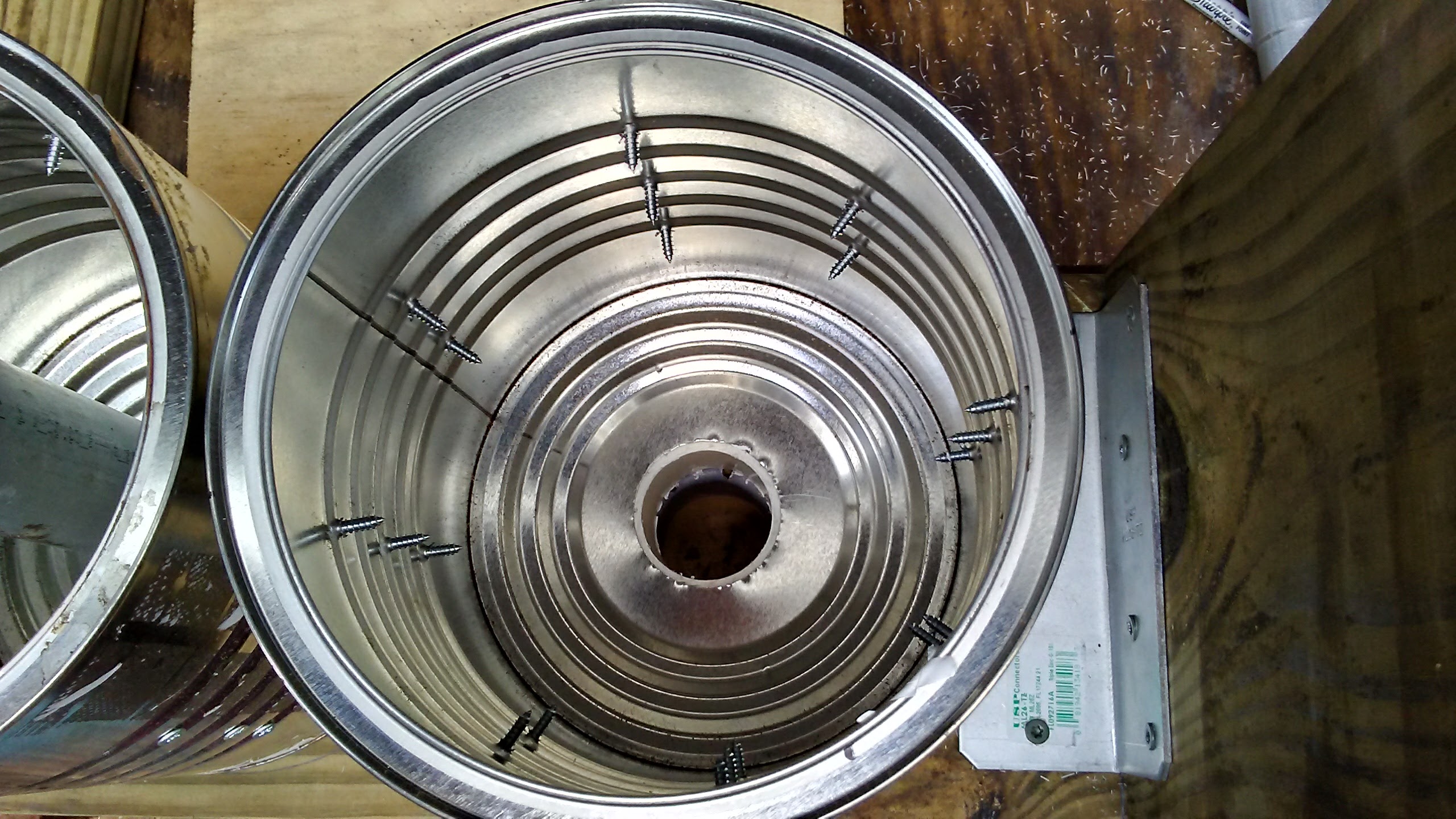

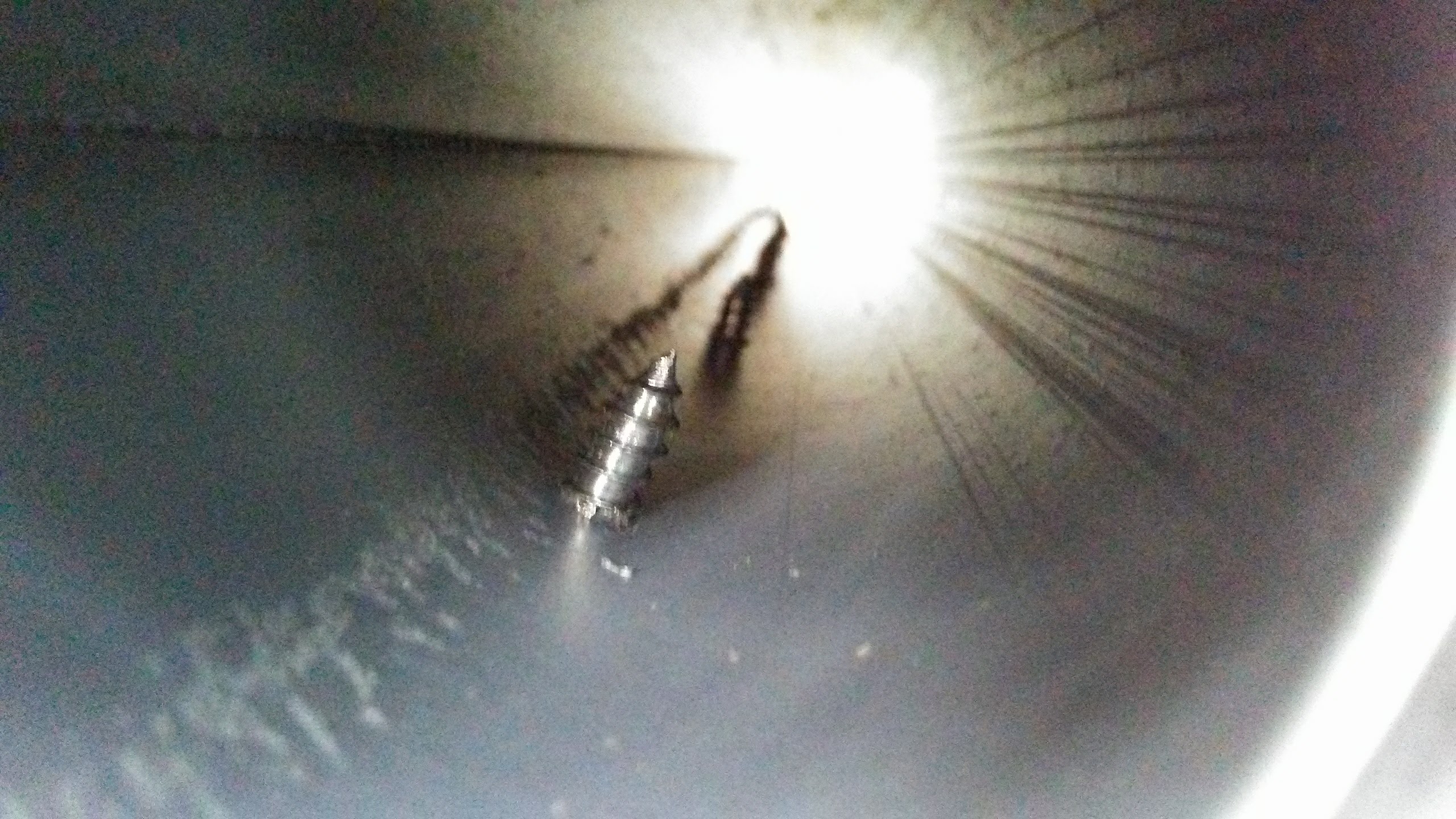

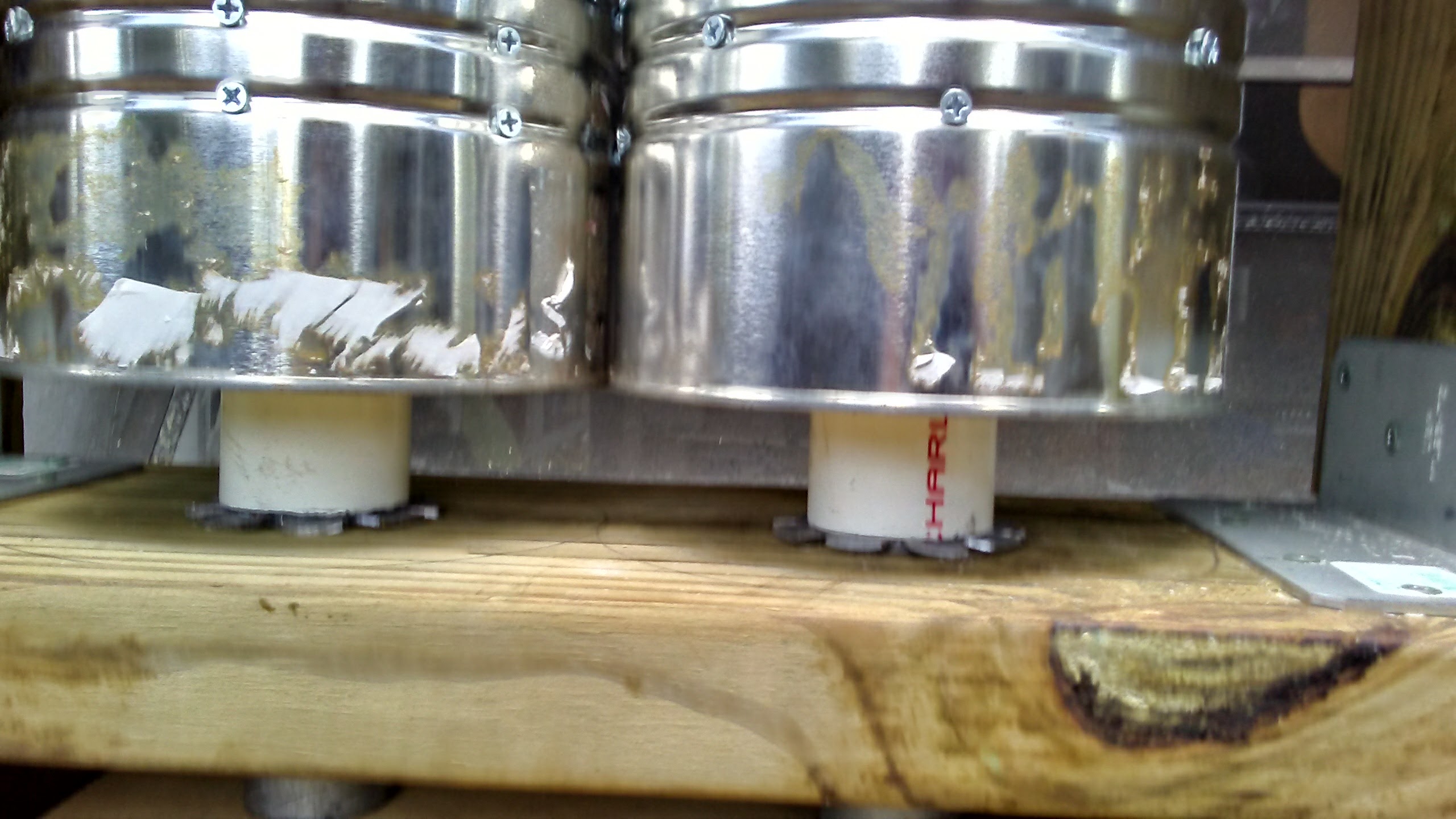

Here’s how I built it:



Splitting cane

First make sure your machete is sharp (it doesn’t take long to sharpen a machete with a sharpening stone and it’s worth it :). Find a way to mount your blade. I used a clamp and some nails. You start the split by pushing at one end of the cane; just be careful not to push too hard or you’ll cut your hand. Once through, pull the cane from the opposite side. You can back up and angle your cane to correct things if your cut is running off to one side. Here’s a video:

Coffee time :)

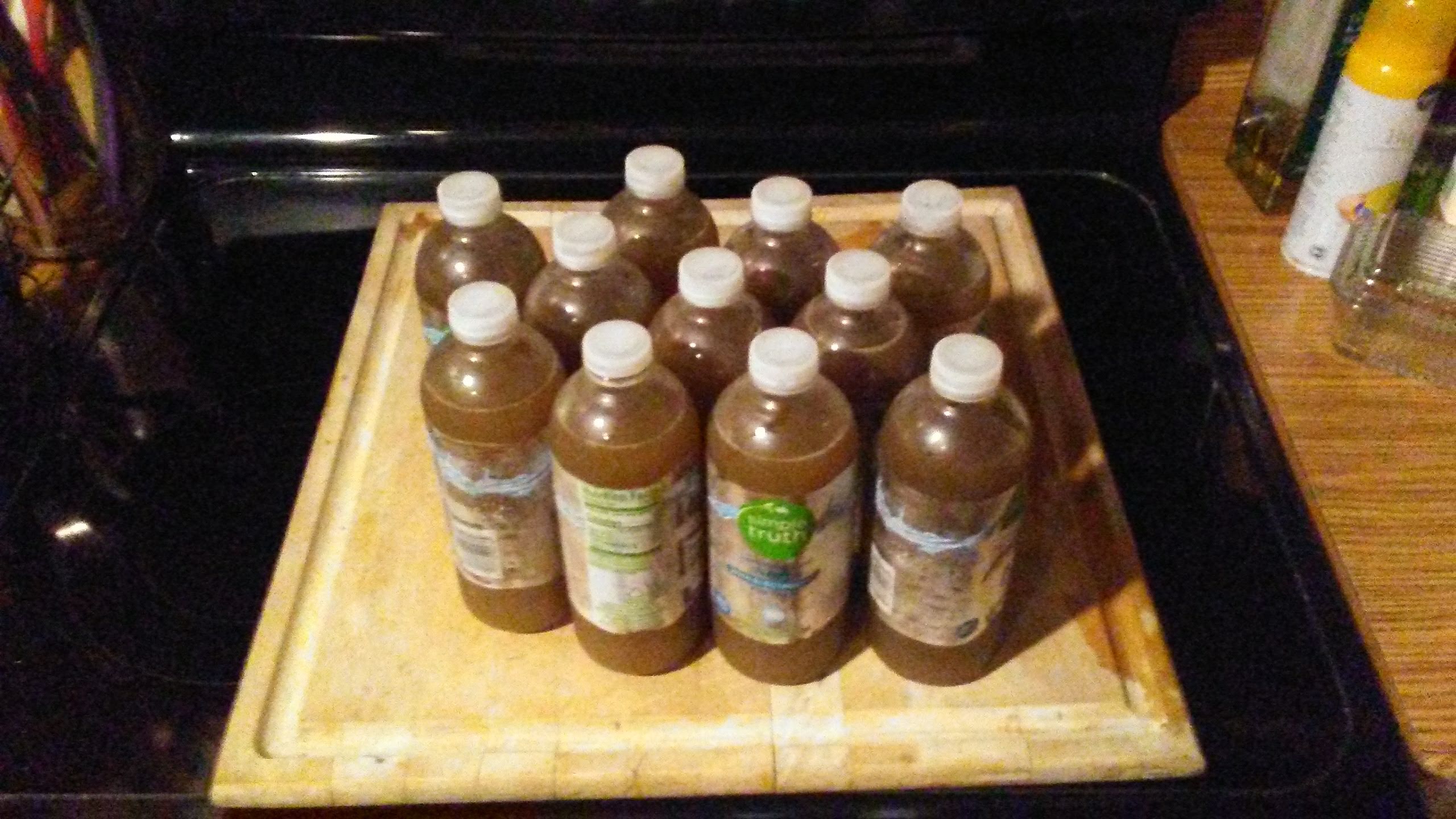

The best way to store the juice I found is to freeze it in some water bottles, or some small mason jars. Cane juice last about a week in the fridge before it starts to turn. I pull a bottle out of my freezer once a week for fresh juice. Here’s are some pictures :)

Some useful links:

  • https://www.youtube.com/watch?v=1Zs6kmn3Ivw&t=403s
  • https://www.youtube.com/watch?v=PvrrlkdjI4E
  • Here’s a thread on a similar experience
    • https://permies.com/t/54534/Quest-Sugarcane-Press
      What I learned from the thread is that you should search for sugar cane “crusher” (not “press”).



The Hidden Native Ranch Salad

IMG_20160125_182856

I’ve been waiting a while to make this Florida salad. Most of the ingredients in this salad are native or naturalized plants to Florida. Which means you can grow them in your yard without added supervision.

I’ve replaced:

IMG_20160125_181224

Crepis grows all over here in Florida, it’s in the same family as Dandelion, and according the Green Deane, it has similar nutrition (as far as he can remember). It’s the closest I’ve found in taste to Romaine (minus the texture).

IMG_20160125_165010

Future renditions of this salad will likely include wild onions/garlic/chives (something of this nature).  And potentially ground papaya seed as a replacement for pepper.  We’ll see.

Word of caution: Melothria Pendula should be eaten green only, preferably a little lighter green then the ones you see in my salad. See links above for more information.

Sliding Hitch and Shackle

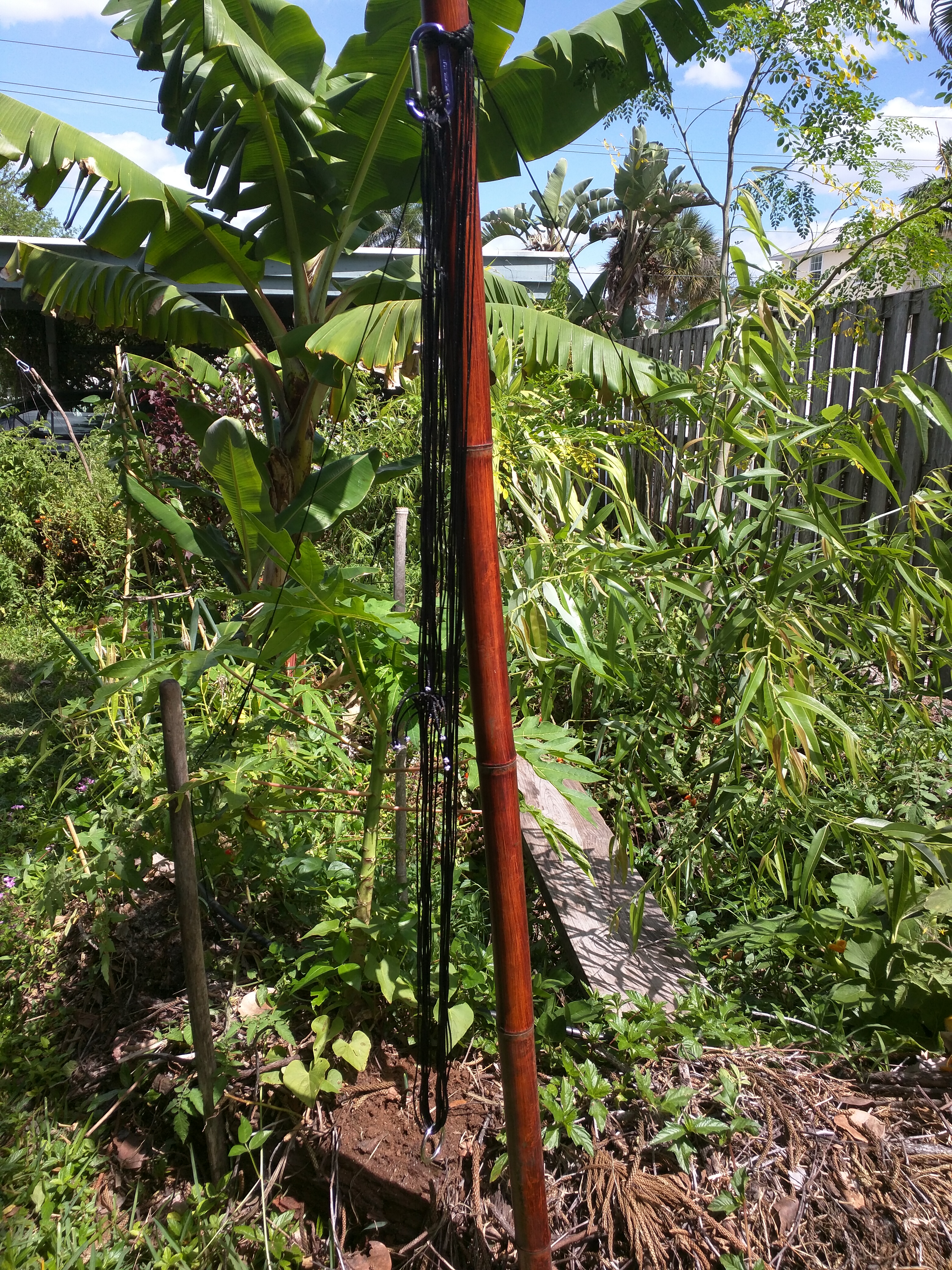

Since making the video (see below), I’ve switched to rattail cord which is a little thicker and handles better. I’ve decided to offer it as a handmade product, and I’m willing to make some for those who are interested. The lines can shackle objects up to 7ft away.  This picture shows the black rattail line and the carabiner (bamboo pole not included). There are a dozen lines in all. Two of the lines are shackling plants to the left and right of the pole.  Cost is $50.00 USD plus shipping if it’s outrageous. You are welcome to throw money my way here: http://paypal.me/ShaunMoen and email me your address/information to shaun@dittyjamz.com.

IMG_20160417_152010


The video supports HD. Select it if you have it :)

I’m currently growing Florida Everglades tomatoes which I let grow a bit too long without any supports. At first I ran some lines horizontal and tried to prop them up by hand.  It worked, but I ended up breaking a few branches which I didn’t like.  After some thought, I came up the idea shown in the video.

As a bonus, I was able to use some old music of mine for a sound track.

This idea hasn’t stood the test of time yet but here’s my thinking for benefits:

* Flexibility and reach
* Adjustability
* Reusability
* Small foot print
* Quick strapping and release

Sliding hitch and Shackle tied in larger rope
Sliding hitch and Shackle tied in larger rope

Here are some interesting links:
https://m.youtube.com/watch?v=BxxLD1TT4NI

Hose Stand

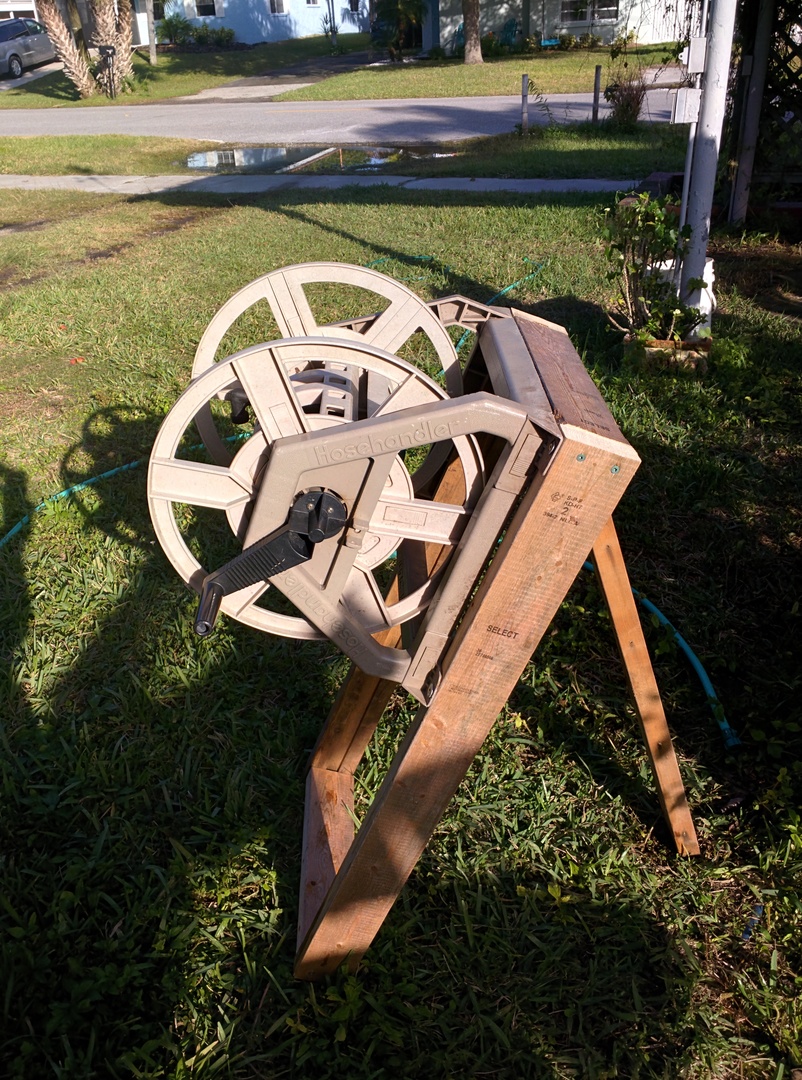

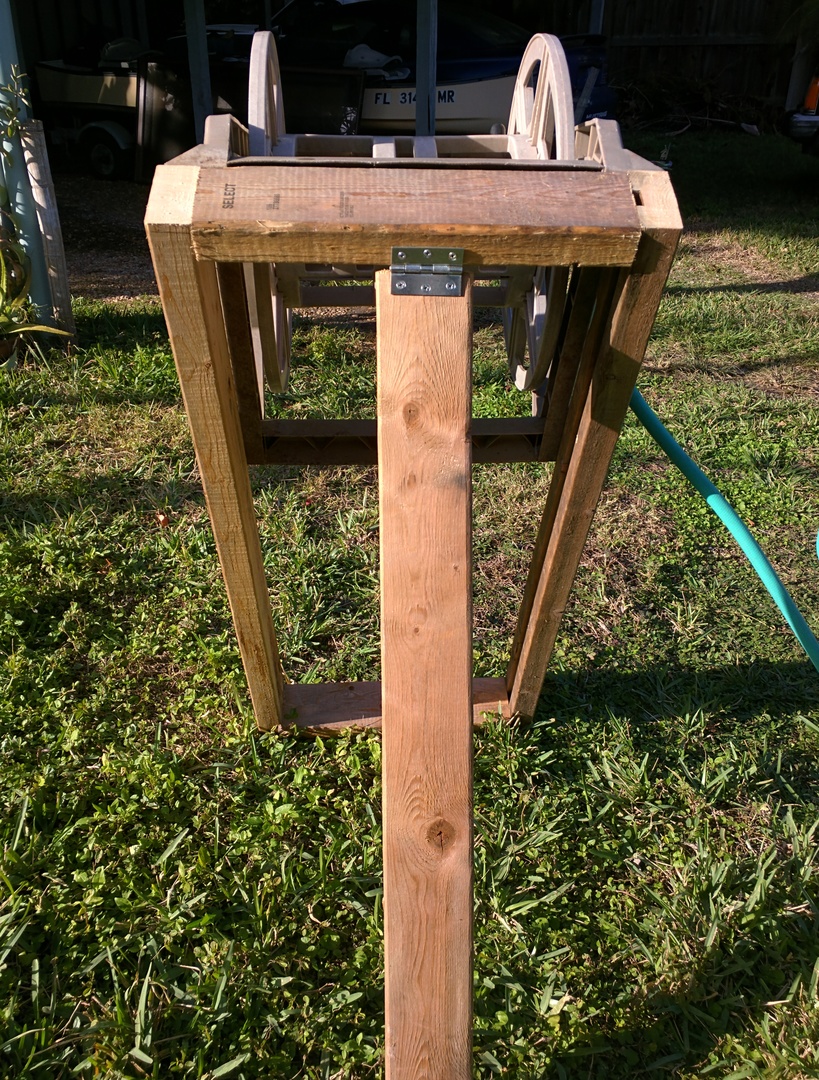

This hose reel had been laying in our yard for years; not sure who’s it was, or how it got here, but I made stand for it and put it to use.  The water that comes out of this hose is rainwater and is pressurized using gravity to near 15 PSI. I climbed a tree to accomplish this. More info in other posts.

IMG_20160115_155715
IMG_20160115_155801

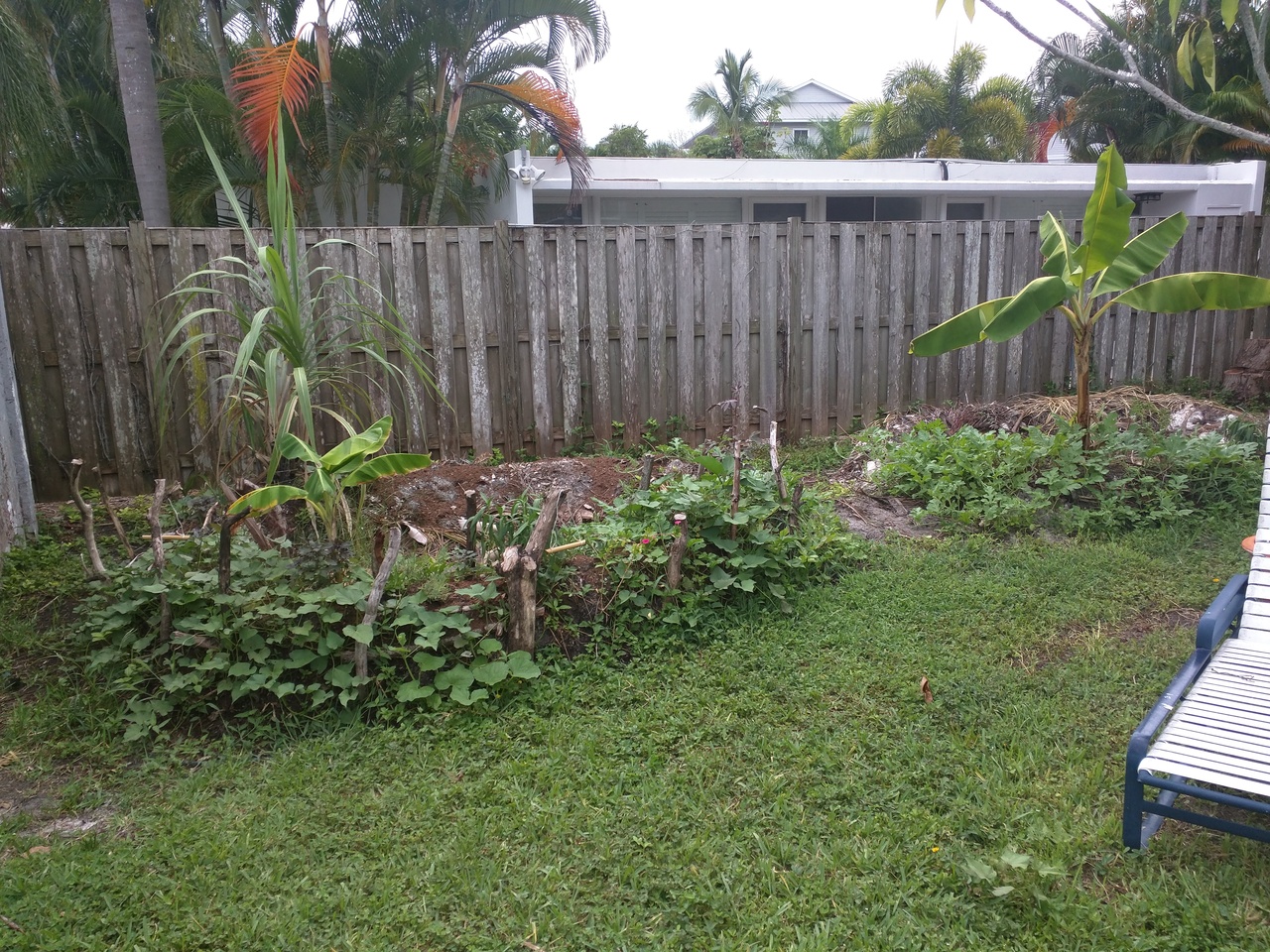

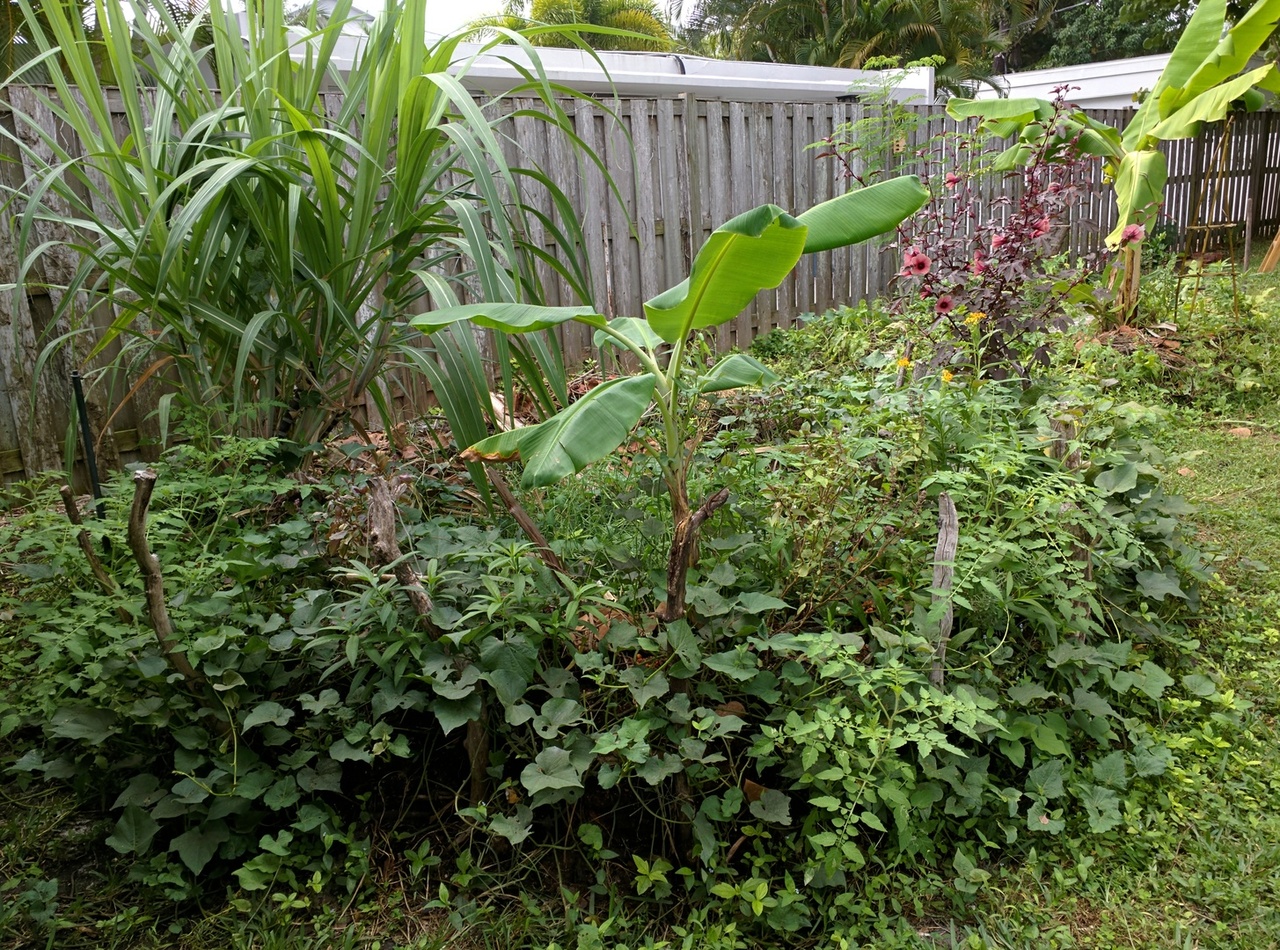

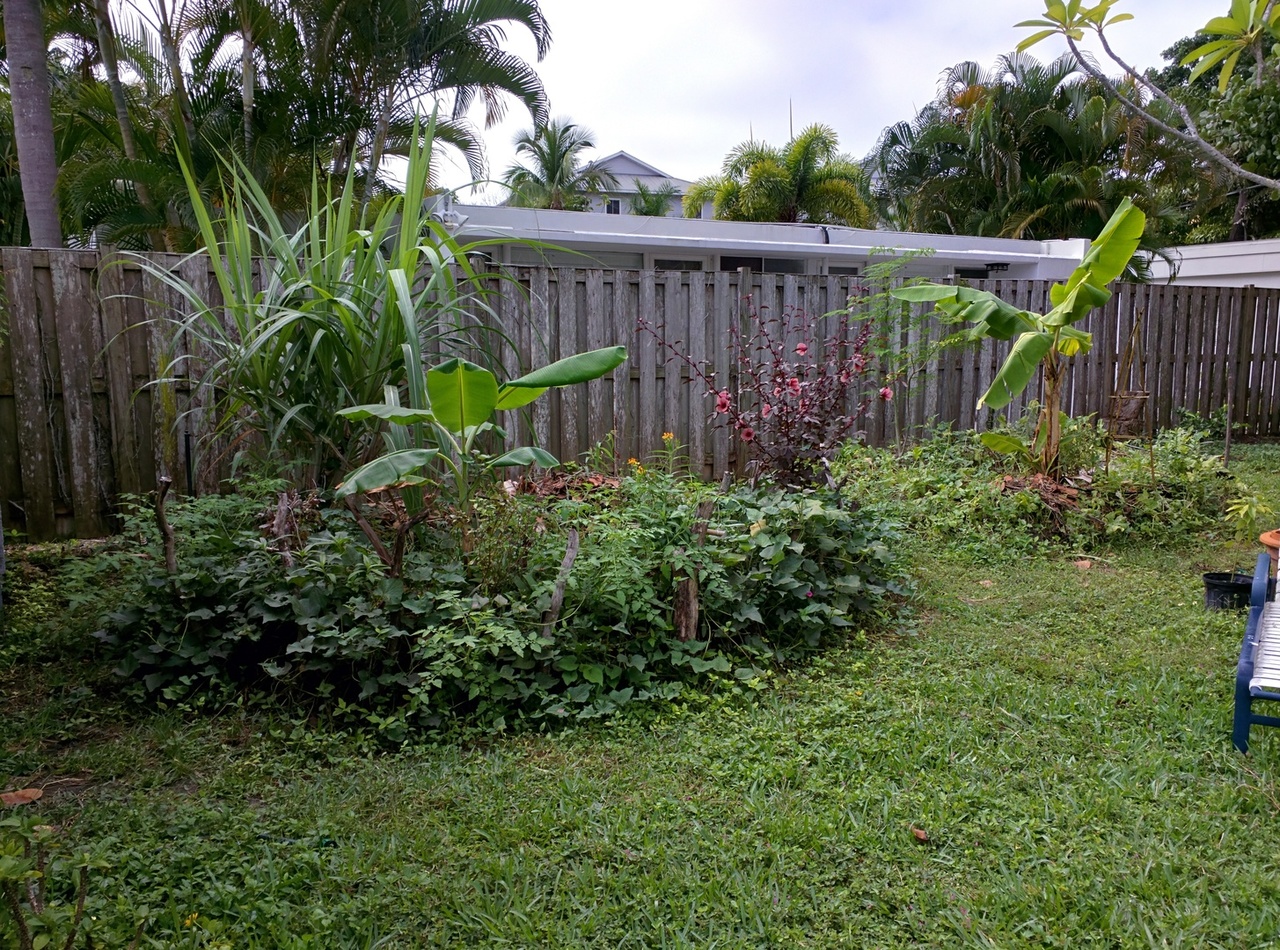

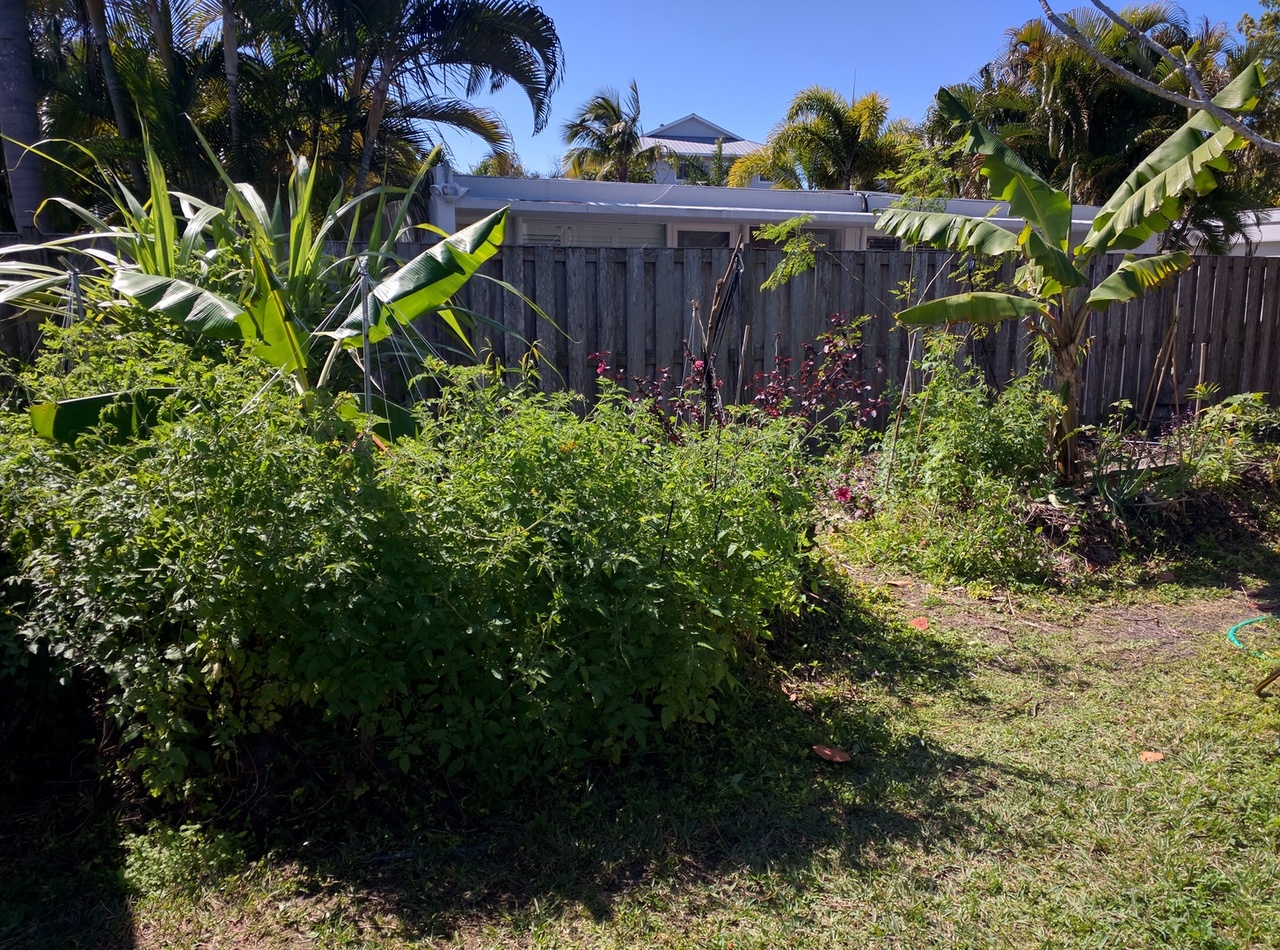

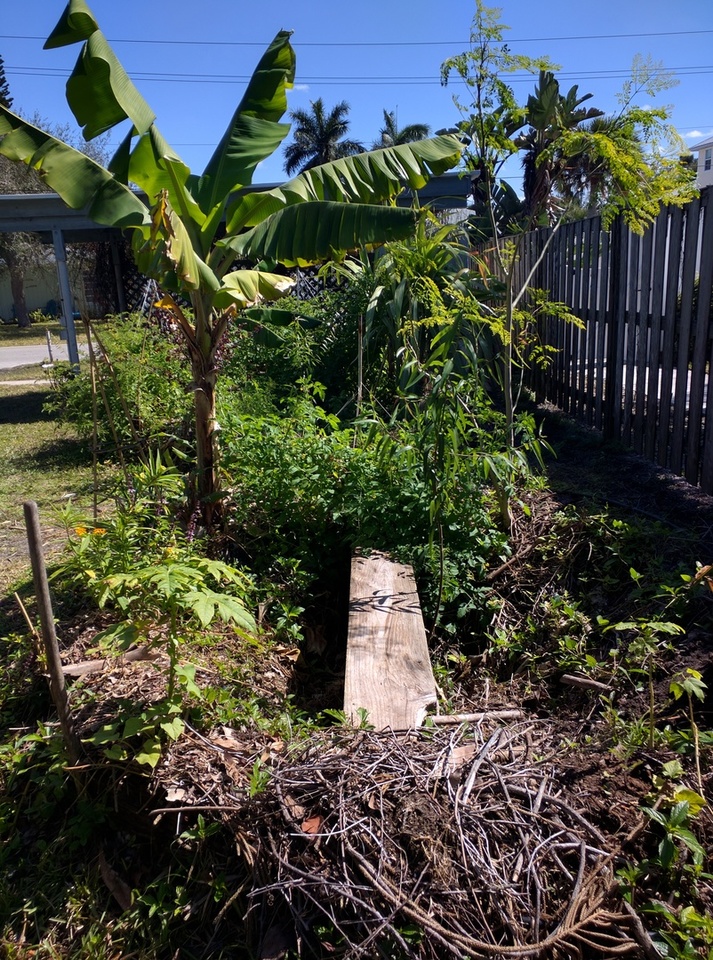

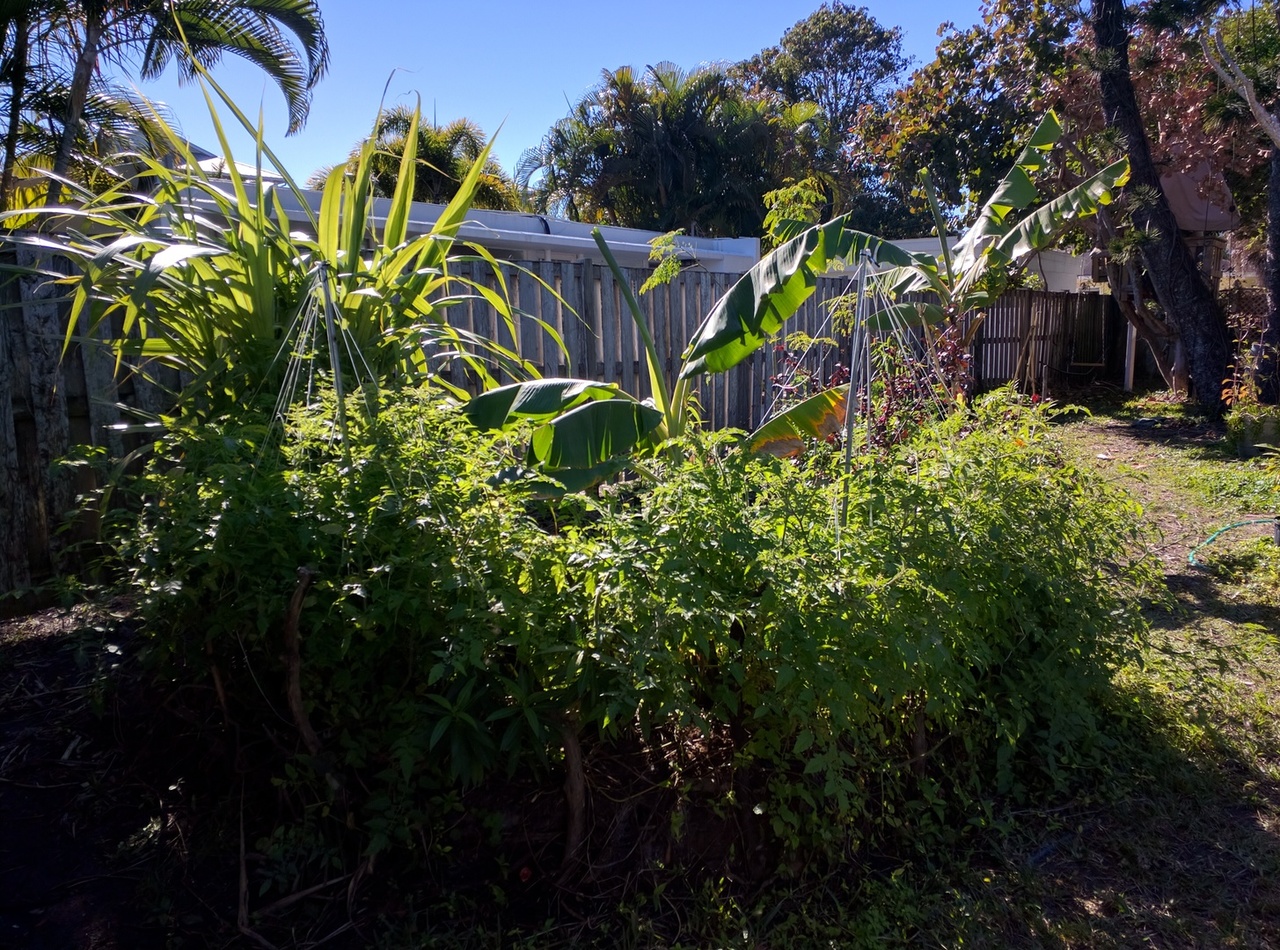

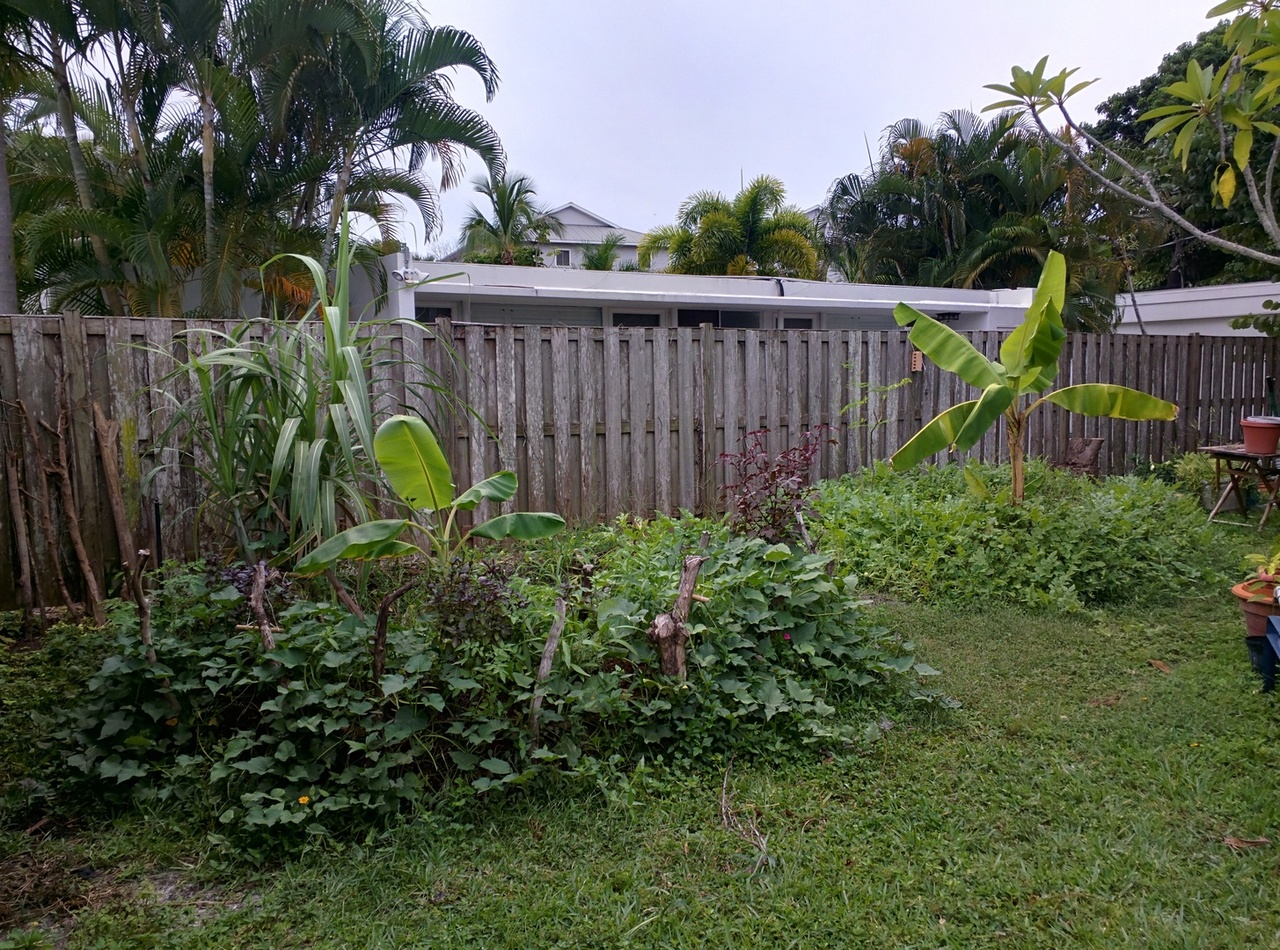

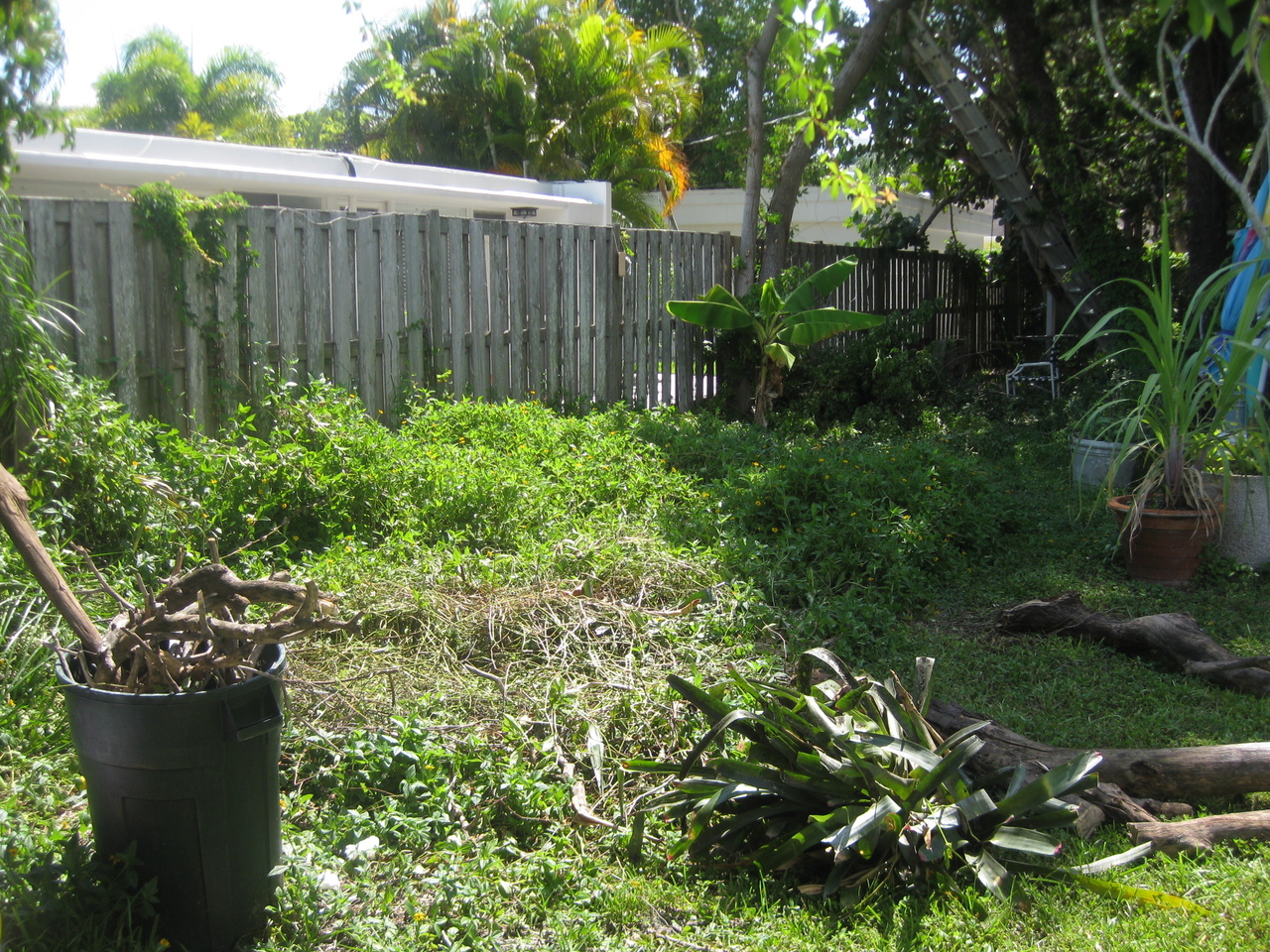

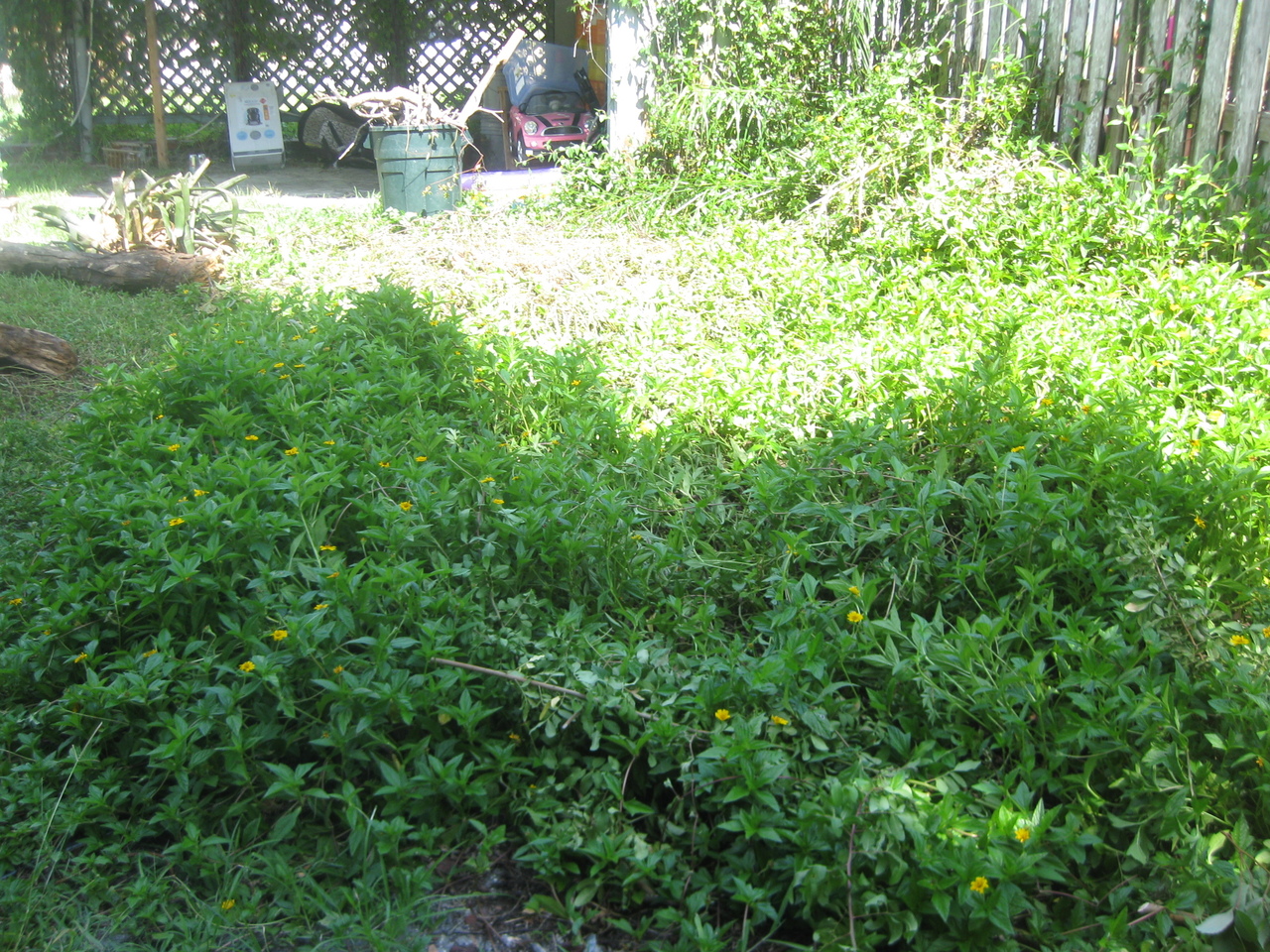

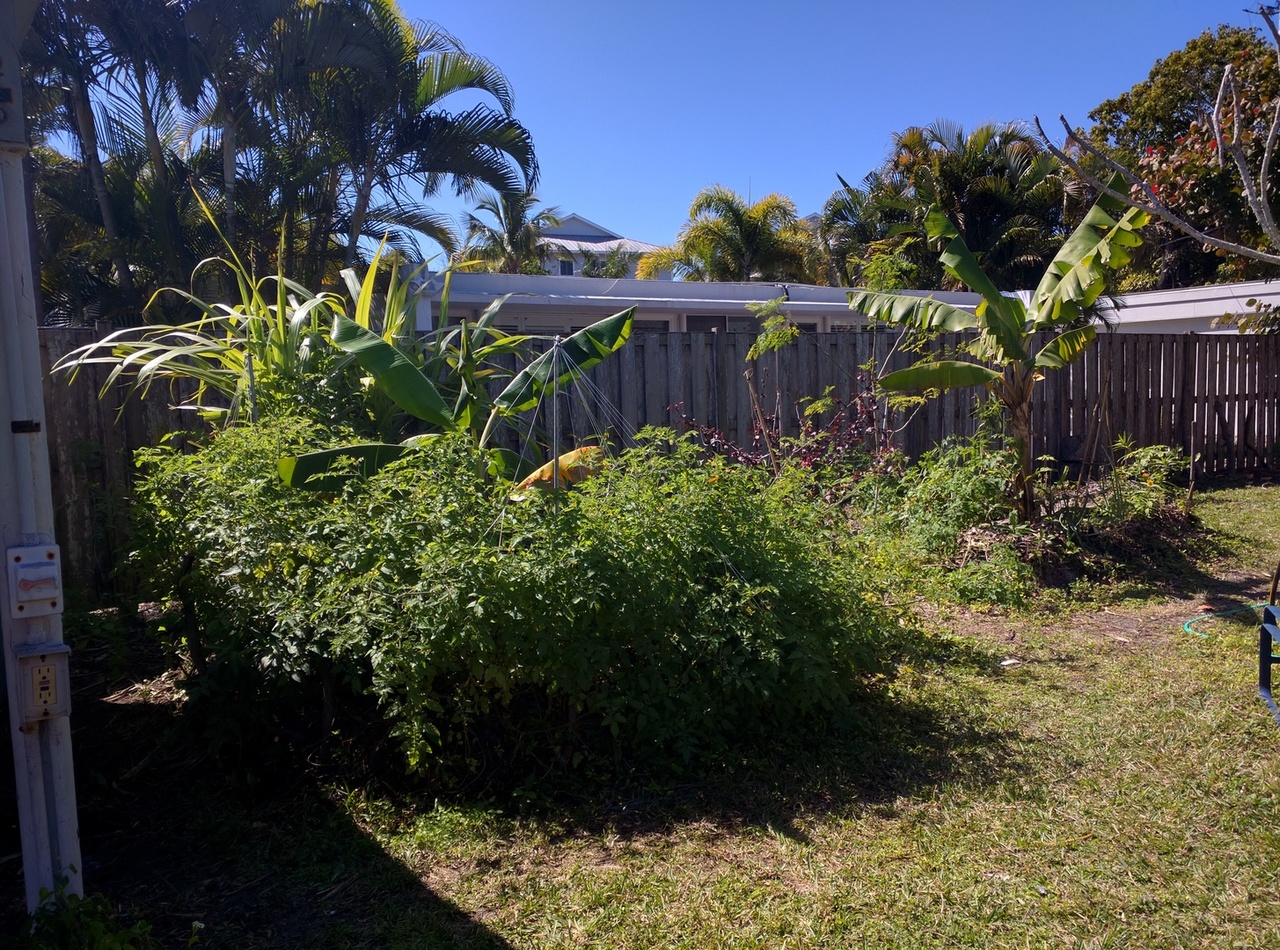

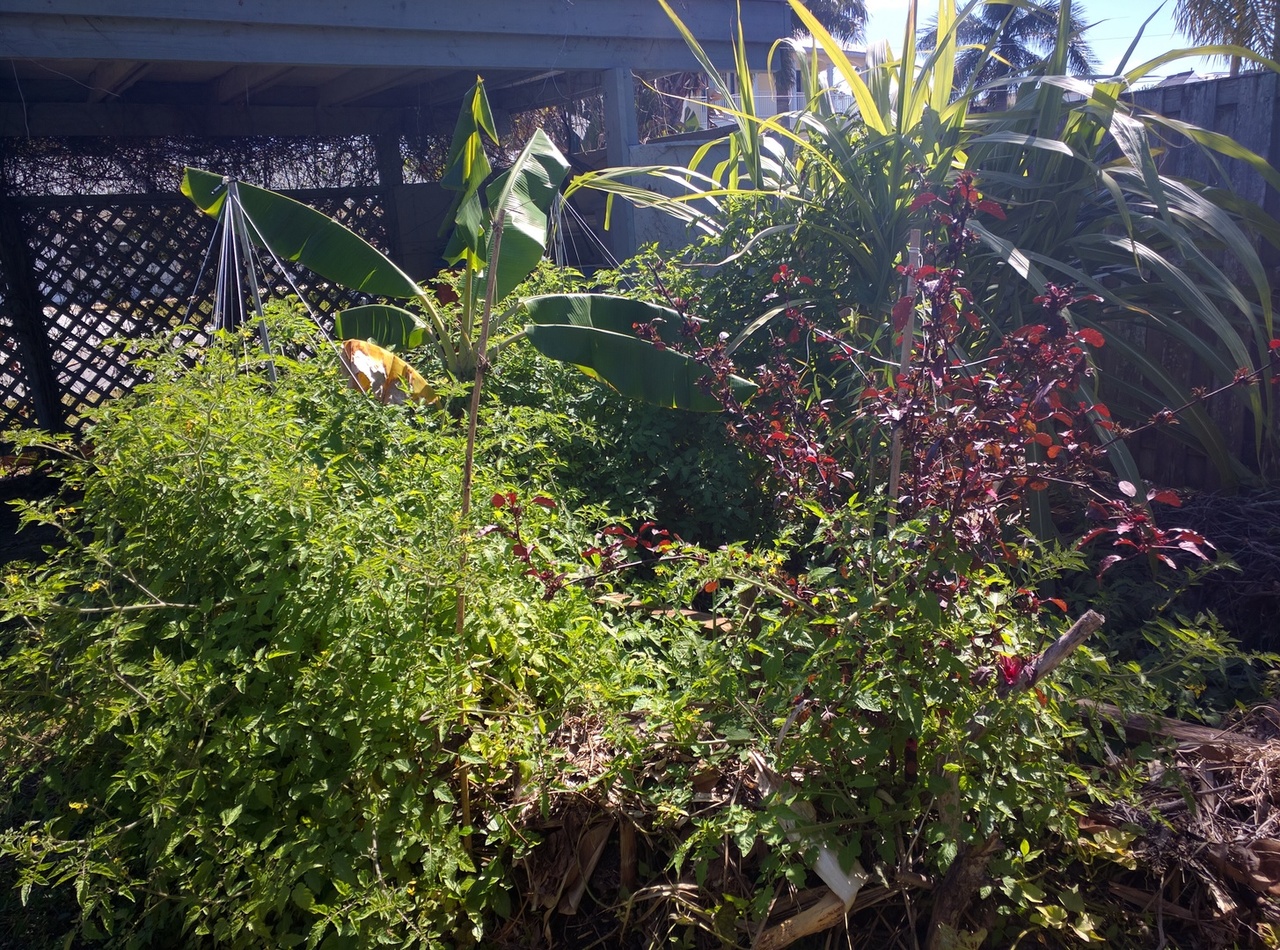

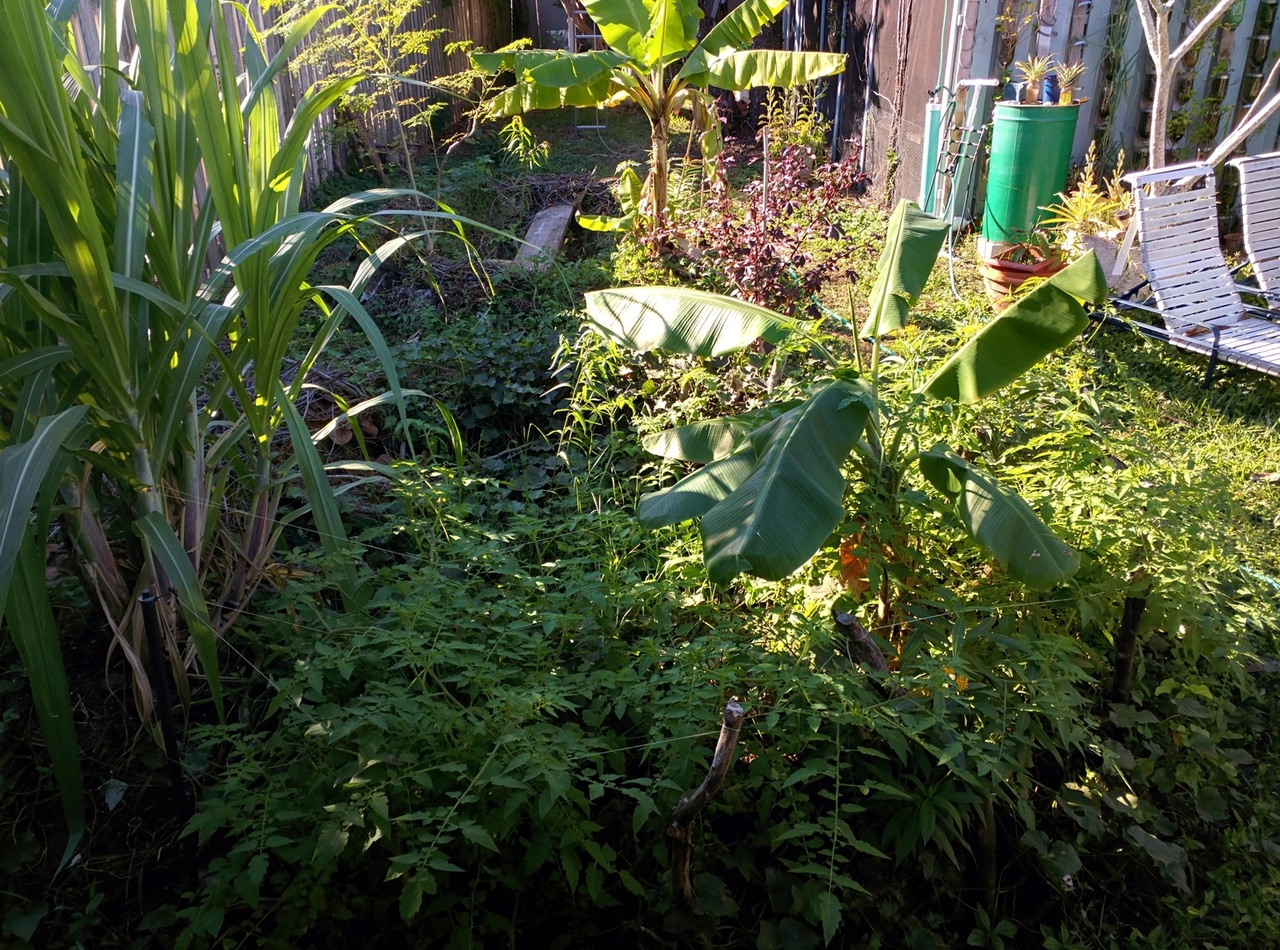

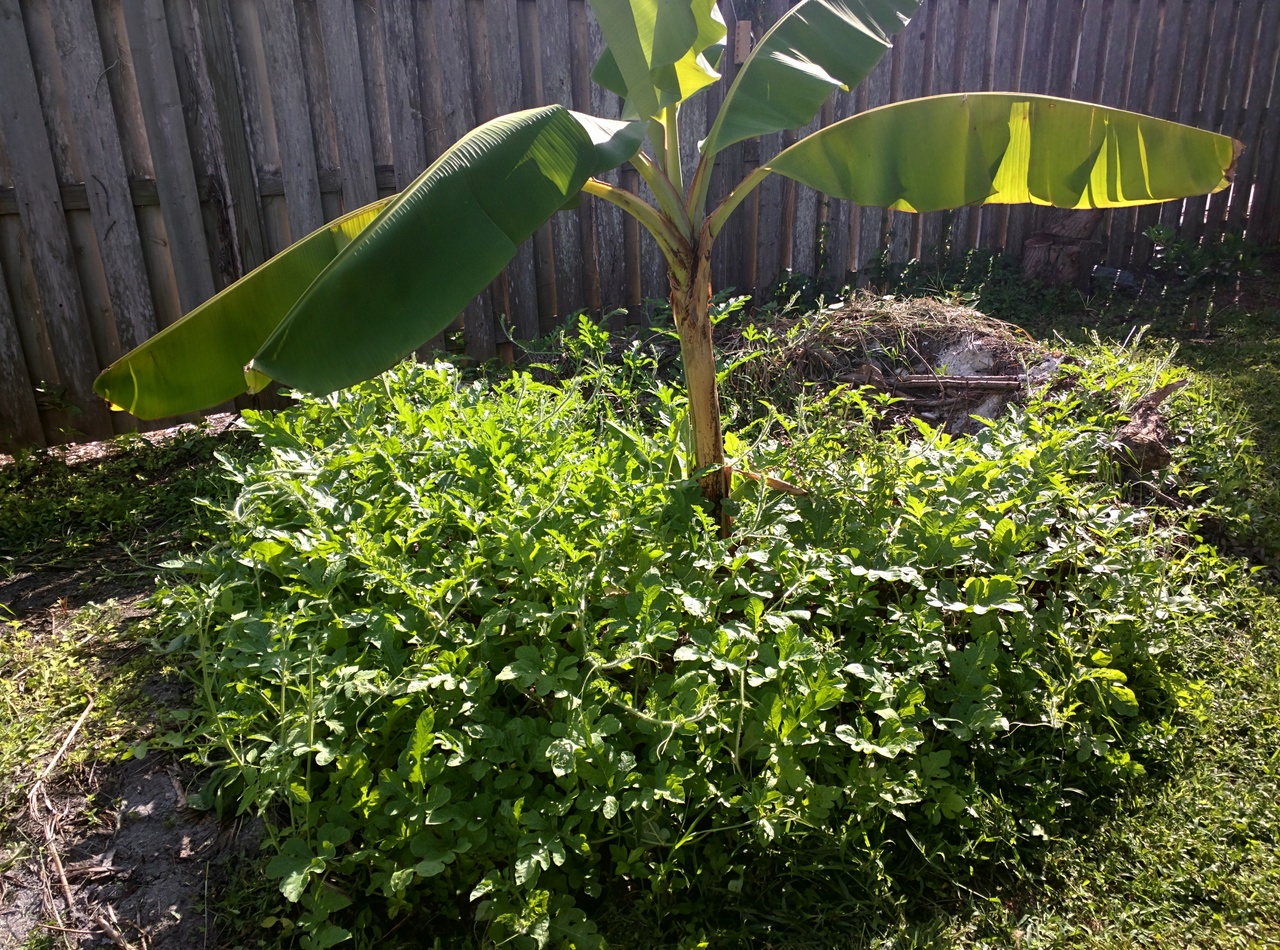

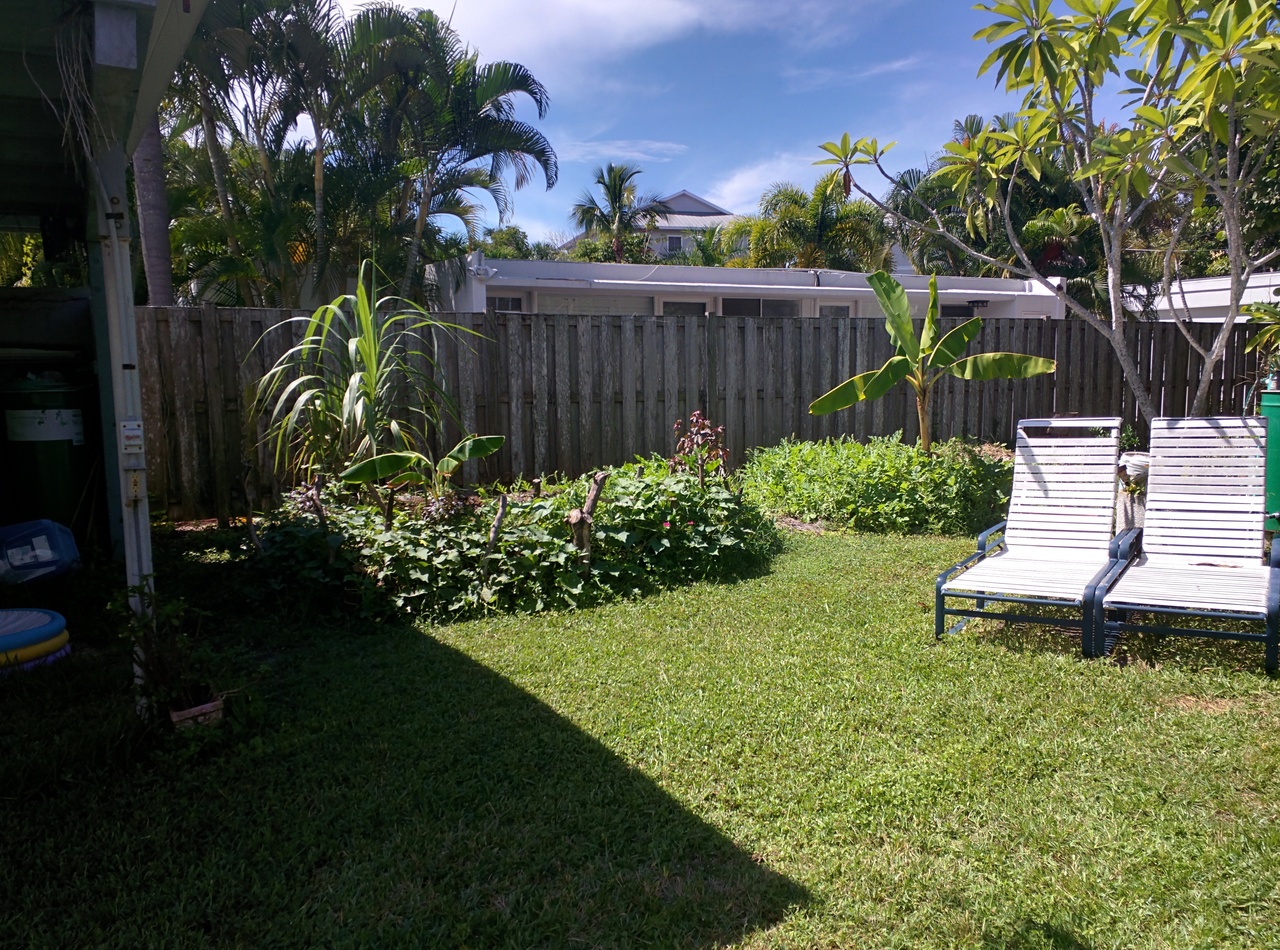

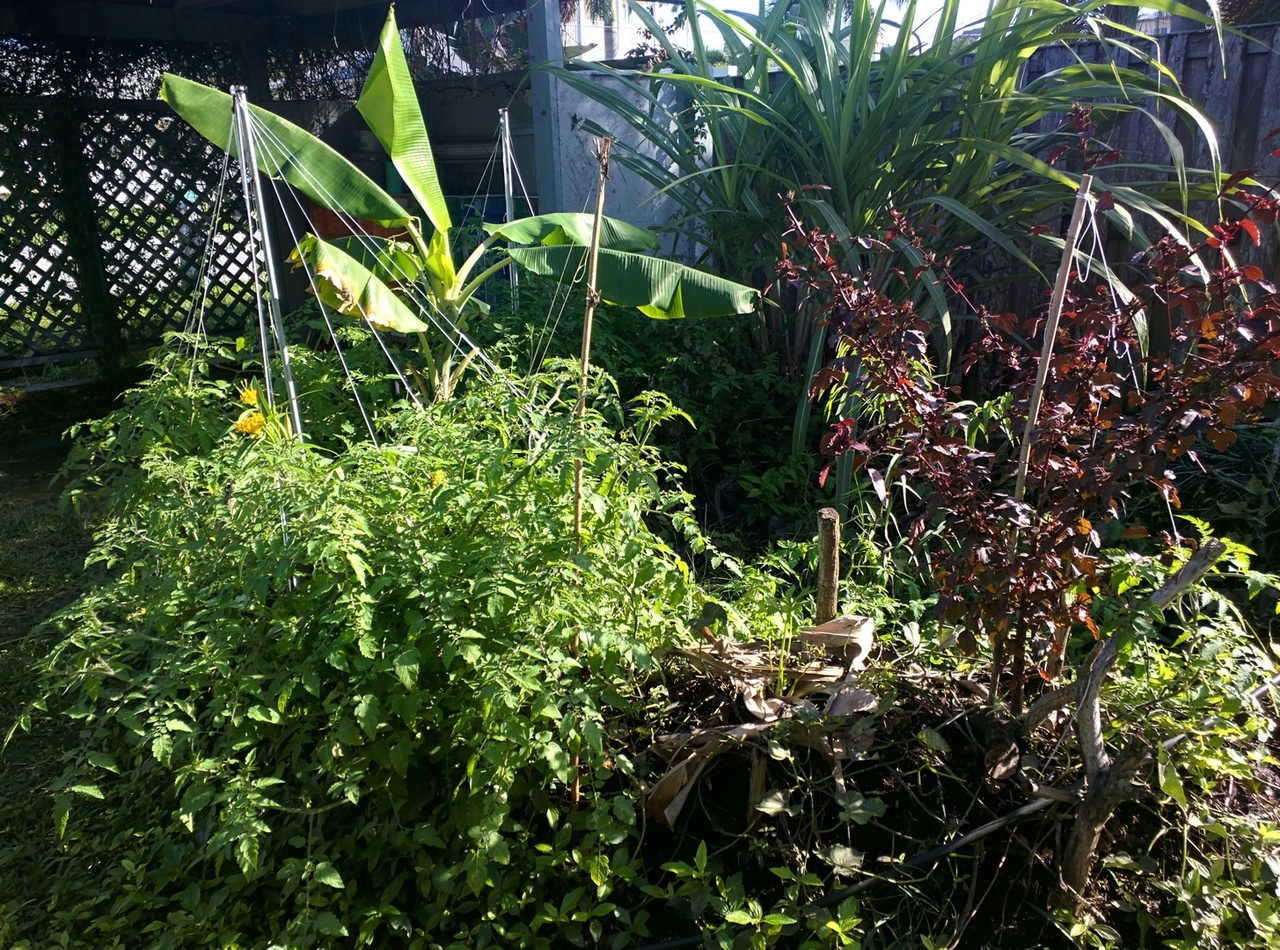

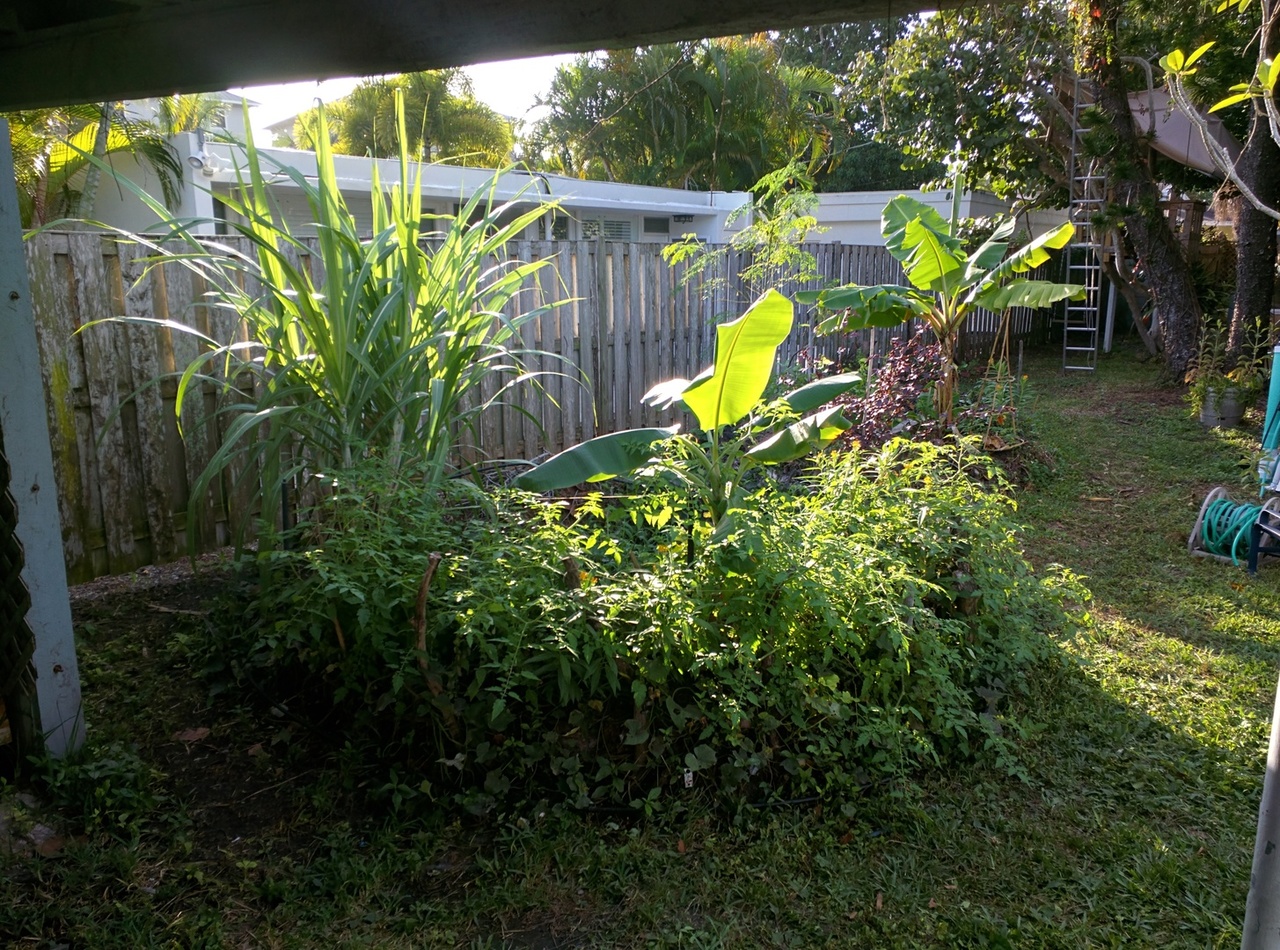

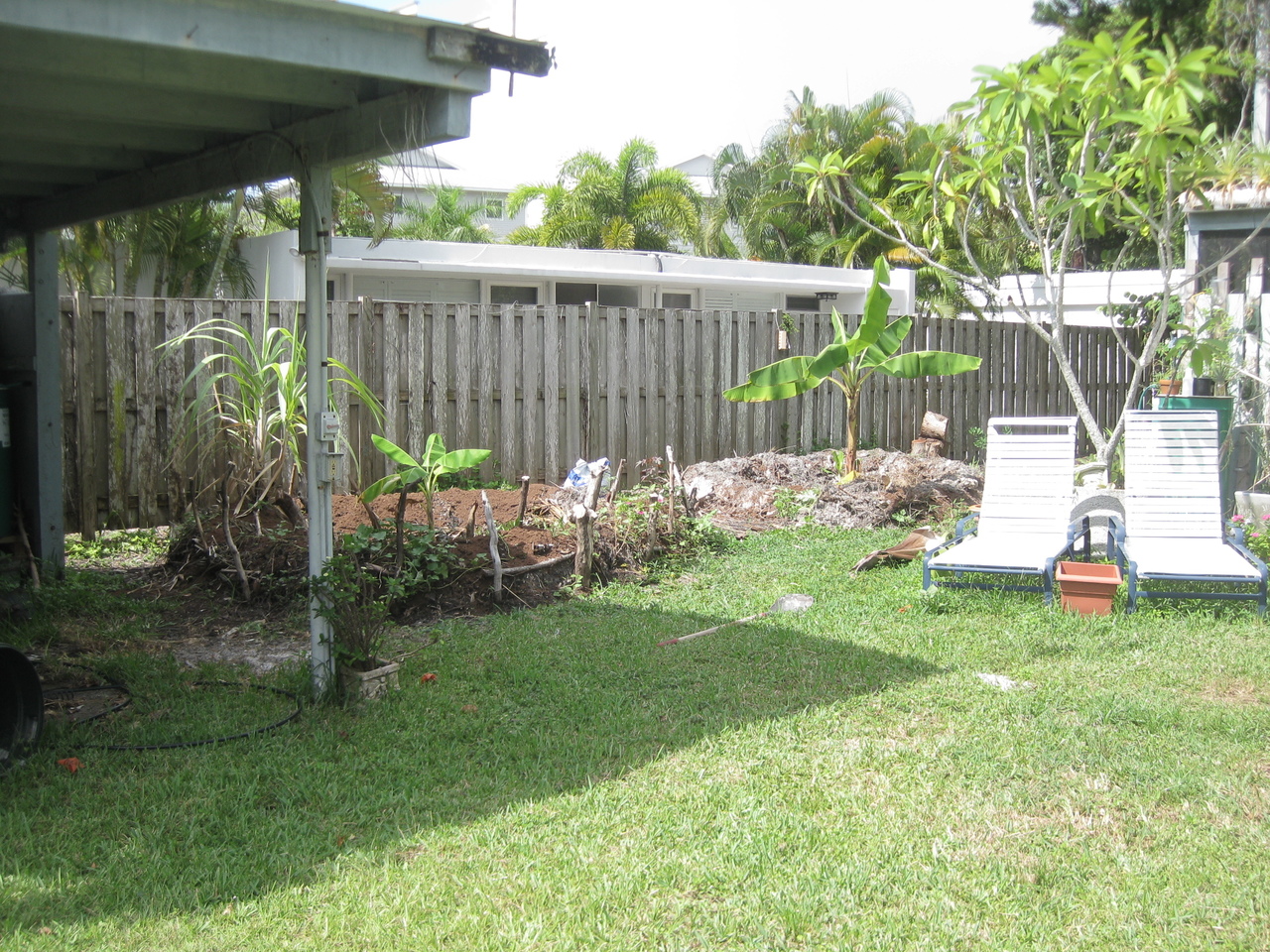

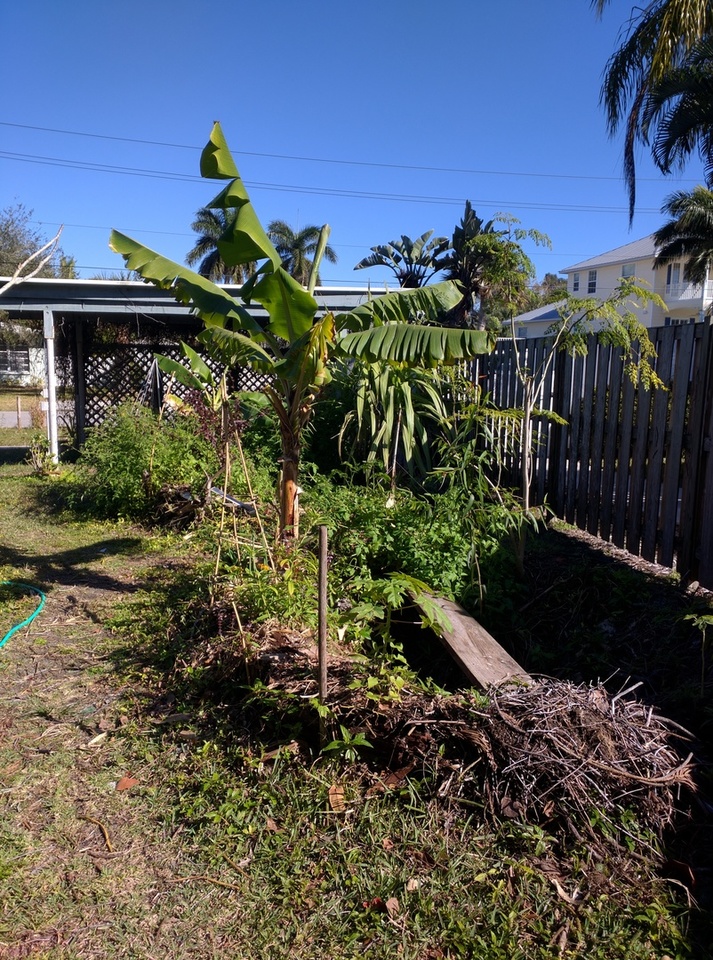

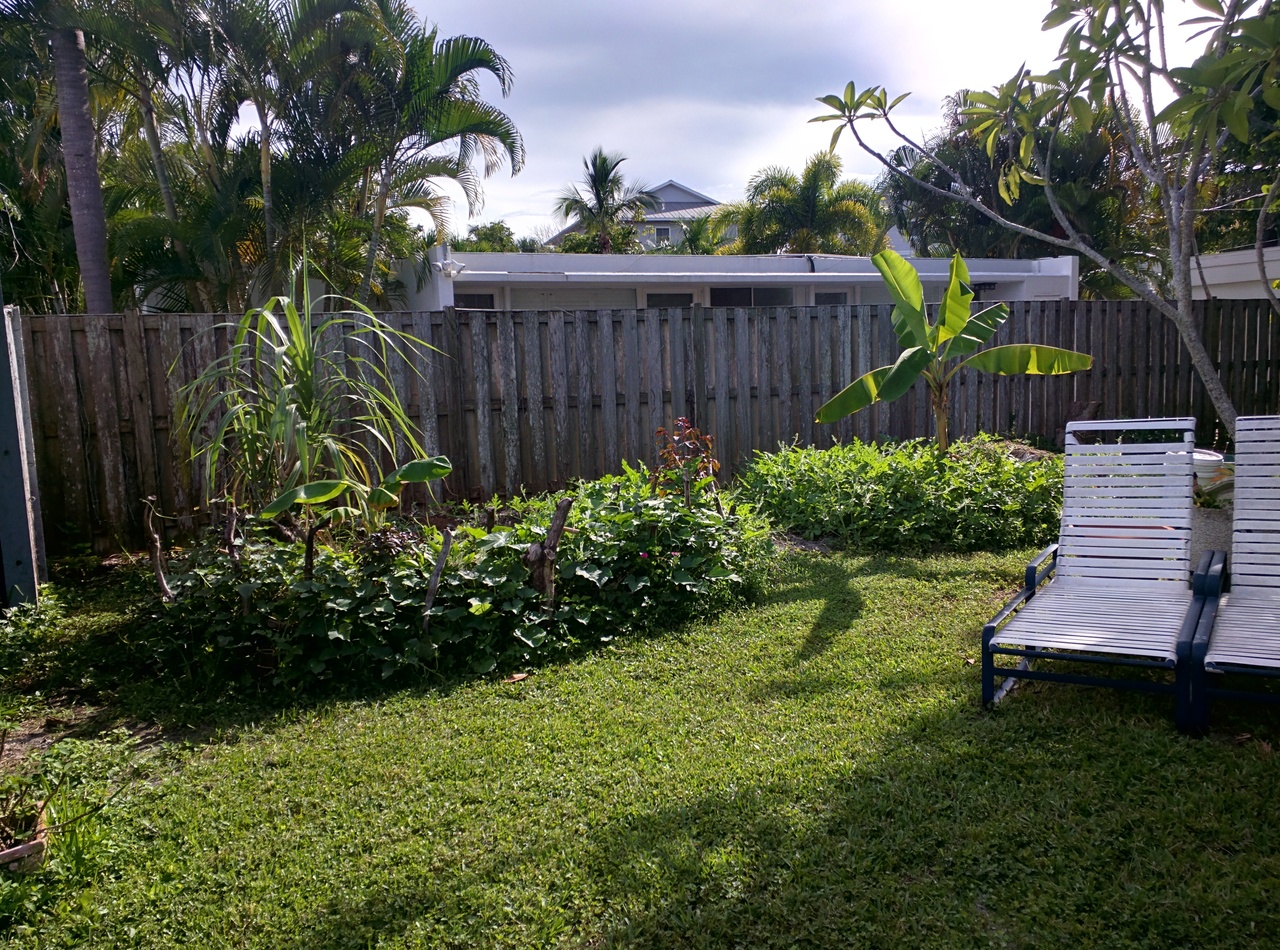

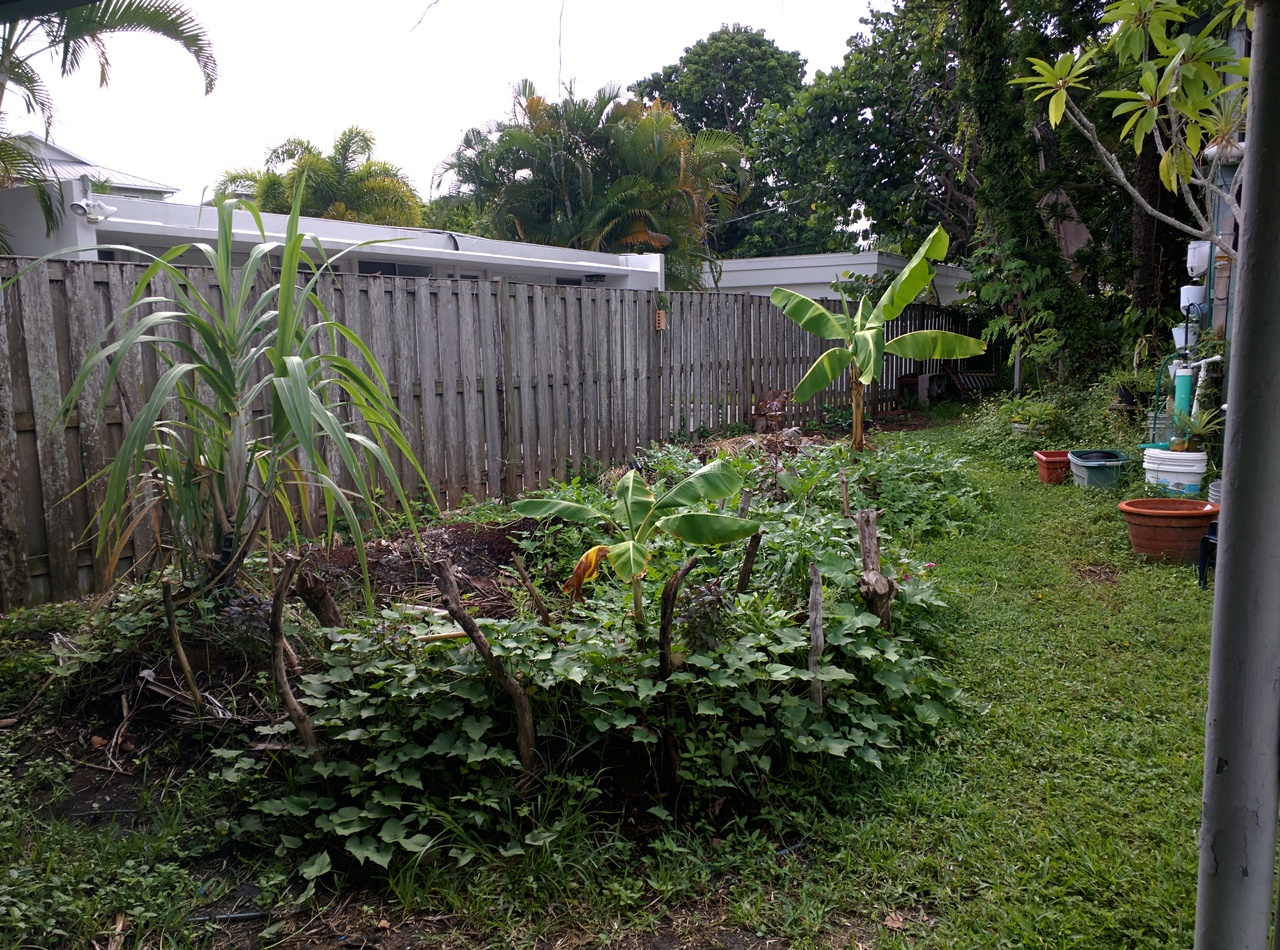

My First Hugelkultur Bed

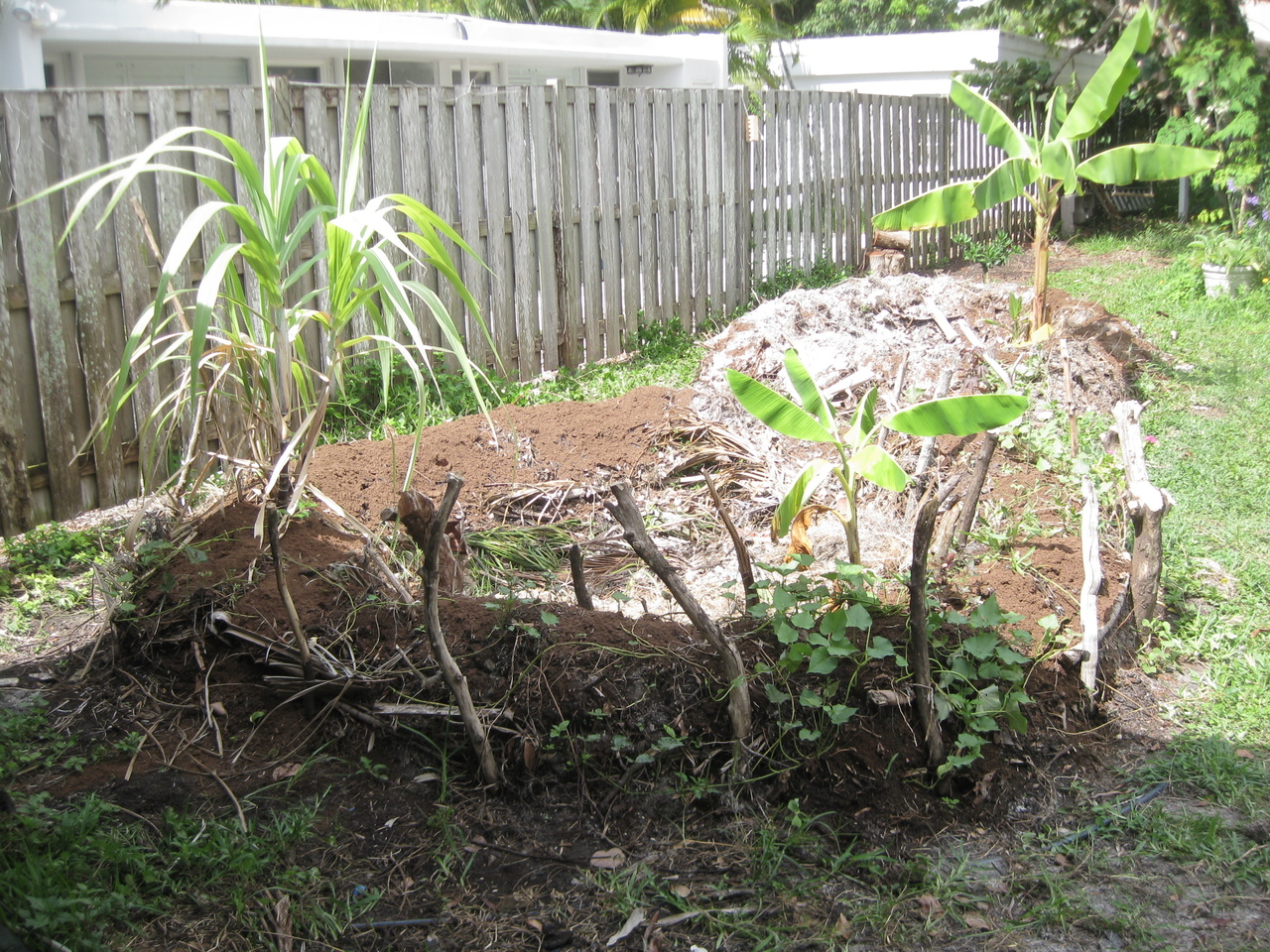

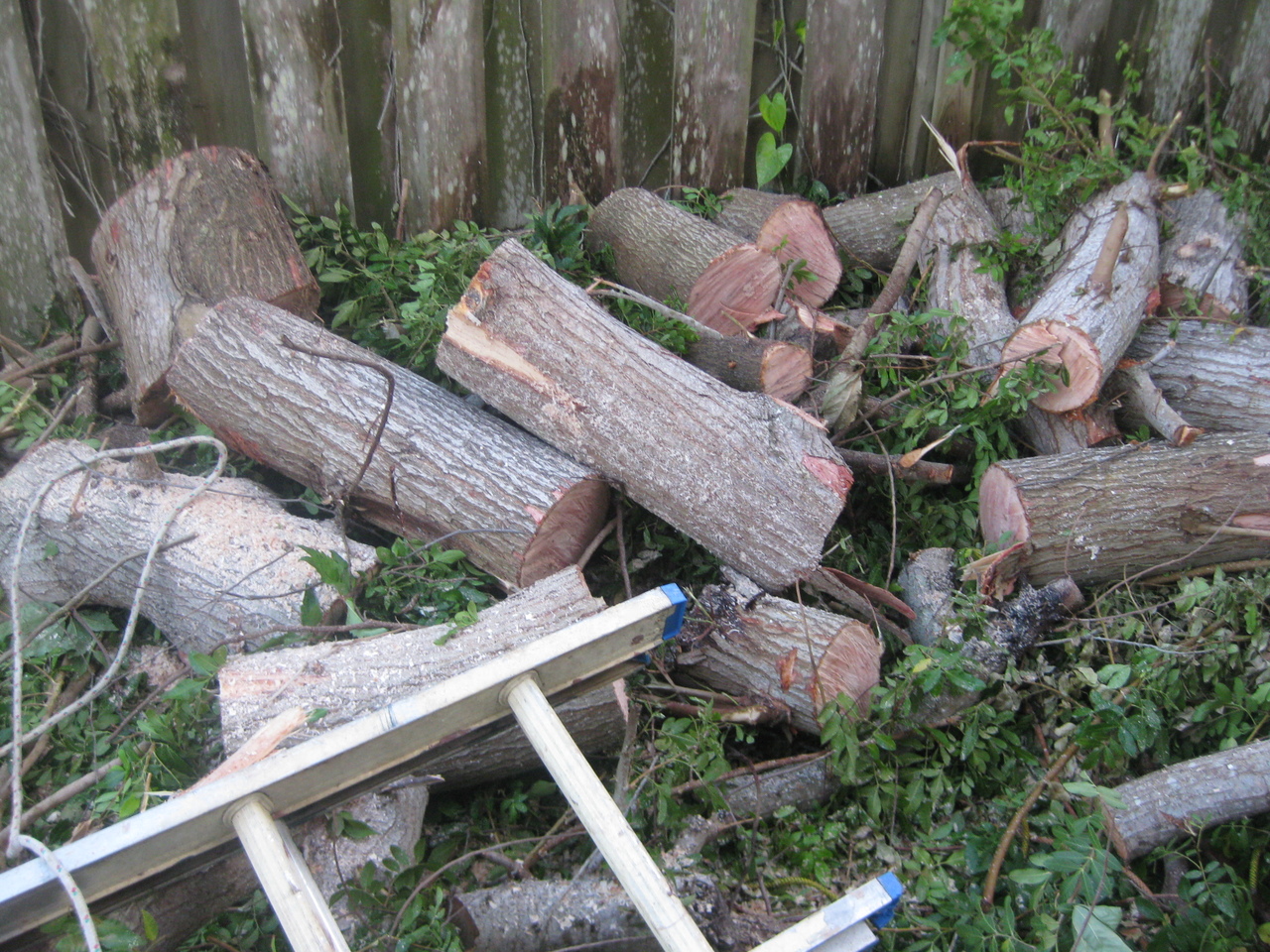

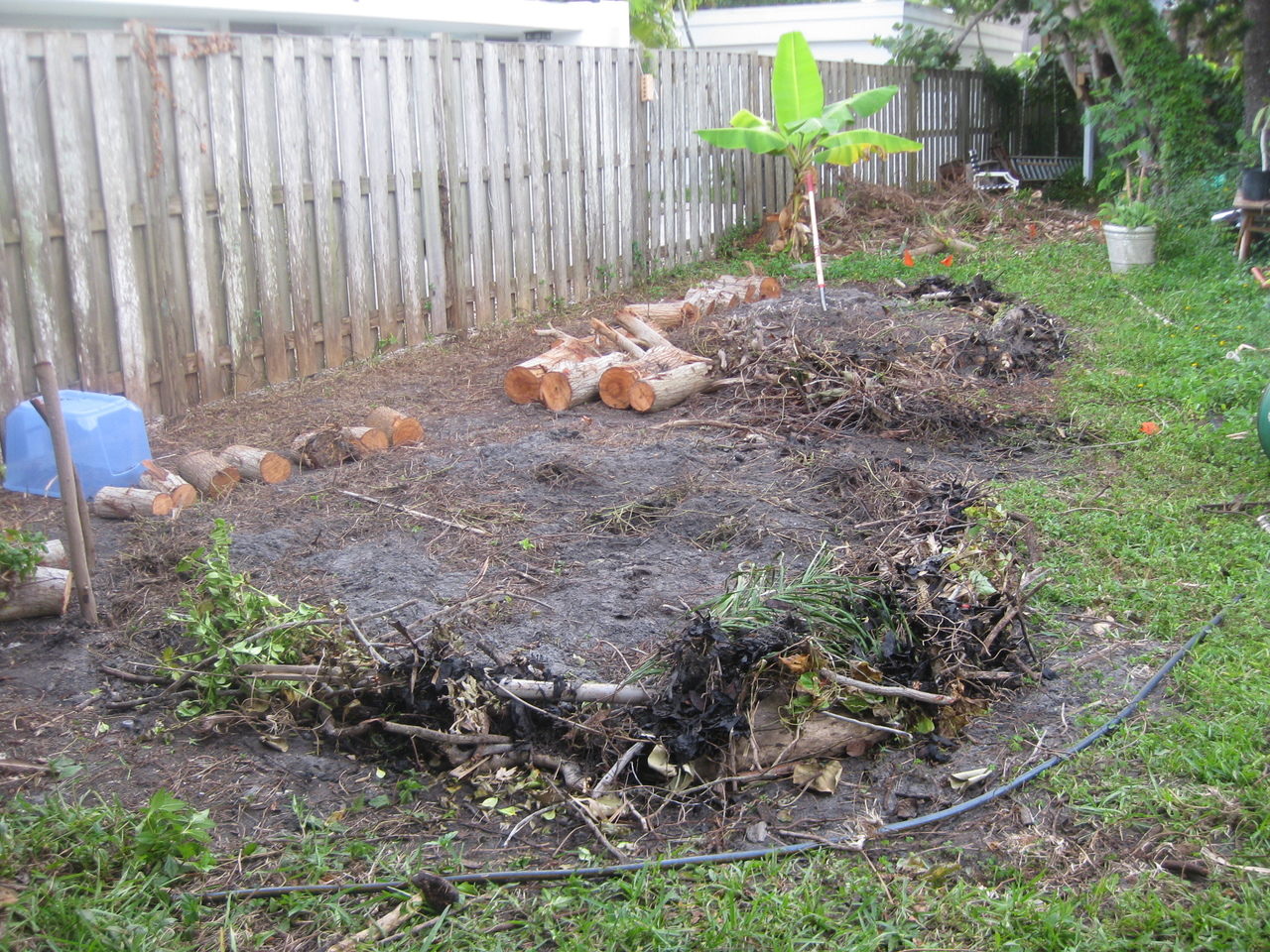

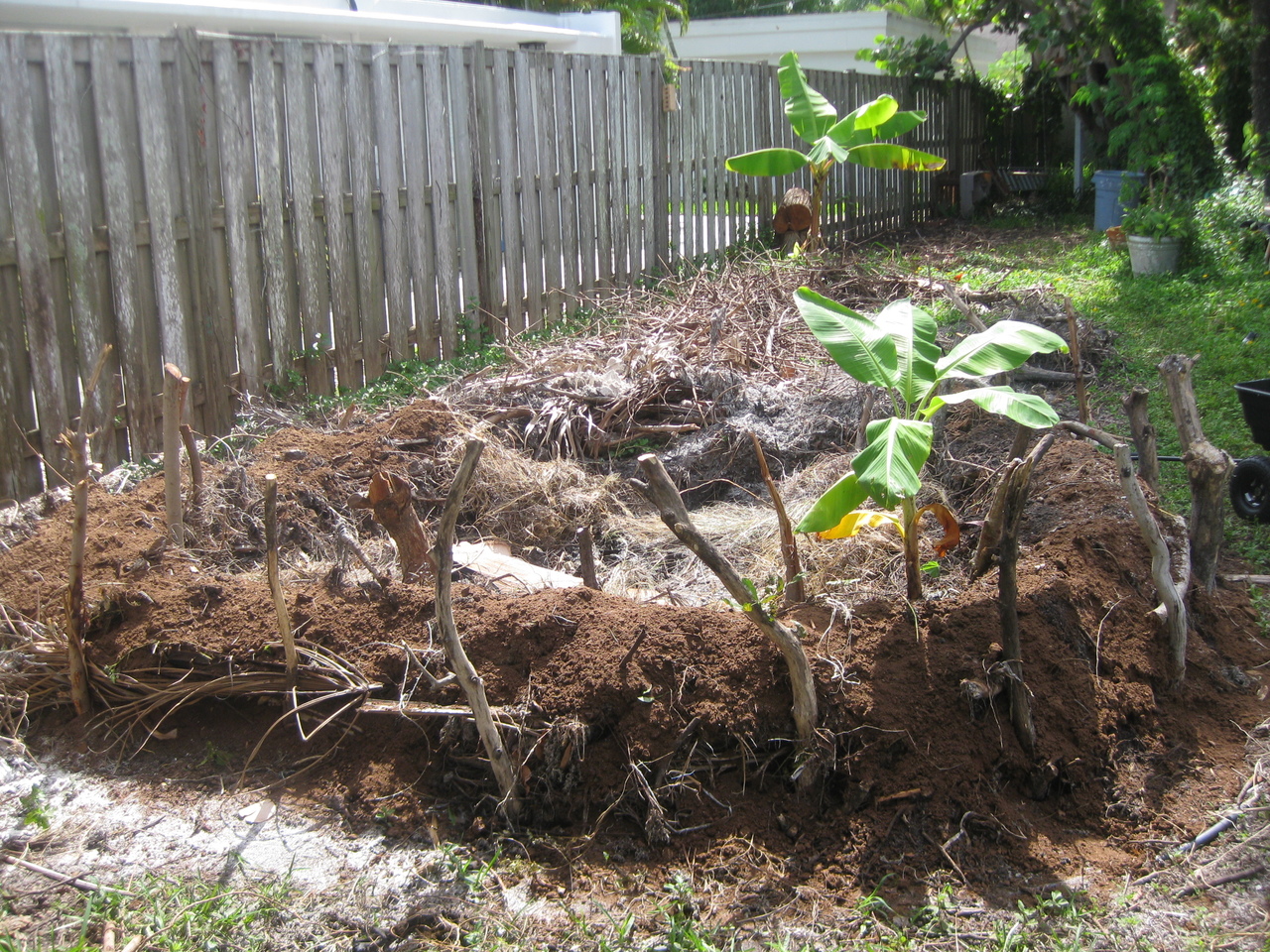

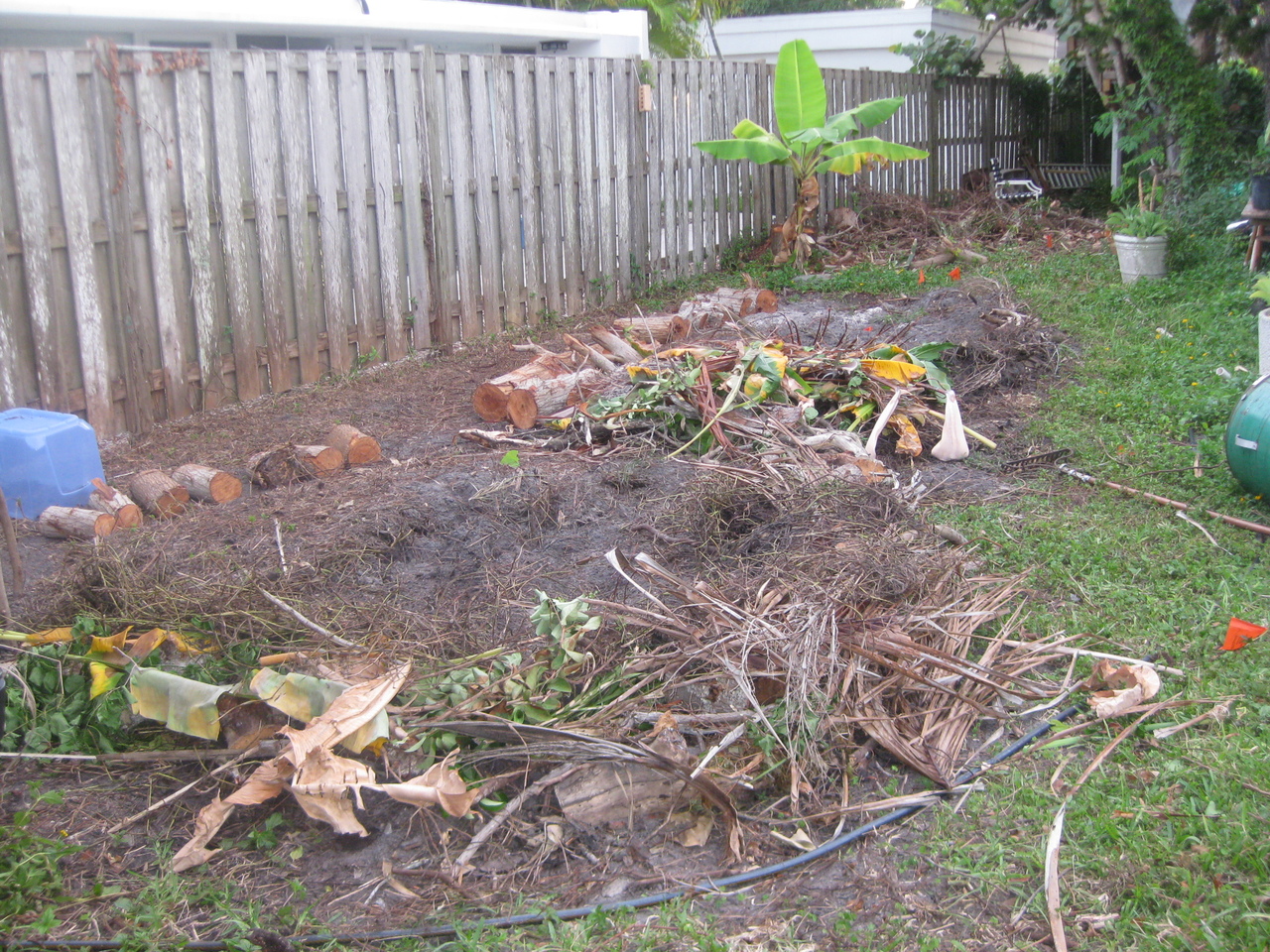

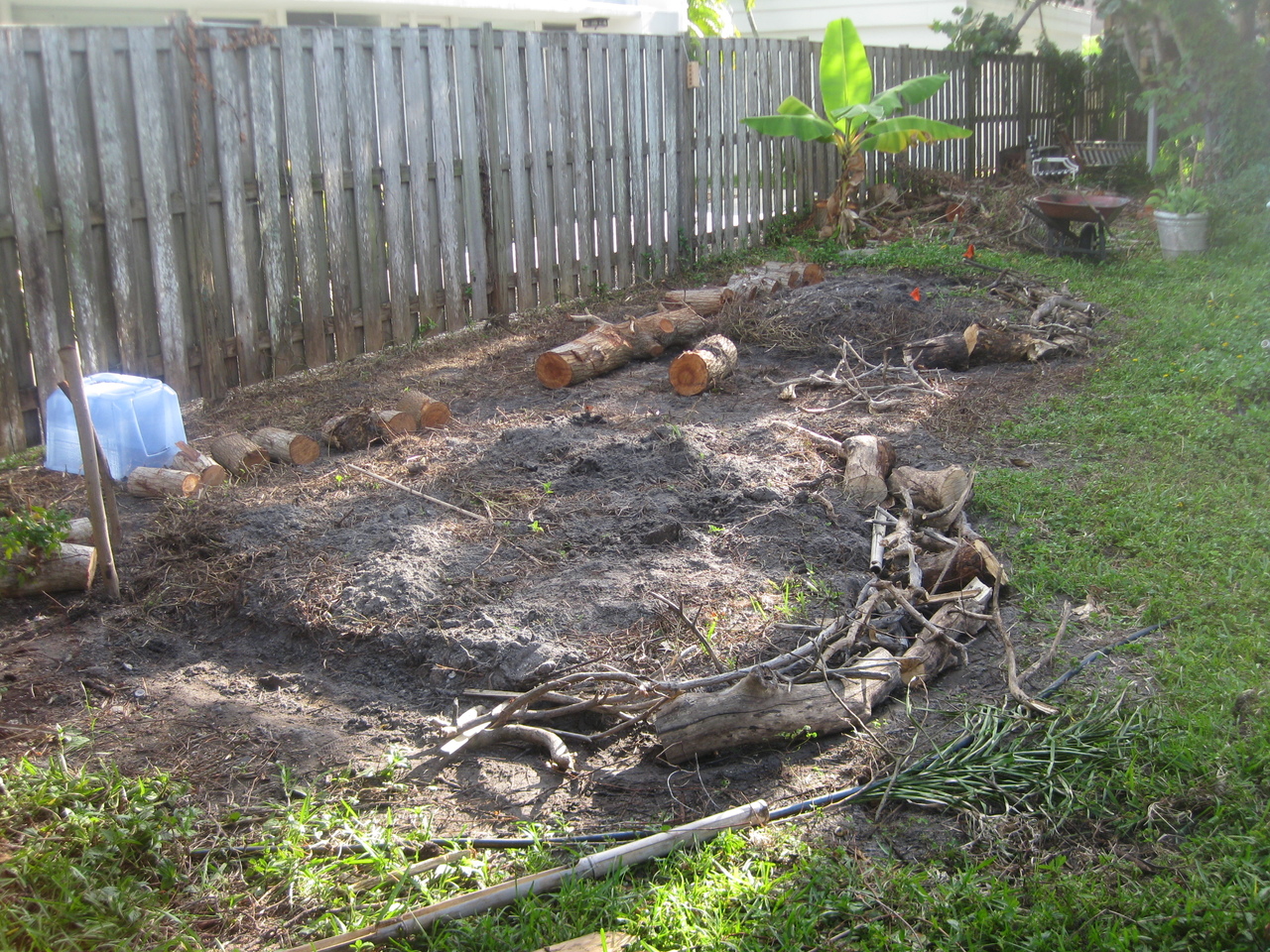

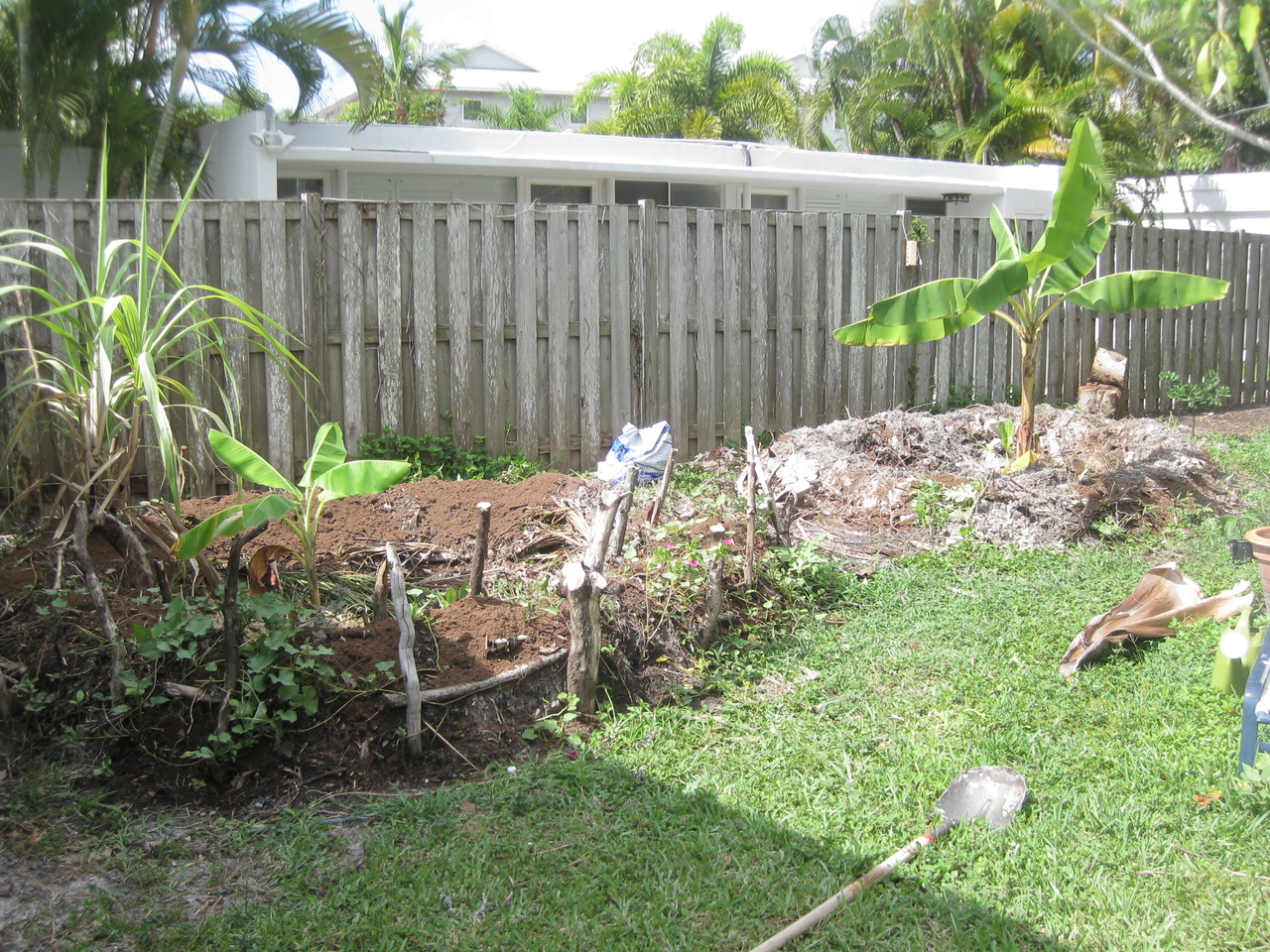

Hugelkultur. What is this word?  Simple. Buried wood – namely. I buried wood first and then a bunch of other stuff:  On garbage day, I ran around collecting random organic material: leaves, trimmings (grass, trees, bushes, fronds, etc..).

Then I went to the beach and collected mounds of seaweed.  I brought over my kitchen compost and began layering all this material.  I made a donut and used dirt from the center in between layers. Last I topped it off with some more dirt and peat moss.   Looks like a donut.

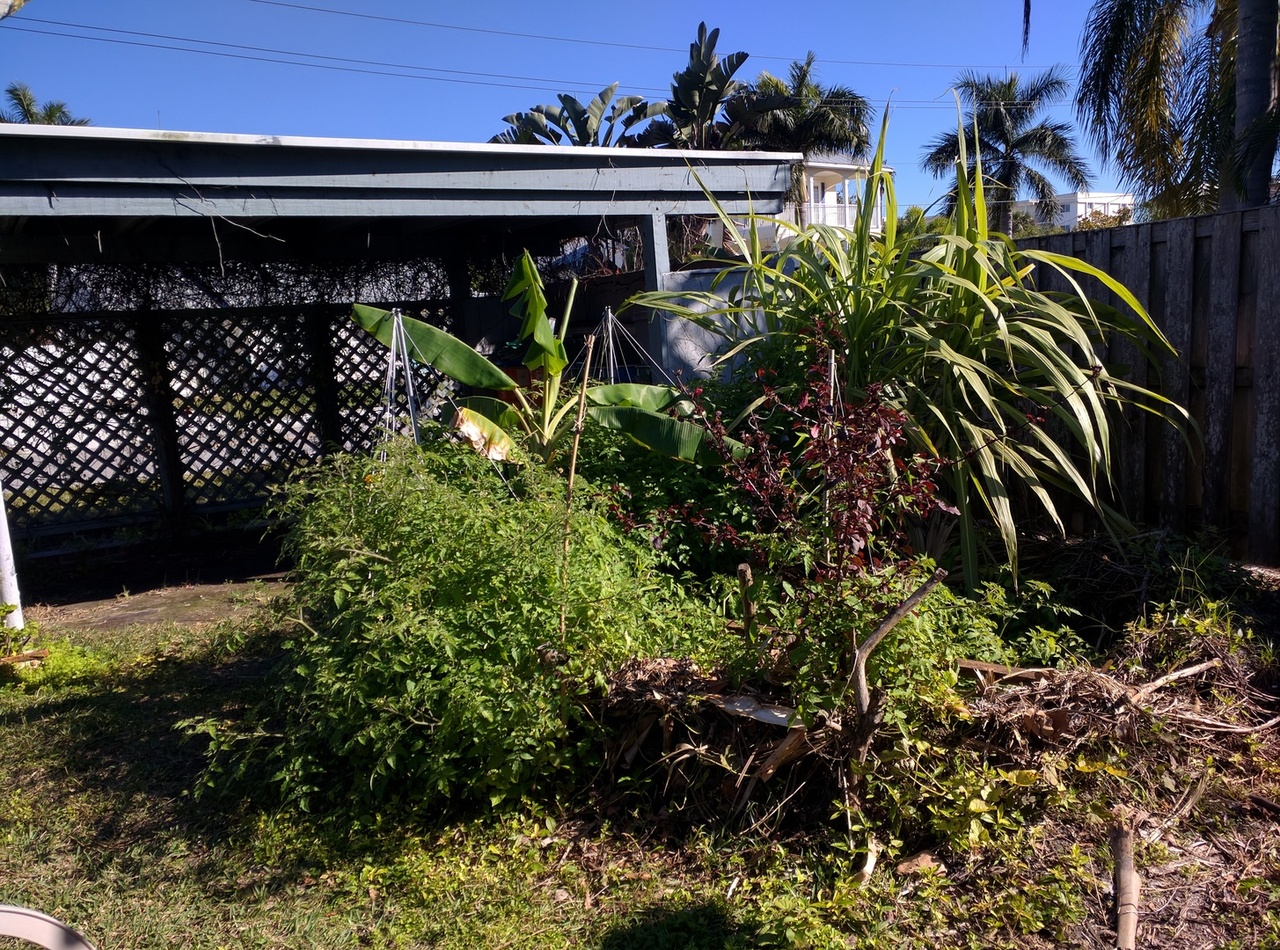

I’m gardening in the layered mound and use the middle as a compost pit for dog doodie and random garden/yard trimmings.

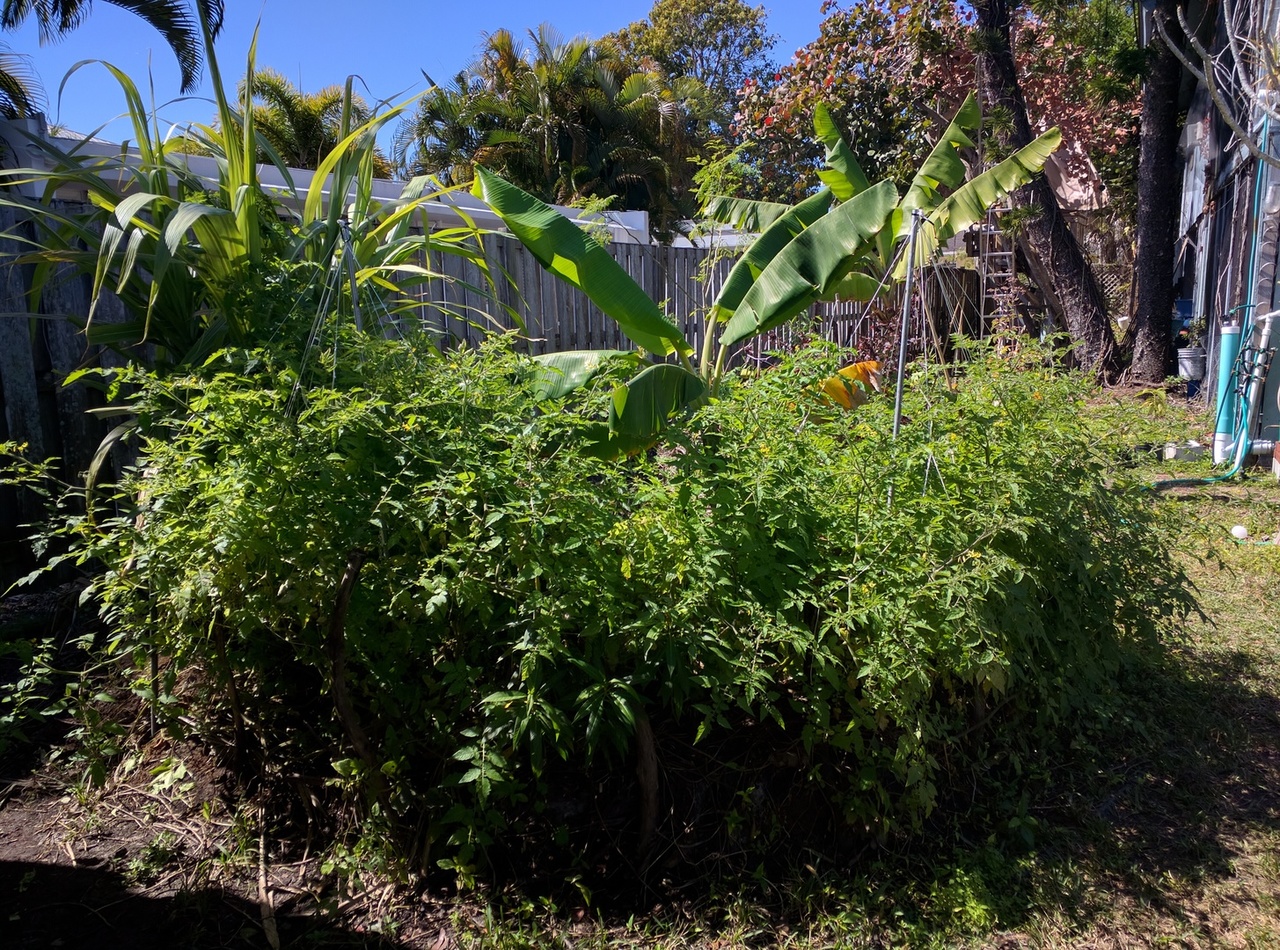

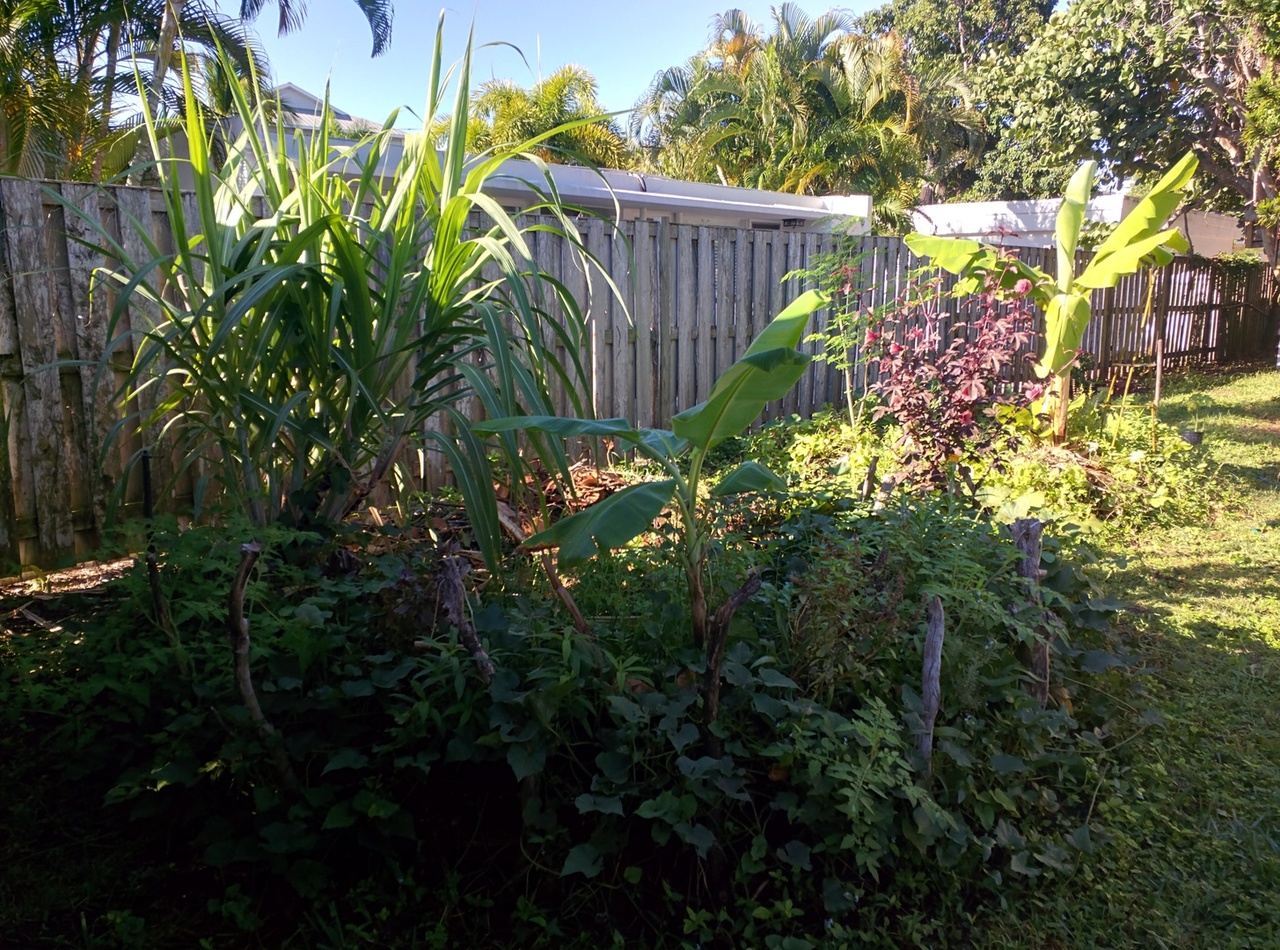

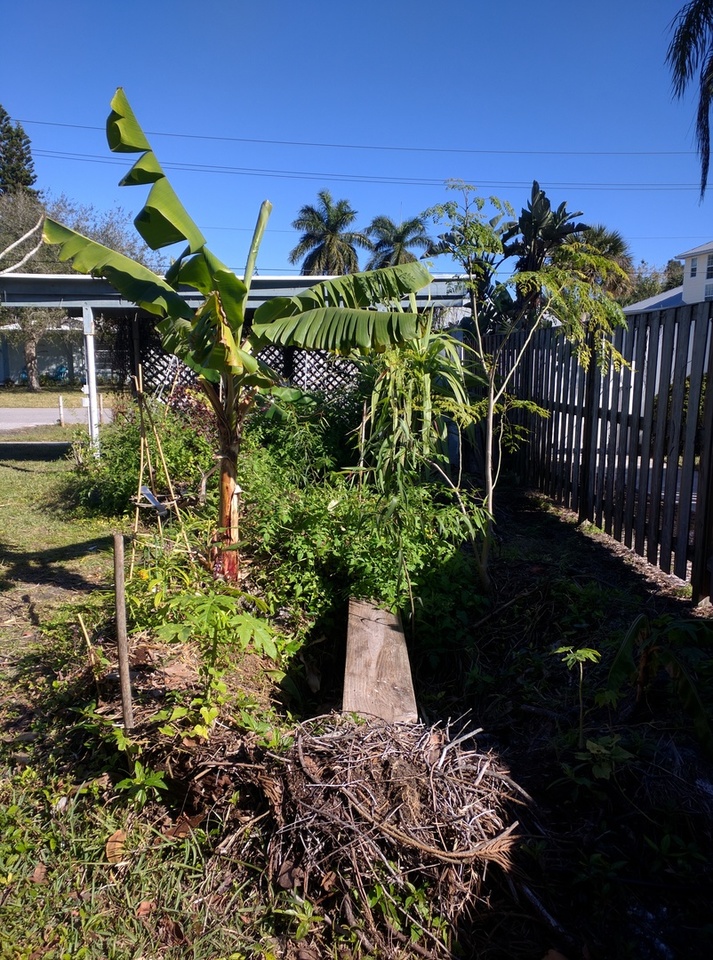

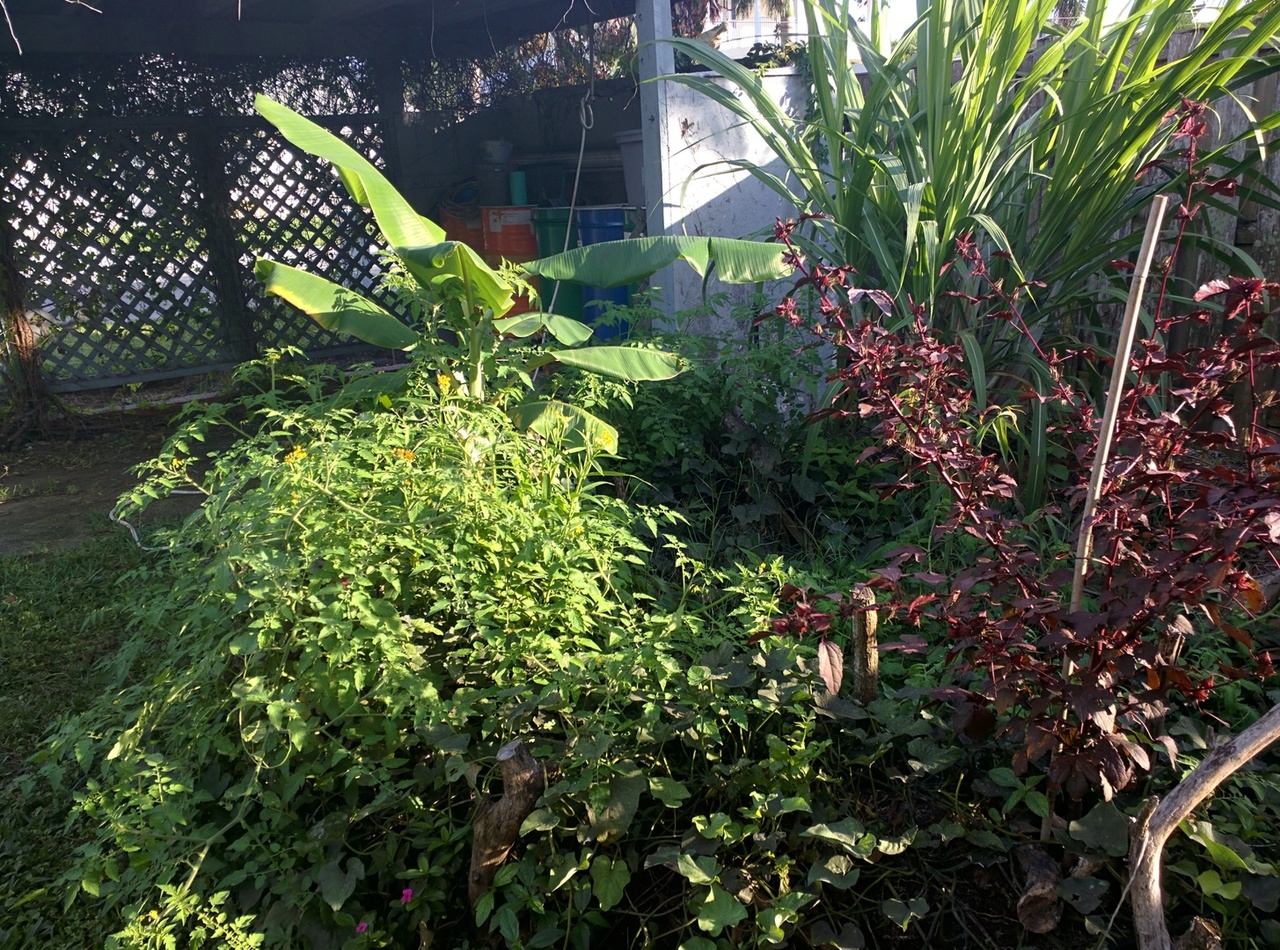

What have been growing?

On the beds

  • Banana plants, short and tall (cavendish)
  • Moringa
  • Papaya (volunteered)
  • Sugercane
  • Sweet Potato
  • Oxilis
  • Crepis Japonica

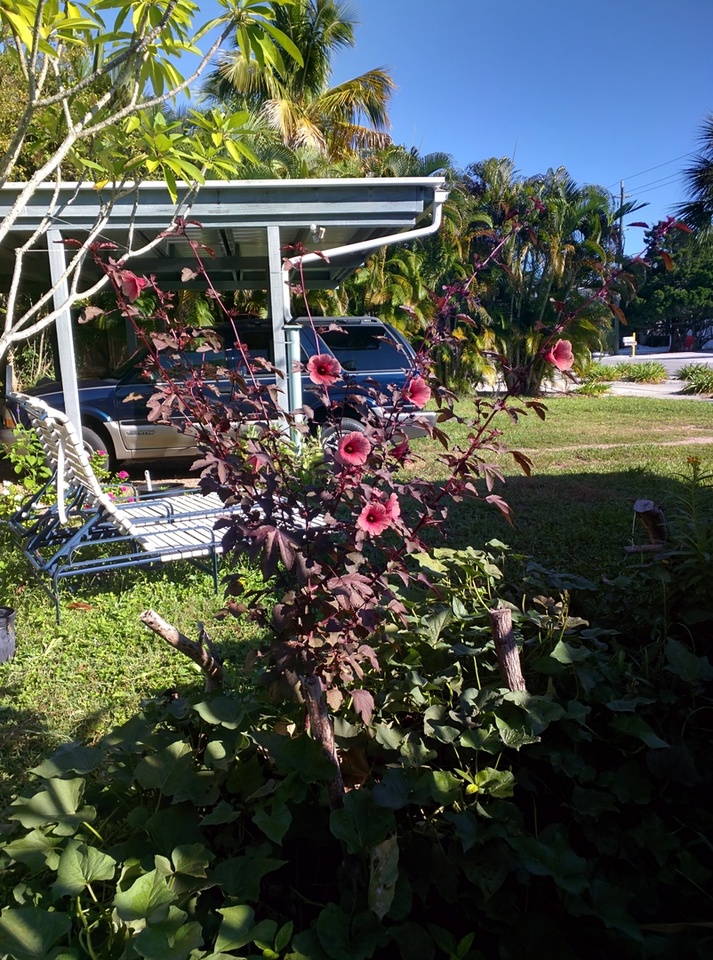

  • Cranberry Hibiscus
  • Milkweed

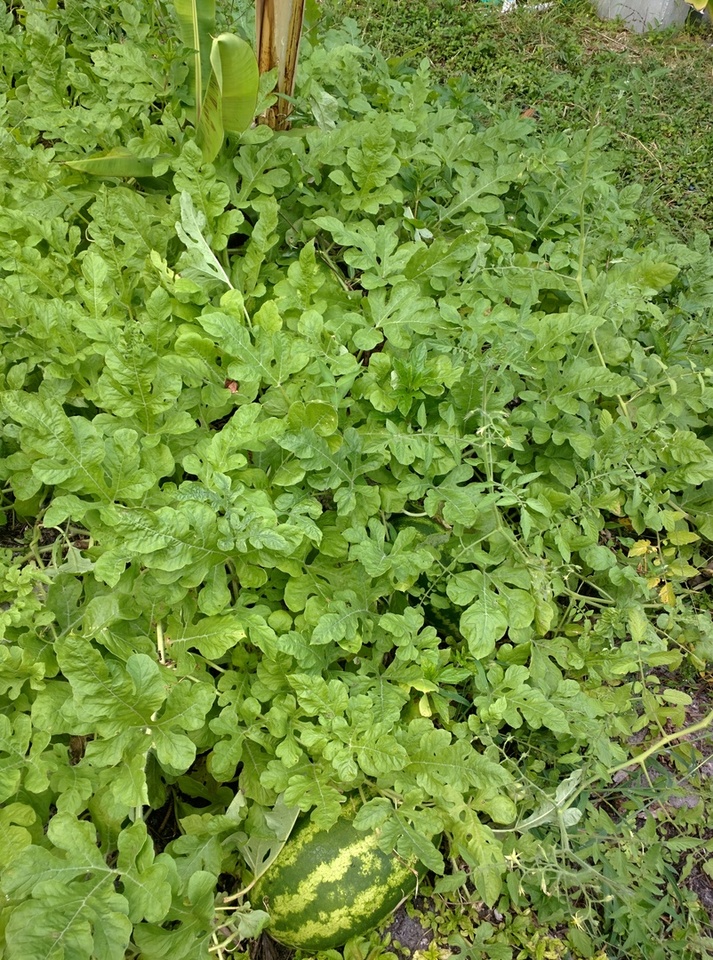

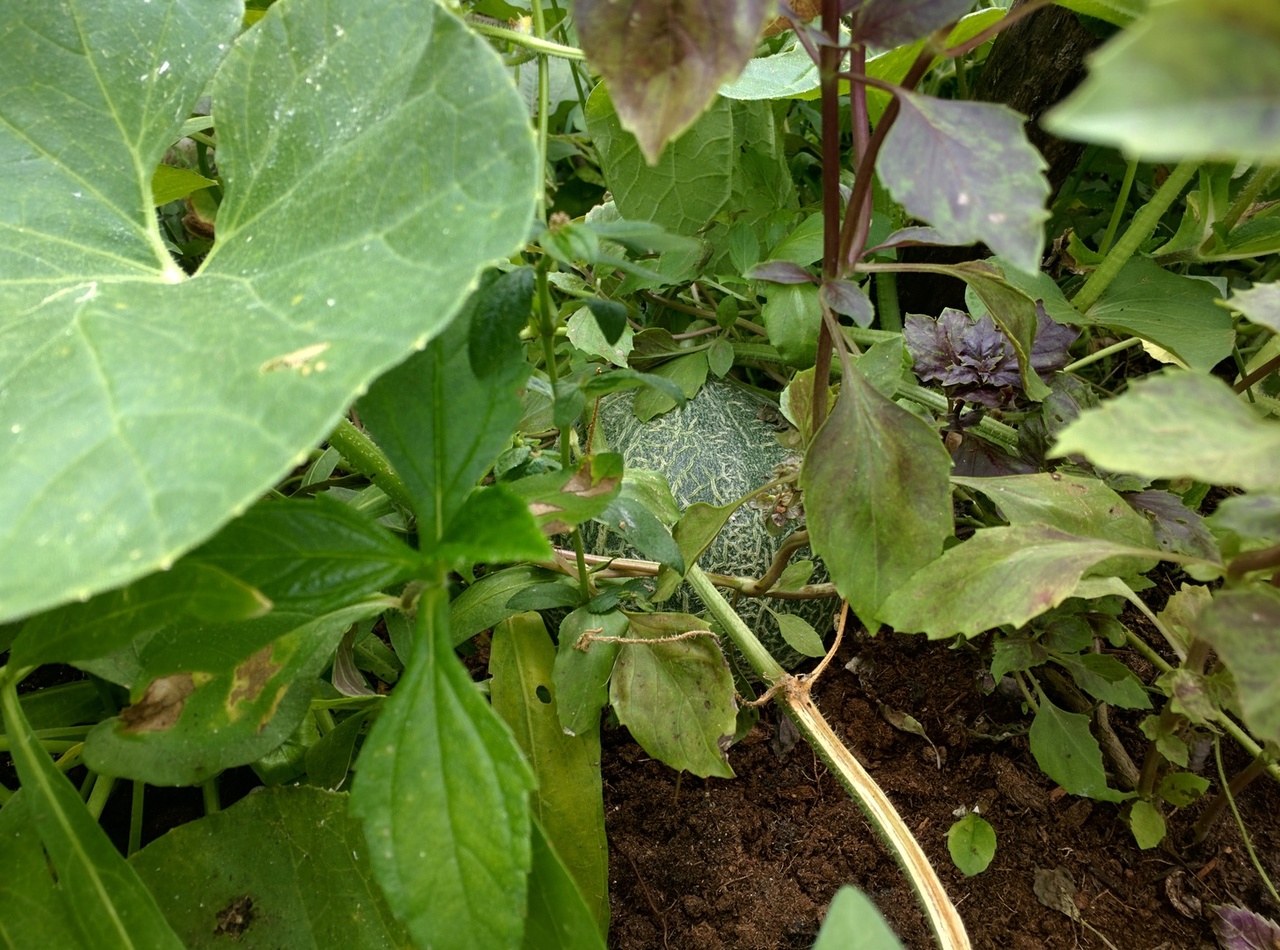

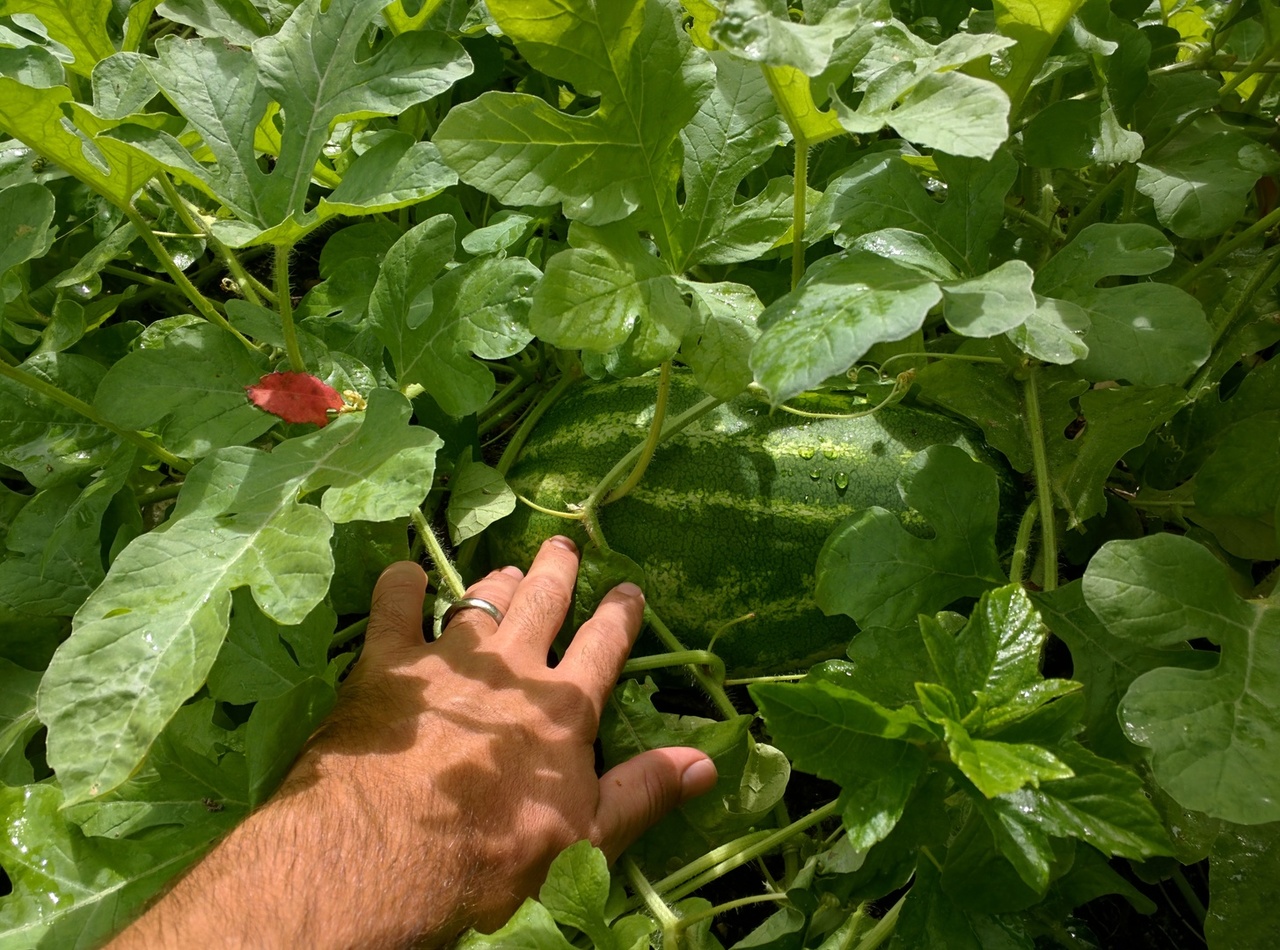

  • Watermelon
  • Sugar cane
  • Lemon grass
  • Tomatos on vine (unknown variety)
  • Florida Everglades tomatoes
  • Onions

In the middle

Carolina willow for medicine (looking for white).  I’ve had good luck alleviating headaches with willow east of I-75. However, I haven’t been able to reproduce results locally. It’s a young tree, which might be the problem. Time will tell.

More updates later.
